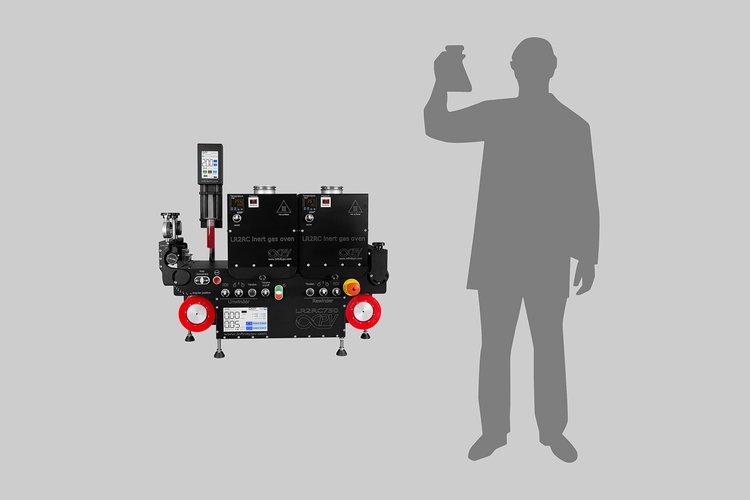

LR2RC750 Battery Coater Preconfigured Setup For You

The Coater for Battery Electrode Coatings

The LR2RC750 Battery Coater is the ideal coating machine for scaling up to roll-to-roll processing of battery electrode materials or for testing and optimizing battery electrode slurries. Built on the Laboratory Roll-to-Roll Coater platform, the web speed range and drying section enable processing not only on a small scale but also of up to 100 meters of foil.

What’s Included:

• LR2RC750 Platform: Featuring anodized aluminum rollers, web tension control, automatic 3-inch core spindles, touch screen interface, and easy-to-use operation buttons.

• Advanced Mounting System: Manual adjustment with digital micrometers units for two-point head to substrate distance readout.

• Jumbo Syringe Pump: Provides precise and consistent ink delivery, ideal for research applications.

• 115 mm Stainless Slot-die Head (100 mm Working Width) incl. Shim Kit

• Fitting Kits: High viscosity versions included.

• Inert Gas Ovens: For effective drying and curing at a lab scale, enabling quick setup and adjustments to meet your specific needs.

• Adjustable Nip Roller: Tailor your setup for various substrate handling requirements.

Key Features

• Quick Set-Up and Easy Operation

• Modular Design with interchangeable components

• Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.

• CE Certified - CSA/UL Compliant: Meets international safety standards.

Technical Specifications

• Operating Power: Single phase (240VAC)

• Drying/Curing Length: 50 cm

• Web Width: Up to 200 mm

• Web Speed: 0.05-2.8 m/min (forward and reverse)

Why Choose the LR2RC Battery Coater 750?

• Compact and Scalable: Perfect for small laboratory spaces, gloveboxes, or fume hoods without needing additional infrastructure.

• Integrated Solution: Includes essential components for R2R processing of printed batteries.

• Versatile Setup: Enables fabrication of short or long stretches of substrate with improved material utilization.

• Customizable and Modular: With modular components, the LR2RC750 can be easily adapted to fit your specific requirements, making it the ideal platform for diverse applications such as batteries, printed solar cells, LEDs, sensors, and more.
