LR2RC1000 Battery Coater Preconfigured Setup For You

Accelerate Battery Innovation Today

The LR2RC1000 Battery Coater not only enhances your ability to experiment and refine printed batteries but also provides a pathway to scale your research into potential commercial applications. Investing in these advanced features can significantly improve your research efficiency and outcomes.

What’s Included:

• LR2RC1000 Wide Platform: Featuring anodized aluminum rollers, web tension control, automatic 3-inch core spindles, touch screen interface, and easy-to-use operation buttons.

• Advanced Mounting System: Manual adjustment with digital micrometers units for two-point head to substrate distance readout.

• Mammoth Syringe Pump: Provides precise and consistent ink delivery, ideal for research applications.

• 305 mm Stainless Slot-die Head (280 mm Working Width) incl. Shim Kit

• Fitting Kits: High viscosity versions included.

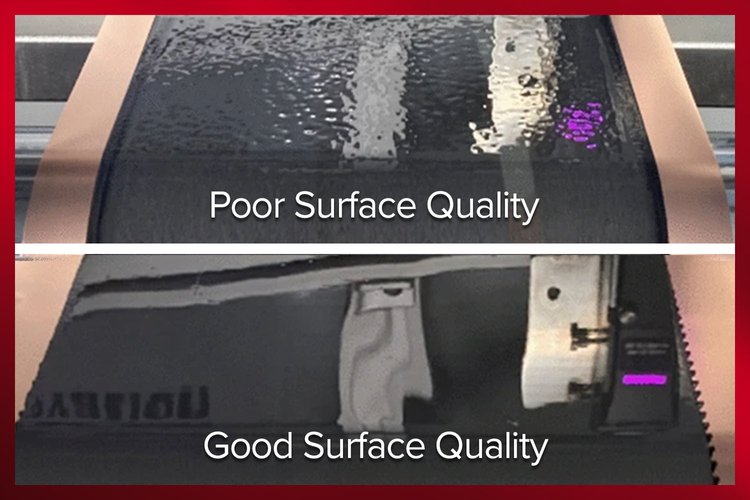

• Corona Surface Treater: Enables effective surface treatment of substrates.

• Edge Guide: For high precision alignment of the substrate.

• Inert Gas Oven and Double Inert Gas Oven: For effective drying and curing at a lab scale, enabling quick setup and adjustments to meet your specific needs.

• Adjustable Nip Roller: Tailor your setup for various substrate handling requirements.

Key Features

• Compact Size: Fits in laboratories without additional infrastructure.

• Customizable: Choose from a variety of lengths and widths, with numerous components available.

• Easy and Fast Exchangeable Modular Components: Includes printing and coating units, drying and curing systems, foil pretreatment, laminators, trimming knives, and more.

• Modular Drying/Curing System: Accommodates various drying and curing methods.

• Software Control Option: Advanced control options for precision and repeatability.

• Web Tension Control: Ensures consistent quality across runs.

• CE Certified - CSA/UL Compliant: Meets international safety standards.

Technical Specifications

• Operating Power: Three-phase (400VAC)

• Drying/Curing Length: 1,25 m

• Web Width: Up to 305 mm

• Web Speed: 0.05-2.8 m/min (forward and reverse).

Why Choose the LR2RC Battery Coater 1000?

• Comprehensive Capabilities: The combination of advanced components (like slot-die head, Edge guide, pump, corona, and oven systems) allows you to conduct a wide range of experiments, from double sided slot-die coating to preprocessing of Cu foil, all in one system.

• Scalability: Designed for roll-to-roll (R2R) applications, this system facilitates the transition from lab-scale experiments to larger-scale production, crucial for commercial viability of printed batteries.

• Cost-Effective Research: By integrating multiple functions and reducing the need for additional equipment, this system can help lower overall research and development costs while maximizing efficiency.

• Customizable and Modular: With modular components, the setup can be easily adapted to fit your specific requirements, making it the ideal platform for diverse applications.
