Bioprinters

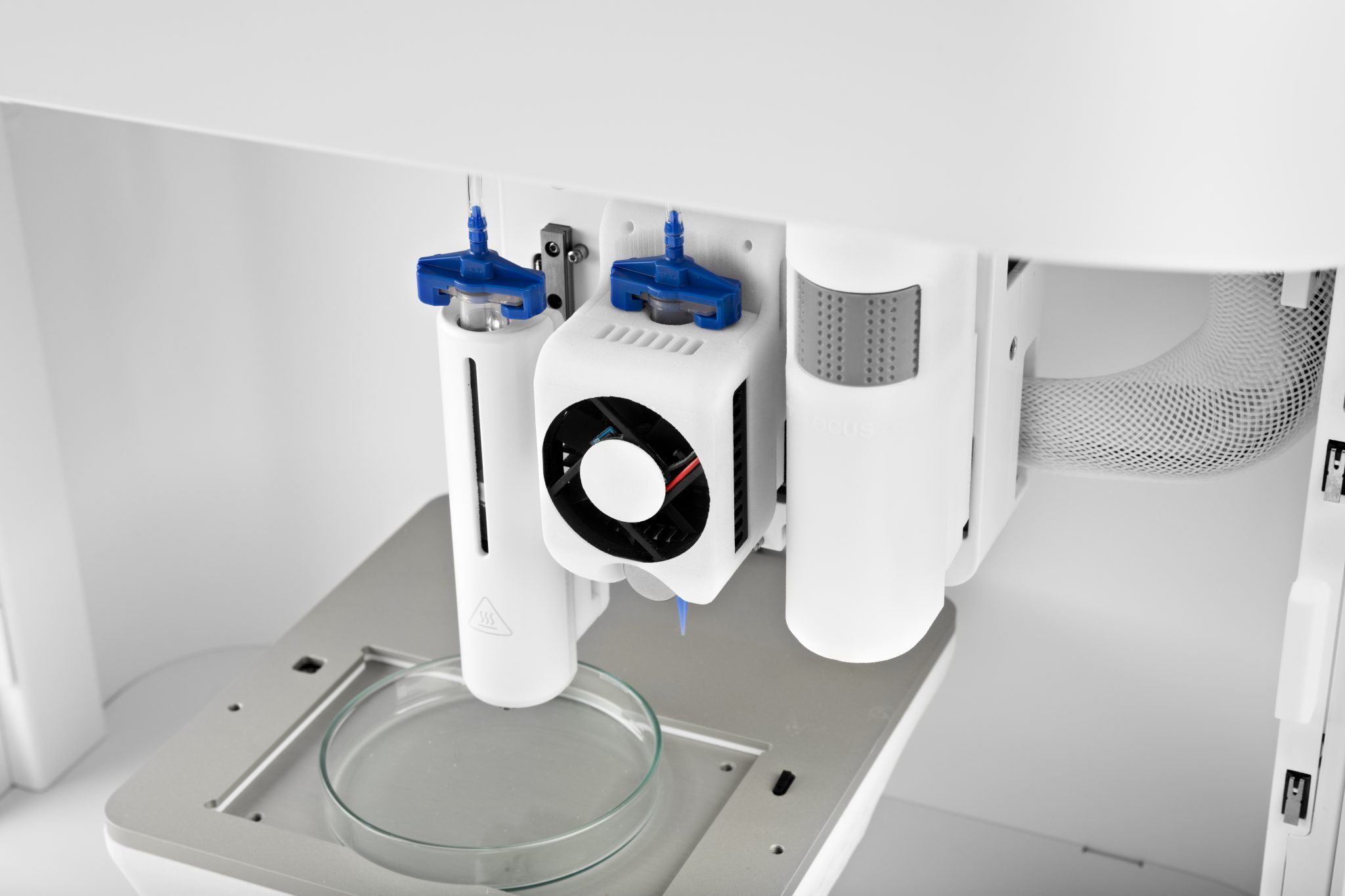

BIO X™ is the most user-friendly and flexible bioprinter in the world, providing the user with an unparalleled bioprinting experience. The built-in features along with the new BIO X software managed through the large touchscreen display minimize the learning curve and ensure you will receive the results you want.



1. Printing technology: Extrusion method

2. Patent technology for optimised highest possible cell viability

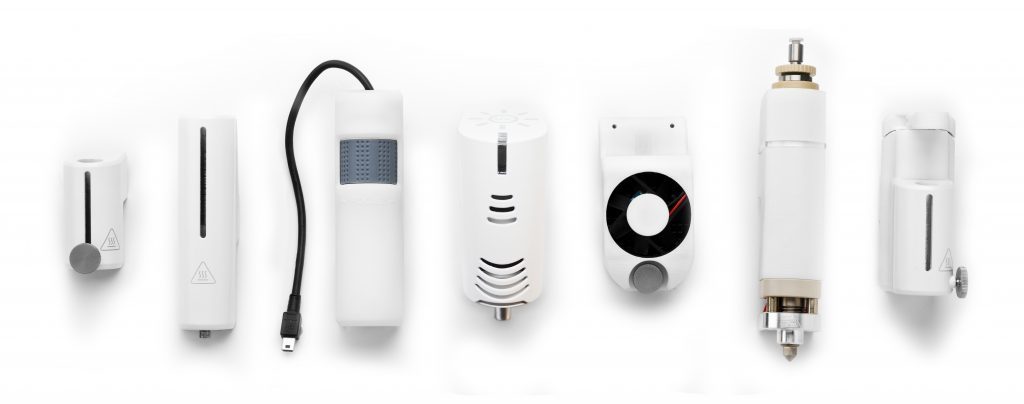

3. The Intelligent Printhead (iPH) System gives users the utmost flexibility and interchangeability:

• UV Photocuring Toolhead
• Thermoplastic Printhead
• Electromagnetic Droplet (EMD) Printhead
• Temperature-controlled Printhead
• Standard Pneumatic Printhead
• Syringe Pump Printhead
• HD Camera Toolhead

4. HEPA filtered clean chamber for sterile environment

5. Multiple selection of Bioinks:

• CELLINK RGD
• CELLINK FIBRIN
• CELLINK SKIN
• CELLINK BONE
• CELLINK LAMININK



Specifications

Outer dimensions (L*W*H), mm	477x441x365
Weight, kg	18
Build Volume, mm	130 x 90 x 70 mm
Build surface compatibility	Multi-well plates, petridishes, glass slides
Resolution XY, μm	1
Layer Resolution, μm	1
Pressure range (internal pump), kPa	0-200
Pressure range (external air supply), kPa	0-700
No. of printhead slots	3
Photocuring sources (built-in), nm	365, 405, 485, 520
Printbed temperature range, °C	4-65
Printhead temperature range, °C	4-250 (printhead specific)
Filter class, chamber air-flow	HEPA 14
UV-sterilization	UV-C (275nm), 20mW output
Calibration Options	Manual and Automatic
User Interface	Integrated Display, DNA Studio
DNA Studio OS compatibility	Windows
Connectivity	USB Storage, Ethernet connection
Supported file formats, software	.gcode, .stl
