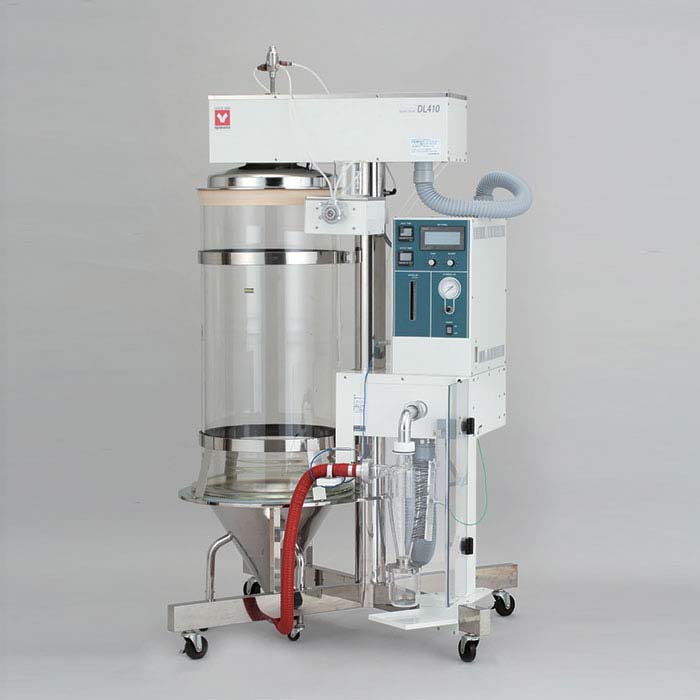

Yamato DL410 Large Capacity Spray Dryer

Yamato’s DL410 large capacity spray dryer produces fine particles from 1 to 100μm, which is considered to be extremely difficult to produce in laboratories. This spray dryer does not require samples to undergo pre or post processing such as filtration, separation, or pulverization. Furthermore, the spray dryer ensures efficient and quick drying of small, expensive, and heat sensitive samples with its easy operation.

Our DL410 spray dryer is useful for preliminary tests for pilot plant or expensive samples, micro capture spray drying research, as a substitute for general laboratory drying methods, and much more. Organic solvents are also supported with the attachment of GAS410 organic solvent recovery unit.

Features

• Liquid sample or solution is not required to undergo any pre or post processes such as filtration, separation, or pulverization
• Small, expensive and/or heat sensitive samples can be dried quickly and efficiently
• Processes samples as small as 0.5g of solid matter
• Safe for heat-sensitive samples, such as food or medical products
• No risk of contamination within the spray dryer
• Digital display of inlet/outlet temperature and drying air volume
• Detachable drying chamber, cyclone and product vessel
• Fast and easy clean up
• The hot air inlet and drying chamber cover automatically move up and down, and since the cyclone and product vessel can easily be removed, cleaning and maintenance of the spray dryer after experiment is easy
• Control functions are conveniently arranged on the control panel for various conditions
• Temperature recorder, air flow meter, pressure gauge and other measurements allow easy control of experiment conditions
• Universal power supply and multi-lingual touch screen controller

Specifications
