System 470 AT - HTC series Air Tight Ceiling

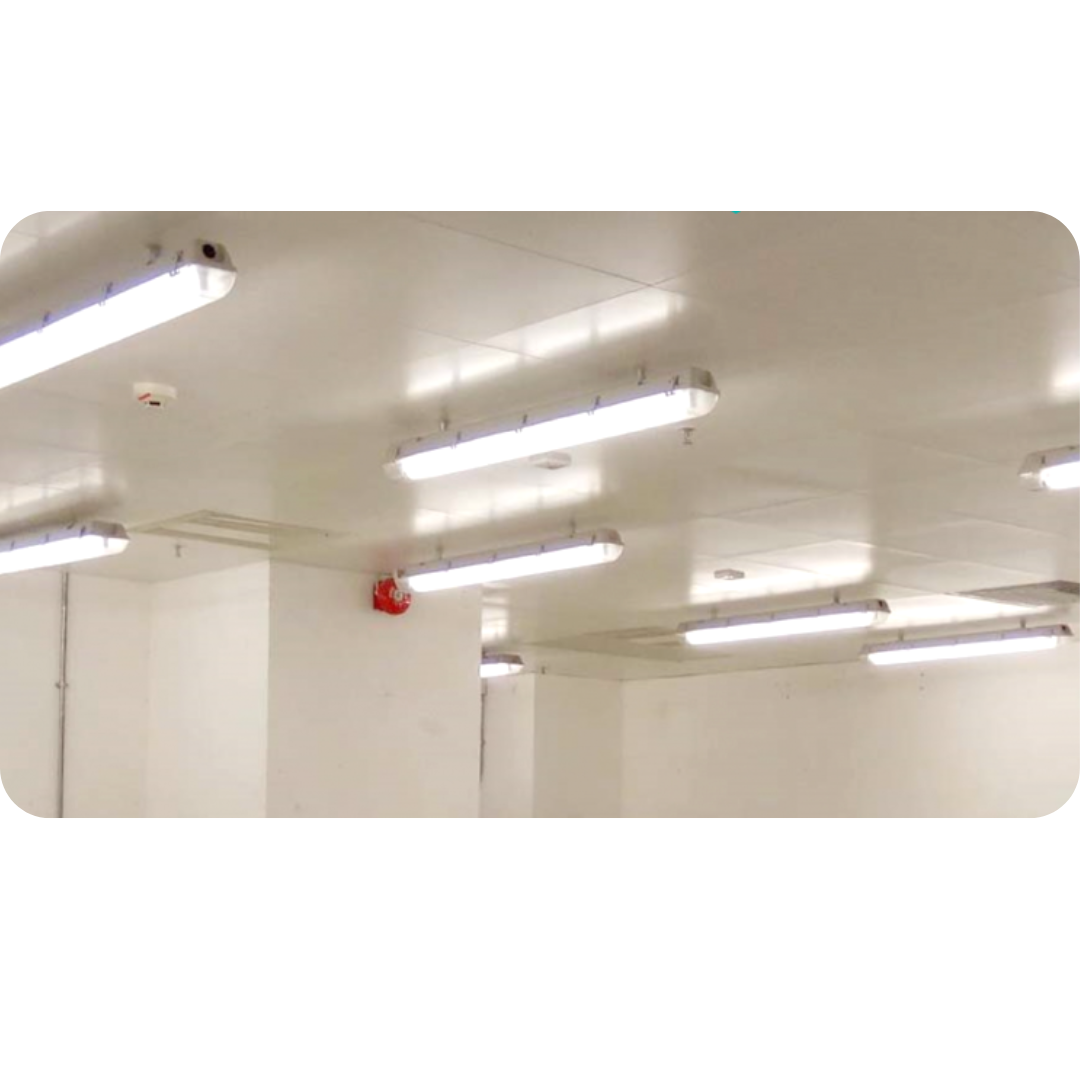

Suckow & Fischer System 470 AT - HTC series Air Tight Ceiling is the latest functional concealed Air Tight Ceiling for use in ambient air temperature & humidity control environment.
Brand: Suckow & Fischer Systeme
Not Available
Free delivery within Singapore only
Overview
A latest functional concealed Air Tight Ceiling for use in ambient air temperature & humidity control environment. HTC series is designed with insulation materials for applications such as data centres, food processing cold room, hygienic kitchen, hi-technology electronic device storage room and contamination control area etc., where multi-functions of humidity, temperature and air tight control ceiling are required under consistent ambient conditions with energy efficiency and savings.
Advantages
- Air tight ceiling for humidity and temperature control applications
- Energy & cost savings under consistent room conditions
- Low maintenance requirement on ceiling system
- Concealed suspension ceiling grid system with flat visible surface
- Tests proven Air Tightness & rigidness ceiling system
- Functional thermal and noise insulation properties
- Anti-static and Anti-bacteria coating available
- Ceiling structure thickness below 100mm, maximize ceiling height
- No need of applying silicon sealant on ceiling panel joints
- Individual panels are demountable with hand tool
Patents Awarded
- Innovative concealed grids ceiling system with flat visible surface
- Built-in EPDM gasket along the unexposed backside of panel upstand
- Structurally stable grid system design with concealed crisscrossed configuration
- Exclusive L-shape and W-shape extruded aluminium wall trims with lockable device for trimmed ceiling panels
- Sealant applied along wall trims is neat & invisible from surface
- Novel design (HTC series) with optional heat insulated materials laid on backside of ceiling panels
CE Mark
- Accredited CE Mark: Harmonized Suspended Ceiling Standards
- Ceiling system with Tests proven Air Tightness & Rigidness
3rd Party Test Reports
BS 476: Part 6 and 7 for ALUM / FE
- Fire tests on material and surface spread
CE Mark Verification Ceiling System
- System 4 of EN 13964:2014 (E)
- CE Harmonized Standard: Suspended Ceiling System
EN-12114-2000-03
- Air Permeability of Building Components & Building Element
Specification :
| Specifications | Kindly refer to the "Overview" tab. |
