Life Science
Plant Growth Lighting Solutions
One Color Lighting Panel

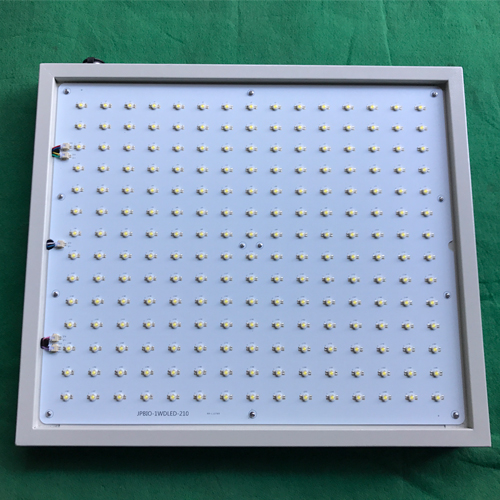

Model No. WH370
White LED Lighting Solution with High Power Intensity Supplying
Special white LED lighting solution with broad spectrum and high power intensity supplying for tall plant or strong intensity requesting plant. Which usually suit for transgenic rice, corn, potato, tomato etc.
Specifications
| Spectrum | 400nm to 700nm |
|---|---|
| Color Type | One Color/Cool Color |
| Power | 440W |
| Intensity | 1600μE-m²s (10cm from the lights)-dimmable from 0% to 100% |
| Size (L×W×H) | 590mm×510mm×55mm |
| LED Color(s) | White |
| Electrical Supply | AC 110V to 277V ±5%, 50/60Hz; 2Amp |

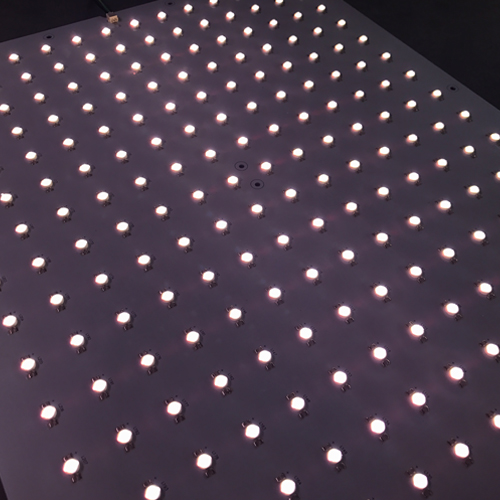

Model No. WG150
White LED Lighting Solution with General Power Intensity Supplying
Special white LED lighting solution with broad spectrum and common power intensity supplying for small or general intensity requesting plant. Which designed for corn, potato, tomato etc.
Specifications
| Spectrum | 400nm to 700nm |
|---|---|
| Color Type | One Color/Cool Color |
| Power | 198W |
| Intensity | 1000μE-m²s (10cm from the liths)-dimmable from 0% to 100% |
| Size (L×W×H) | 530mm×350mm×8mm |
| LED Color(s) | White |
| Electrical Supply | AC 110V to 277V ±5%, 50/60Hz; 0.9Amp |
Model No. WL50
White LED Lighting Solution with Low Power Intensity Supplying
Special white LED lighting solution with broad spectrum and low power intensity supplying for small or low intensity requesting plant. Which designed for water plant, Arabidopsis etc.
Specifications
| Spectrum | 450nm to 700nm |
|---|---|
| Color Type | One Color/Cool Color |
| Power | 66W |
| Intensity | 300μE-m²s (10cm from the liths)-dimmable from 0% to 100% |
| Size (L×W×H) | 530mm×350mm×8mm |
| LED Color(s) | White |
| Electrical Supply | AC 110V to 277V ±5%, 50/60Hz; 0.3Amp |

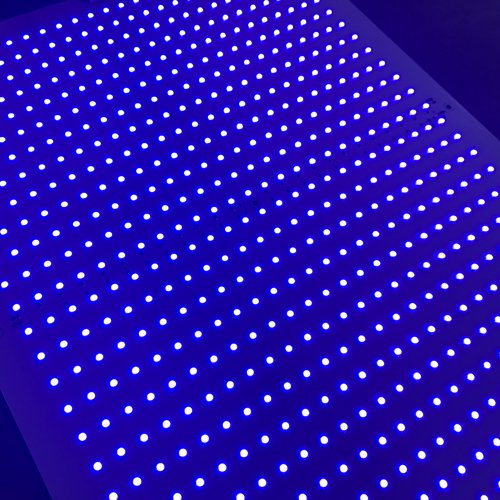

Model No. BL70
One Color LED Lighting Solution with Low Power Intensity Supplying
Low power intensity LED lighting solution for tissue culture, small plant or low intensity requesting plant.
Specifications
| Spectrum | 450nm±5nm |
|---|---|
| Color Type | One Color/Cool Color |
| Power | 180W |
| Intensity | 400μE-m²s (10cm from the liths)-dimmable from 0% to 100% |
| Size (L×W×H) | 530mm×350mm×8mm |
| LED Color(s) | Blue |
| Electrical Supply | AC 110V to 277V ±5%, 50/60Hz; 0.4Amp |

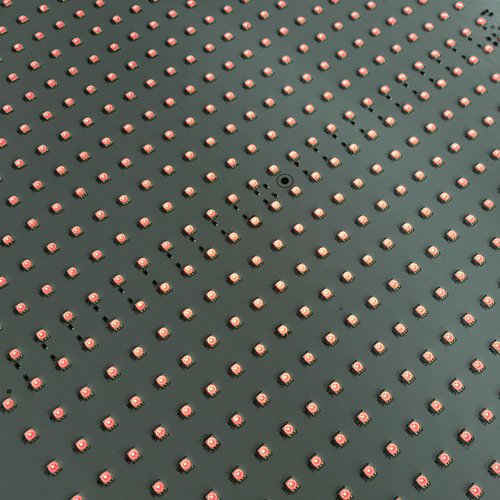

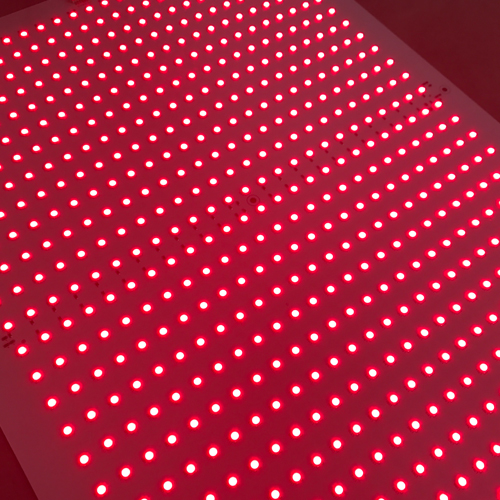

Model No. RL60
One Color LED Lighting Solution with Low Power Intensity Supplying
Low power intensity LED lighting solution for tissue culture, small plant or low intensity requesting plant.
Specifications
| Spectrum | 660nm±5nm |
|---|---|
| Color Type | One Color/Cool Color |
| Power | 120W |
| Intensity | 300μE-m²s (10cm from the liths)-dimmable from 0% to 100% |
| Size (L×W×H) | 530mm×35mm×8mm |
| LED Color(s) | Red |
| Electrical Supply | AC 110V to 277V ±5%, 50/60Hz; 0.4Amp |
Model No. IRL40
One Color LED Lighting Solution with Low Power Intensity Supplying
Low power intensity LED lighting solution for tissue culture, small plant or low intensity requesting plant.
Specifications
| Spectrum | 735nm±5nm |
|---|---|
| Color Type | One Color/Cool Color |
| Power | 66W |
| Intensity | 110PFD (10cm from the liths)-dimmable from 0% to 100% |
| Size (L×W×H) | 530mm×350mm×8mm |
| LED Color (s) | Far Red |
| Eletrical Supply | AC 110V to 277V ±5%, 50/60Hz; 0.3Amp |
Note: Lights with different spectrum are available on request
Dimensions and Technical Drawings
| Dimensions Of LED Lights Panal | |||
|---|---|---|---|
| Length | Width | Height | |
| Exterior | 590mm | 510mm | 55mm |
| Specifications | Kindly refer to the "Overview" tab. |
