HIRANUMA Oil Evaporator EV-2000L

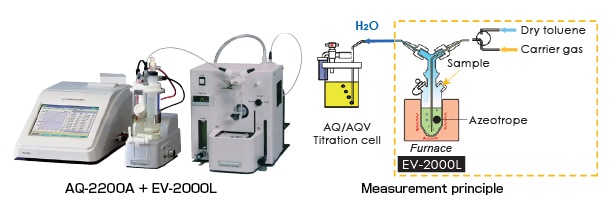

The EV-2000L Oil Evaporator utilizes azeotropic distillation. It completely separates water from sample matrices, thus eliminating any side reactions with interfering substances. The EV-2000L can be used with all — Karl Fischer titrators, or any other manufacturer’s titrators.

Pricing & Availability Add to wishlist

Add to Cart Contact Us for better pricing. Warranty Details

Free delivery within Singapore only

Features

Keeps the cell always clean!
Compact cubic design
Easy to use and simple maintenance

Specifications

Item	Specifications
Evaporation method	Azeotropic distillation method
Heating temperature	Room temperature to 200 ˚C
Heater	Band heater
Evaporation chamber capacity	Max. 10 mL
Azeotropic solvent	Toluene / Xylene / n-Octane (5 to 10 mL per measurement)
Carrier gas	Nitrogen gas or dry air* Optional dry air pump is required. Flow rate: 30-300 mL/min. Input pressure: 0.8 MPa or less Desiccant: Molecular sieves
Power supply	AC100-240 V, 50/60 Hz, 150 VA
Dimensions / Weight	220(W) × 370(D) × 265(H) mm / Approx. 7 kg

*Molecular sieves required for drying carrier gas is not included in the instrument.

Options

Dry air pump
Compact, integrated air pump eliminates the need for nitrogen carrier gas.
