DiluFlow Elite 5 kg Gravimetric Dilutor

Full traceability!

Ref 503 105 (single pump)
Ref 503 205 (double pump)

DiluFlow Elite 5 kg Gravimetric Dilutor automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its full traceability enables the recording of all operations. It is programmable and connectable for up to 6 diluents and offers the best solution to dilute any type of sample.

• 225 mL in 8 seconds
• Dilution factor: 1/2 to 1/1000, customizable fractions
• Dilution accuracy: > 99 %*
• Max weight: 5000 g
• Max number of pumps: 2 integrated + 4 external

High accuracy

The DiluFlow Elite enables an accurate dilution of all types of samples from 10 to 375 g (at 1/10^th) with an accuracy > 99% . The unit is in conformity with ISO 7218 and ISO 6887 standards.

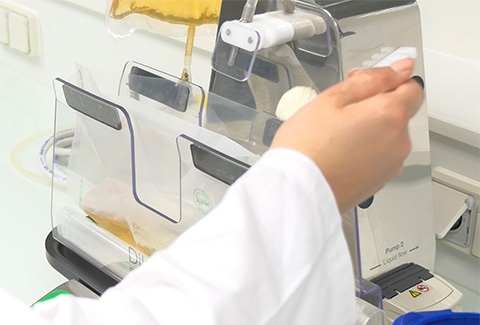

Robotic arm and protective plate

The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.

Connectivity and full traceability

The DiluFlow Elite is programmable through its 24 customizable programs. Traceability is ensured by a bidirectional LIMS ethernet connection. DiluFlow Elite exports the analyses data to printer, USB key, Excel^TM, Open Office^TM, CSV and LIMS.

Ultra-low profile

Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.

Removable drip tray

In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED

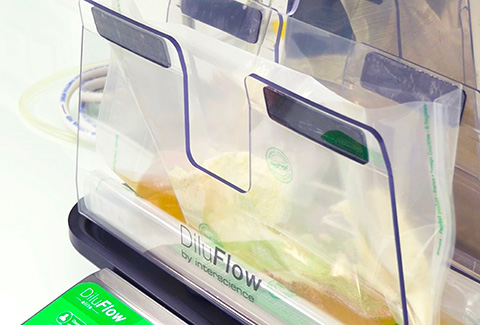

GeckoGrip holding system

This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED

Powder Mode

The DiluFlow Elite, with the JumboKit option, offers an automated protocol for all samples with a low aw-value (Water Activity) according to ISO 6887: milk powders, dehydrated products, cereals...

LightCode

LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.

Green
Accuracy > 98%

Orange
Accuracy > 95%

Red
Accuracy < 95%

Blue
Scale stabilizing

Autotare Function

Multi-distribution mode

Magnetic BagOpen

Up to 6 diluents

Applications

The DiluFlow Elite 5 Kg gravimetric dilutor is used for microbiological analyses in the food, environmental industries and public institutes research. It is used for the preparation of samples before their quality analysis for the control of raw materials, the control of products in production, and the control of finished products.

Specifications
