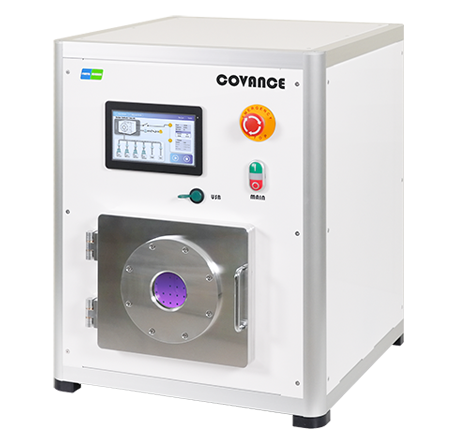

COVANCE - Tabletop Vacuum Plasma System
Plasma Surface Treatment
Brand: Femto Science
Available
Free delivery within Singapore only
Specifications
General
| Process Mode | PE |
|---|---|
| Chamber | W.200 x D.220 x H.160 (mm) |
| Generator | 20~100kHz Max. 200W / 13.56MHz Max. 300W |
| MFC | Max. 200 sccm |
| Gauge Pressure | Atm ~ 5 x 10-4 Torr |
| Operation | Manual & Automatic |
| Geometry | W.510 x D.525 x H.640 (mm) |
Process Chamber
- Plasma Mode : PE (Plasma Etching) Mode with single electrode
- Size : 200x220x160 (WxDxH, mm)
- Single Block Aluminum (Not welded, Minimized gas leak)
- Uniform gas flow design (Patent No. 10-1697205)
Generator
- Frequency : 20~100kHz (10kHz increment)
- Power : Max. 200W (Adjustable in 1W increment)
- (Opt.) RF(13.56MHz) with Max. 300W
- Automatic Impedance Matching
- Process Monitoring and Control
Gas flow Module
- Maximum Number of gas channels : x4 lines
- Gas flow control : High repeatability MFC
- Purge line : x1 ea
- Vent line : x1 ea
- MFC Flow rate : Max.200 sccm (1 sccm increment)
Vacuum Package
- Gauge : Pirani (5x10-4 Torr)
- Pump : Oil Rotary Pump
- Pump displacement : 290L/min @ 60Hz
- Ultimate Pressure : 5x10-3 Torr
Controller
- DSP on board signal controller
- Automatic / Manual operation
- Interactive integrated software
- 7” Touchscreen PC & USB data transfer
- Saving and loading of process recipes
- Process graphs and alarm log loading
System Dimension
- Main System : 510x525x640 (WxDxH, mm)
- Vacuum Pump : 480x160x250 (WxDxH, mm)
Chamber Structure
Specification :
| Specifications | Kindly refer to the "Overview" tab. |
