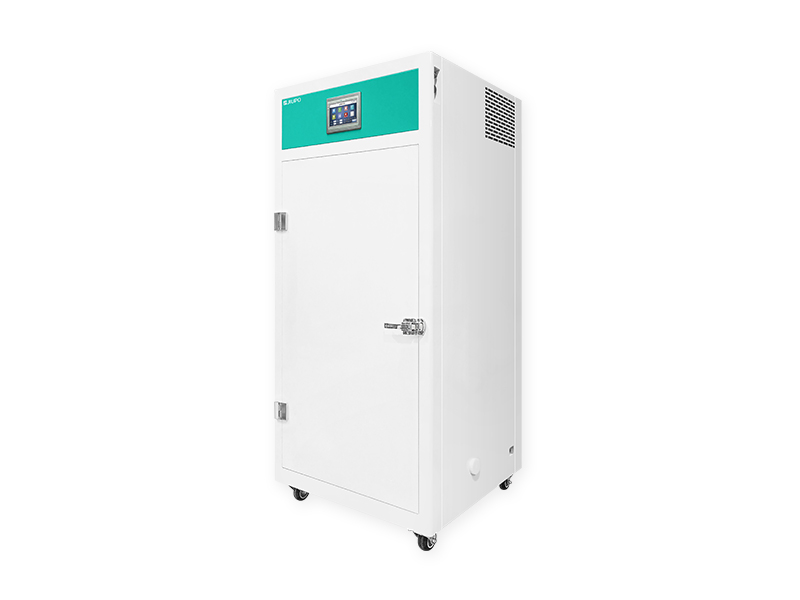

BPC600H/C is specifically designed for plant growth light quality studies and other experiments requiring specific wavelengths or full-spectrum wavelengths of light, capable of achieving extreme conditions of temperature, lighting levels, and humidity. The product is well suited for research applications requiring a high level of control in a relatively small footprint. In addition to customizable environmental control parameters, options are also available for growth height, gas levels. This chamber offers a maximum growth height of 51.2” (130cm) or a maximum growth area of 17.9 ft² (1.67m²).
Main Features
• Temperature range: 3°C to +45°C
• Humidity range: 50% RH to 90% RH
• Programable lighting conditions under regulated
• Temperature regulation with resistive temprature sensor
• Humidity regulation with capacitive humidity sensor and vapor humidification
• JIUPO multi management software JPCS19V4 basic edition
• LCD to display temperature and humidity along with additional information and alarms
• Independent temperature safety device with visual and audible temperature alarms
• Easily operate with reliable regulation system which works in tendem with an HMI (Human-Machine Interface) consisting of a touchscreen display
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Flush-mounted door design for better air impermeability
• The chamber made of completely stainless steel (SUS304) inner parts and spraying carbon steel body shell
• Counterbalanced Lighting systemEquipped with 4 stable castors and two with brabes, moveable to anywhere
Specifications
|
Standard |
Options |
Temp. Range (Lights ON) |
+3°C to +45°C |
- |
Temp. Range (Lights OFF) |
+3°C to +45°C |
-10°C to +45°C |
Temp. Precision |
0.1°C |
Temp. Fluctuation |
±0.5°C |
Temp. Uniformity |
±0.5°C |
Humidity Range (Lights ON) |
50%RH to 90%RH |
30%RH to 99%RH |
Humidity Range (Lights OFF) |
50%RH to 90%RH |
30%RH to 99%RH |
Humidity Precision |
0.1%RH |
Humidity Fluctuation |
±2%RH |
Humidity Uniformity |
±3%RH |
Temp. & Hum. Sensor |
Equipped with VAISALA HMP60 |
Control System |
Programable man-machine interactive control system with 7" touch screen |
Growth Space |
603L |
Shlves |
Equipped with 4 modular shelves |
Maximum Growth Height |
130cm |
Lights & Intensity |
LED lighting panels & 500μE-m²s (10cm from the lights) |
Lights Color |
Cool white |
One/three/four eighteen color(s) |
CO2 Regulation |
- |
Ambient to 2000/5000 PPM |
Camera |
- |
With Camera inside |
Smart Phone APP Remote Control System |
- |
Equipped with smart phone app remote control system |
Electrical Supply |
AC 110V to 277V ±5%, 50/60Hz; 12Amp |
Power Consumption |
2.5KW |
Warranty |
12 months |
