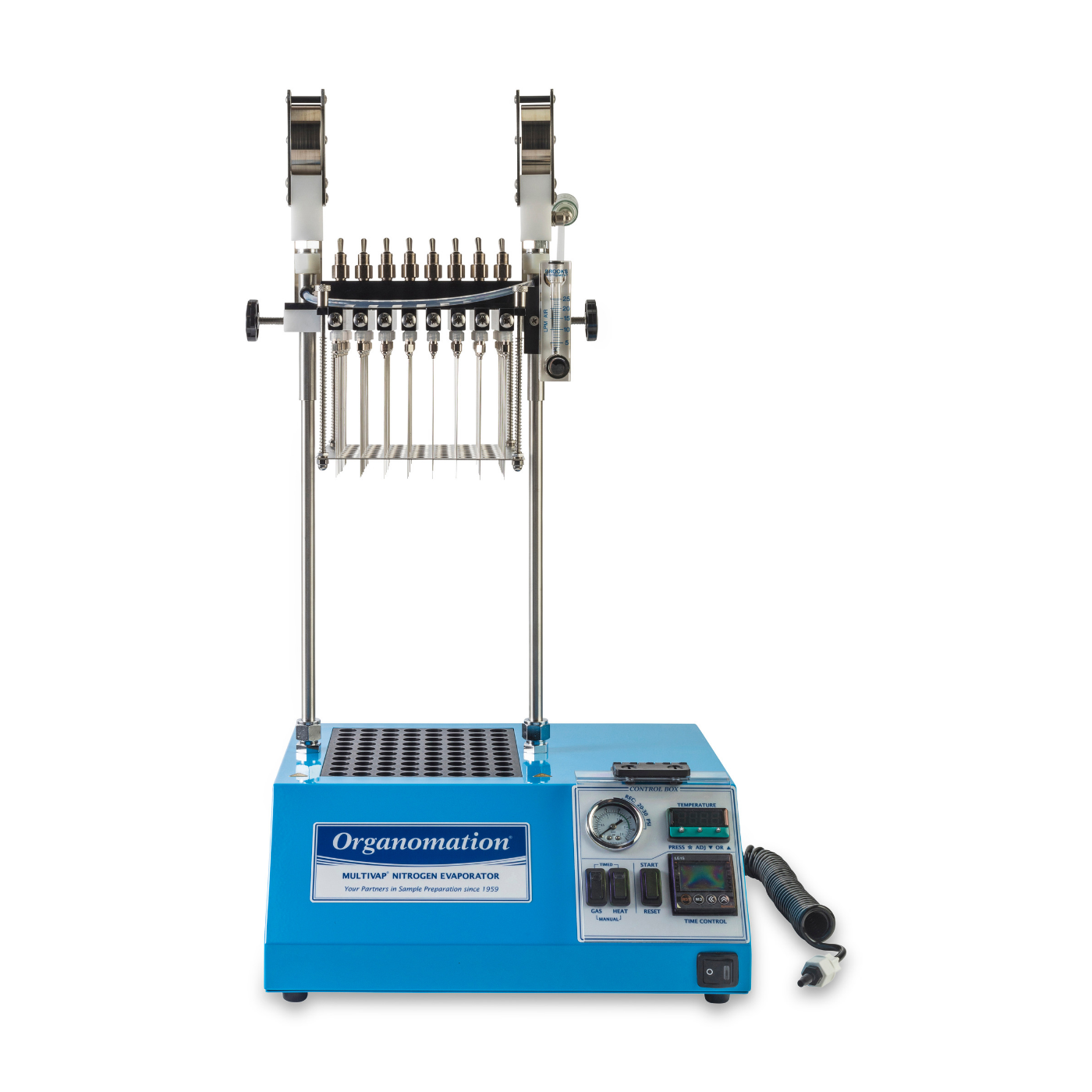

80 Position MULTIVAP Nitrogen Evaporator

The 80 position MULTIVAP parallel evaporator is a high temperature dry block model. This instrument contains a rectangular gas distribution system mounted on a frame and dual post assembly. The manifold delivers nitrogen gas to the needles or glass pipettes, which direct the gas onto the sample’s surface. This method results in rapid solvent evaporation and sample concentration. In order to conserve nitrogen gas, the manifold has a toggle switch for every row of 8 samples, which allows individual rows to be shut off when evaporating batches of less than 80 samples. Nitrogen gas flow is also controlled by an adjustable flow meter and a built-in pressure regulator.

The 80 position MULTIVAP small vial evaporator uses a heated aluminum dry block to reach evaporative temperatures ranging from 30°C to 120°C. Sample blocks are customized, within a range of 10-17 mm, for the user’s sample size for maximum and even heat transfer.

Since the heat block is made-to-order, we will request that you deliver us three sample vials for each unique vial size upon placing an order for a 30, 48 or 80 Position MULTIVAP. In situations where shipping sample vials to Organomation is not possible, we need precise measurements of your sample vials to be taken.

All models can withstand contact with organic solvents; however acid resistant models are also available for use with corrosive solutions.

Capacity

Evaporate batches of up to 80 samples at once, with outside diameters of up to 17 mm

Precise

Digital controls allow exact temperature regulation

Cost-Effective

Conserve gas by using ON/OFF valve for rows not in use

Consistent

Uniform evaporation across all samples with no adjustment needed between runs

Features

• Adjustable flow meter, 0-25 lpm

• Dual band hoist spring assembly

• High temperature limit switch for safety

• Safety control cover plate

• Digital temperature controller

• Electronic timer

• Nitrogen filter

• Gas distribution manifold

• Built-in pressure reducing regulator

• Needle guide

Options

• 220v wiring harness (Option Code# -2)

• Z-Purge/positive pressure purge case (Option Code# -Z)

• Acid resistant coating on instrument and needles (Option Code# -RT)
