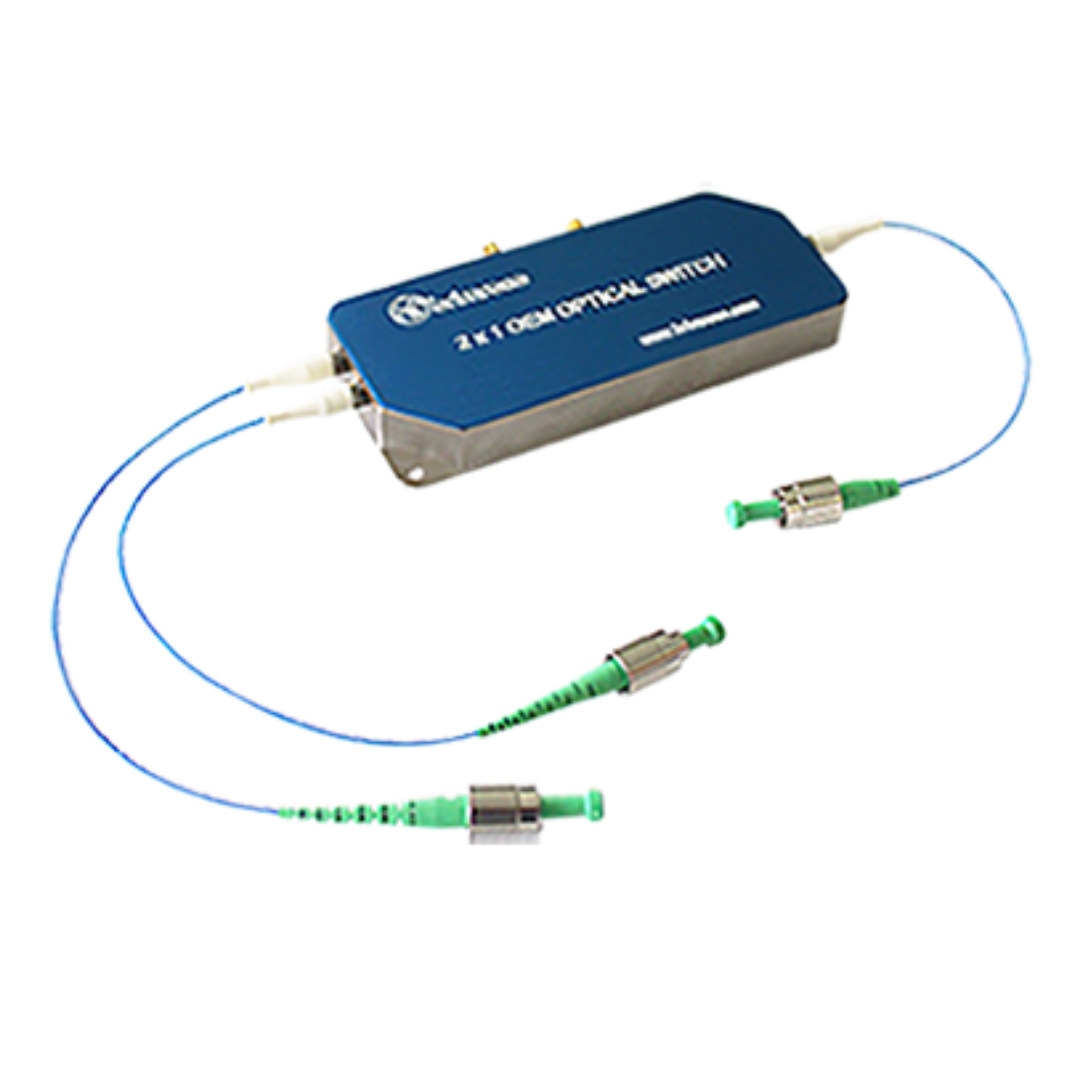

2x1 Fiber Optical Switch Systems

The Brimrose fiber optical switch system plays a major role in modern fiber optic telecommunication and sensing systems that demands high-reliability operation, response, and continuous high frequency switching.

This fiber optical switch is a powerful tool to switch an optical signal at nanosecond speed (200ns). The optical switch has two configurations: 1×2 or 2×1. The switch is bi-directional. The optical switch consists of the all fiber optic switch device and corresponding driver packaged in a rack-mountable enclosure. The switching is done by an external TTL compatible low voltage signal.

Key Features

• Fiber Optically Pigtailed
• 1x2 and 2x1 Configurations
• Compact Size and Rack Mount
• Solid-state: No Moving Parts
• Nanosecond Speed Response: ~200 ns
• Low Insertion Loss
• Low Power Consumption
• High Reliability, Environmentally Stable
• 9/125 µm Single-Mode (SM) Fiber
• Custom Configurations Available
