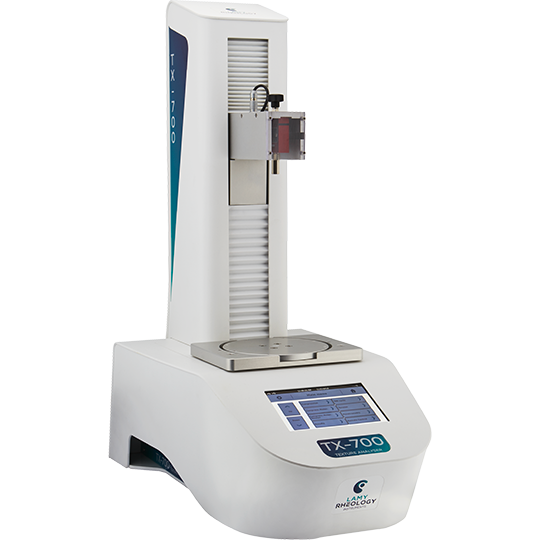

TX - 700 Texture Analyzer

TX-700 Texture Analyzer is the ideal tool for your texture analysis

Whatsapp

Overview

With its wide range of probes and cells, the TX-700 is the ideal tool for your texture analysis. Thanks to its touch screen directly displaying the curves, its method programming capability, storage and analysis of measurements, the TX-700 will integrate in laboratory and production area.
  • Integrated PT 100 temperature probe.
  • Direct visualization of curves.
  • Programming and saving of methods.
  • Memorization and data transfer.
  • Wide choice of probes and cells.
  • Interchangeable force sensors.
  • Height adjustable tray.


Specifications

  • TYPE OF INSTRUMENT :
    Texture Analyzer operating in Compression and Traction with 7'' Touch screen
  • CHOICE OF SENSORS :
    10 N (1 kg), Resolution 0.001 N (0.1 g) 20 N (2 kg), Resolution 0.001 N (0.1 g) 50 N (5 kg), Resolution 0.001 N (0.1 g) 250 N (20 kg), Resolution 0.01 N (1 g) 500 N (50 kg), Resolution 0.01 N (1 g)
  • SPEED RANGE :
    From 0.1 to 10 mm/s +/-0.2 %
  • MOTION :
    Height: 330 mm / Resolution: 0.1 mm
  • TEMPERATURE :
    Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
  • ACCURACY :
    +/- 0.1 % of the full scale
  • DISPLAY :
    Force – Speed – Distance – Temperature - Time – Measuring probe – Level of sensitivity Date/hour - Choice of force units: gram or Newton
  • COMPATIBLE ACCESSORIES :
    Probes
    Fixtures
    Barcode reader with stand and cable
    Touch screen protector
    Calibration Kit: 10-20N (Ref.150060) ; 50-250N
    (Ref.150070) ; 500N (Ref.150080).
    RheoTex software
    Force sensor: 10N (Ref : N150010) ; 20N (Ref : N150020) ;
    50N (Ref : N150050) ; 250N (Ref : N150250) ;
    500N (Ref : N150500).
  • SECURITY AND CONFIDENTIALITY :
    An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
  • LANGUAGES :
    French/English/Russian/Spanish/Turkish/German
  • COMPATIBLE MEASURING SYSTEMS :
    All probes and cell
  • SUPPLY VOLTAGE :
    90-240 VAC 50/60 Hz
  • PC CONNECTIONS :
    RS232 Port and USB
  • PRINTER CONNECTION :
    USB Host Port - Compatible
    PCL/5
  • WHAT BENEFITS ARE THERE FOR YOU?
    Integrated adjustable turntable: diam. 160 mm. Table for attaching inserts: 120 x 220 mm. Available Operating Modes: Compression – Relaxation –Traction – TPA Cycle – Penetrometry and relative compression mode also. Large selection of probes available and custom probes can be made with choice of material, shape and size according to your criteria. The TX-700 has a large 7’’ colour touch screen which allows comfortable use and optimal viewing of measurements. Storage of your measuring methods. Data can be backed up and exported using a USB key. External control thanks to the optional software.
  • DIMENSIONS AND WEIGHT :
    D610 x W340 x H710 mm
    Weight: 25 kg
