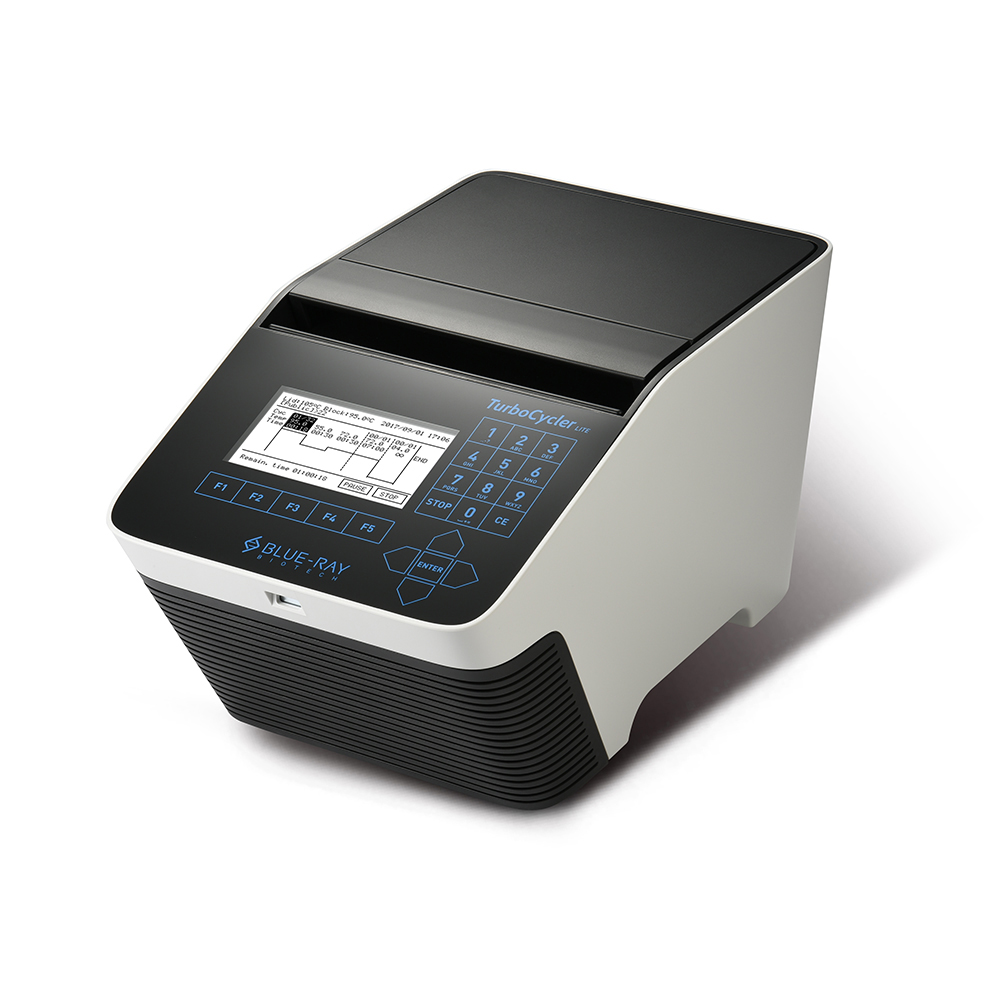

TurboCycler Lite Thermal Cycler
Economical Gradient Thermal Cycler with Versatile Capabilities
WhatsappOverview
Overview
TurboCycler Lite thermal cycler offers versatile capabilities at an affordable price, making it an ideal choice for routine PCR tasks. TurboCycler Lite comes with impressive features, including intuitive operation interface, gradient optimization, advanced slow-ramp temperature control and adjustable lid temperature.
Features and Benefits
Intuitive Operation Experience
A sensitive capacitive touch keypad and an intuitive graphical interface
Gradient Optimization
The thermal gradient function allows fast PCR optimization for new experiments
Advanced Slow-Ramp Temperature Control
The ramp rate can be precisely controlled down to 0.1 °C/sec to meet the need for the CRISPR/Cas related assays
Fully Adjustable Lid Temperature
The temperature can be set between 35 and 120 °C for virtually any type of experiment including NGS pre-treatment
Easy Disinfection
The dust and aerosol proof keypad can be easily disinfected
Auto Restart
Power failure recovery keeps the experiment safe
TurboCycler Model Comparison
Specifications
| Sample Block | |
|---|---|
| Sample Block | Fixed 96-well, compatible with regular profile or low profile 0.2 ml PCR tube, strip, non-skirted, semi-skirted and full-skirted 96-well plate |
| Sample Volume | 10 - 100 µl |
| Block Temperature | |
| Block Temperature Range | 4.0 - 99.9 °C |
| Max. Heating Rate | 3.0 °C/sec |
| Max. Cooling Rate | 2.0 °C/sec |
| Temperature Accuracy | +/- 0.3 °C |
| Temperature Uniformity Across Block | +/- 0.5 °C |
| Adjustable Ramp Rate | High / Low |
| Slow Ramp Temperature Control | Via temperature increment / decrement between cycles |
| Gradient Temperature | |
| Gradient Direction | Horizontal across the block |
| Gradient Temperature Range | 30 - 99 °C |
| Gradient Temperature Difference | Max. span 24 °C |
| Heater Lid | |
| Temperature Setting Range | 35 - 120 °C or off |
| Temperature Accuracy | +/- 1.0 °C |
| Software | |
| Stored Program No. | 200 sets |
| Registered User Folder No. | 50 sets |
| User Folder Password Protection | Yes |
| General | |
| Display | Monochrome LCM, 240 x 128 pixels |
| Input Interface | Capacitive touch keypad |
| Auto Restart after Power Outage | Yes |
| Footprint Dimensions (H x W x D) | 225 mm x 245 mm x 415 mm |
| Weight | 9.5 kg |
| Power Supply | VAC 100-240, 50/60 Hz, 500 W |
| Certification | CE, RoHS |
| * Specifications are subject to change without prior notice. | |
Ordering
- TCLT-9610: Gradient TurboCycler Lite with 96-well Sample Block (110V)
- TCLT-9620: Gradient TurboCycler Lite with 96-well Sample Block (220V)
- TCLT-a002: 5.2 mm Compression Mat x 10 pcs
- TCLT-a003: 1.0 mm Compression Mat x 10 pcs
