UV Transilluminators

Overview

Available in 21x21cm and 21x26cm sizes, our transilluminators are supplied either as standalone units or with the MicroDOC, as part of a fully integrated gel documentation system. With a large surface area, each transilluminator serves as the perfect workstation for viewing and working with fluorescently-stained protein and nucleic acid gels.

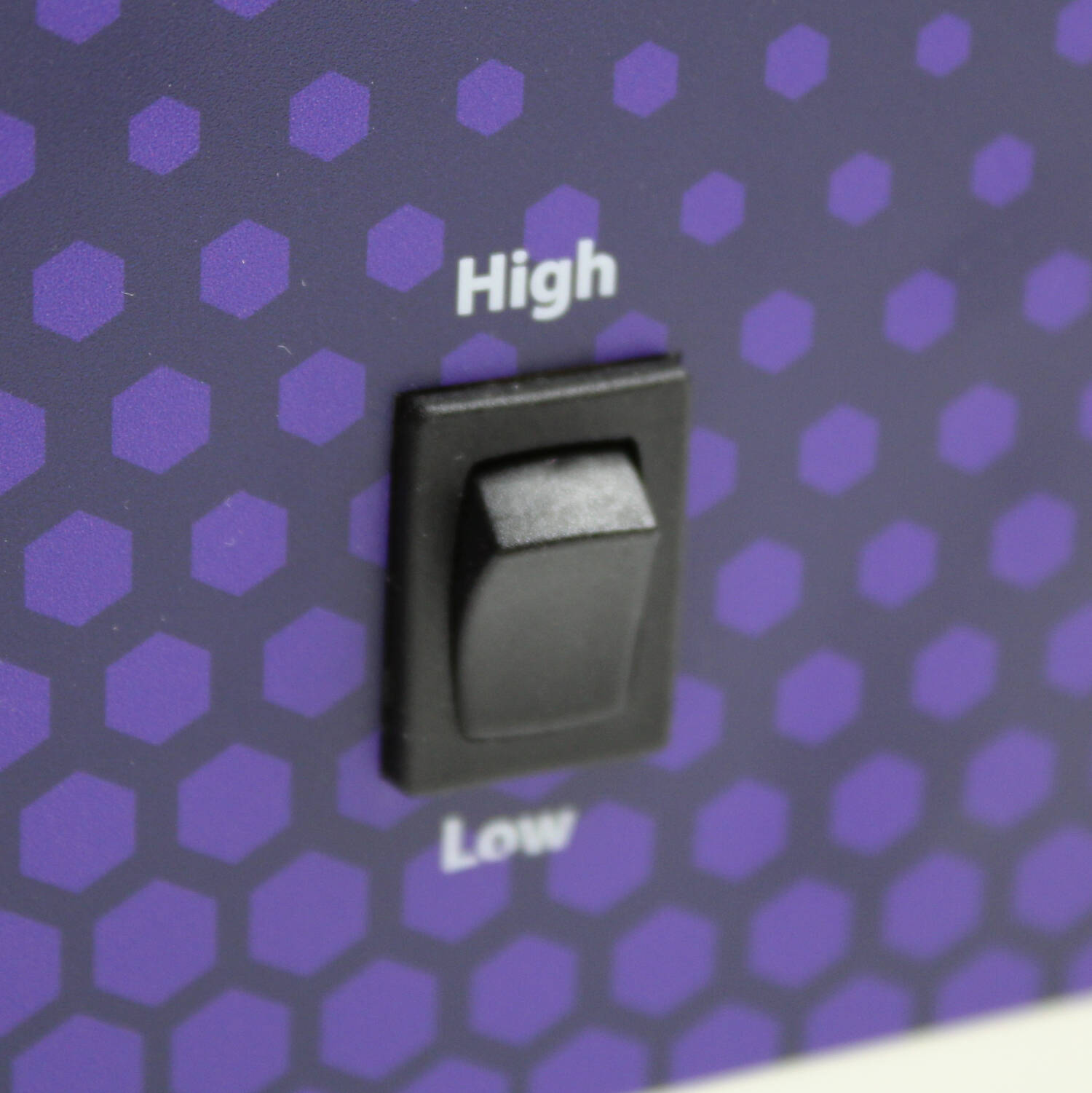

Standard features include a high/low intensity safety switch and an efficient starter that allows each of the six 8-Watt UV tubes to energise quickly without flickering, while special filter glass minimises unwanted background light. All of these features maximise contrast and sensitivity, allowing even the faintest fluorescent gels to be viewed. Two dual wavelength models offer added flexibility and convenience.

We recommend the 312nm wavelength transilluminator for standard gel documentation requirements. 254nm wavelength transilluminators will cause more DNA damage and are suited to other applications such as crosslinking. 254nm bulbs may also be visible through the filter making them unsuitable for gel documentation.



Features

• Three wavelength options for added flexibility and convenience: 254/312/365 nm
• Long life filter
• High efficiency reflector
• Hi/Lo intensity switch
• Fast start up



Specifications

SKU	CSLUVTS254	CSLUVTS254L	CSLUVTS312	CSLUVTS312L	CSLUVTS365	CSLUVTS365L
Unit Dimensions (cm)	34 x 29.5 x 10	34 x 29.5 x 10	34 x 29.5 x 10	34 x 29.5 x 10	34 x 29.5 x 10	34 x 29.5 x 10
Viewing Size (cm)	21 x 21	26 x 21	21 x 21	26 x 21	21 x 21	26 x 21
Wavelength (nm)	254	254	312	312	365	365
