Spectrophotometer

Advantages



• 45°/0° colour measurement and 60° gloss measurement with one device
• Worldwide communication of real-time measurement data directly via WiFi or Bluetooth 4.0

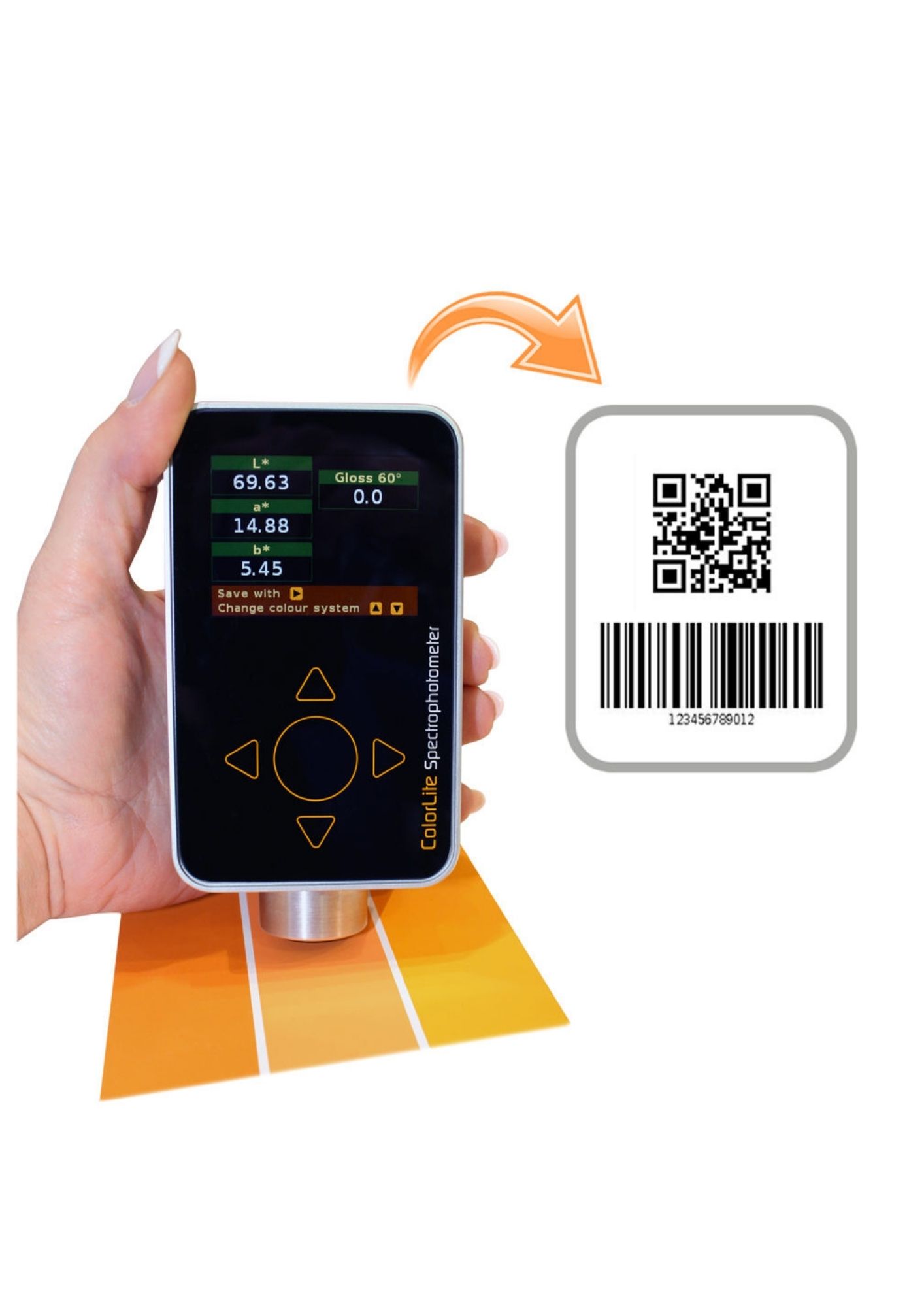

• Optional: Integrated data matrix scanner
  It’s so easy: Scan QR / barcode – measure sample – save data
• High powered LED-light source with an optimal life span
• Perfectly simple handling through intuitive user interface
• Memory space for 1000 standards and 350 sample photos



Description

ColorLite present a new „state of the art“, ultra mobile, 45°/0° geometry, high resolution spectrophotometer in a pocket format. Connect direct to your colour reference database from anywhere in the world, using wireless LAN or tether to your smart phone with Bluetooth V4.0

The small sized instrument, made in Germany from a solid aluminium block, weighs just 270g. It is equipped with the latest high-definition technology allowing a high resolution spectral scan in 3.5nm steps in less than 1 second. The brilliant colour high contrast O-LED display makes a perfect user interface. The menu is simple and clear, so anyone can perform measurements fast and accurate. A further unique feature of the ColorLite XS1 is the integrated data-matrix and barcode camera. This allows for fast effect sample identification and management.



Applications

• Colour measurement and registration of goods intake and goods output according to DIN EN ISO 9000 standard
• Objective quality control of colours within a production

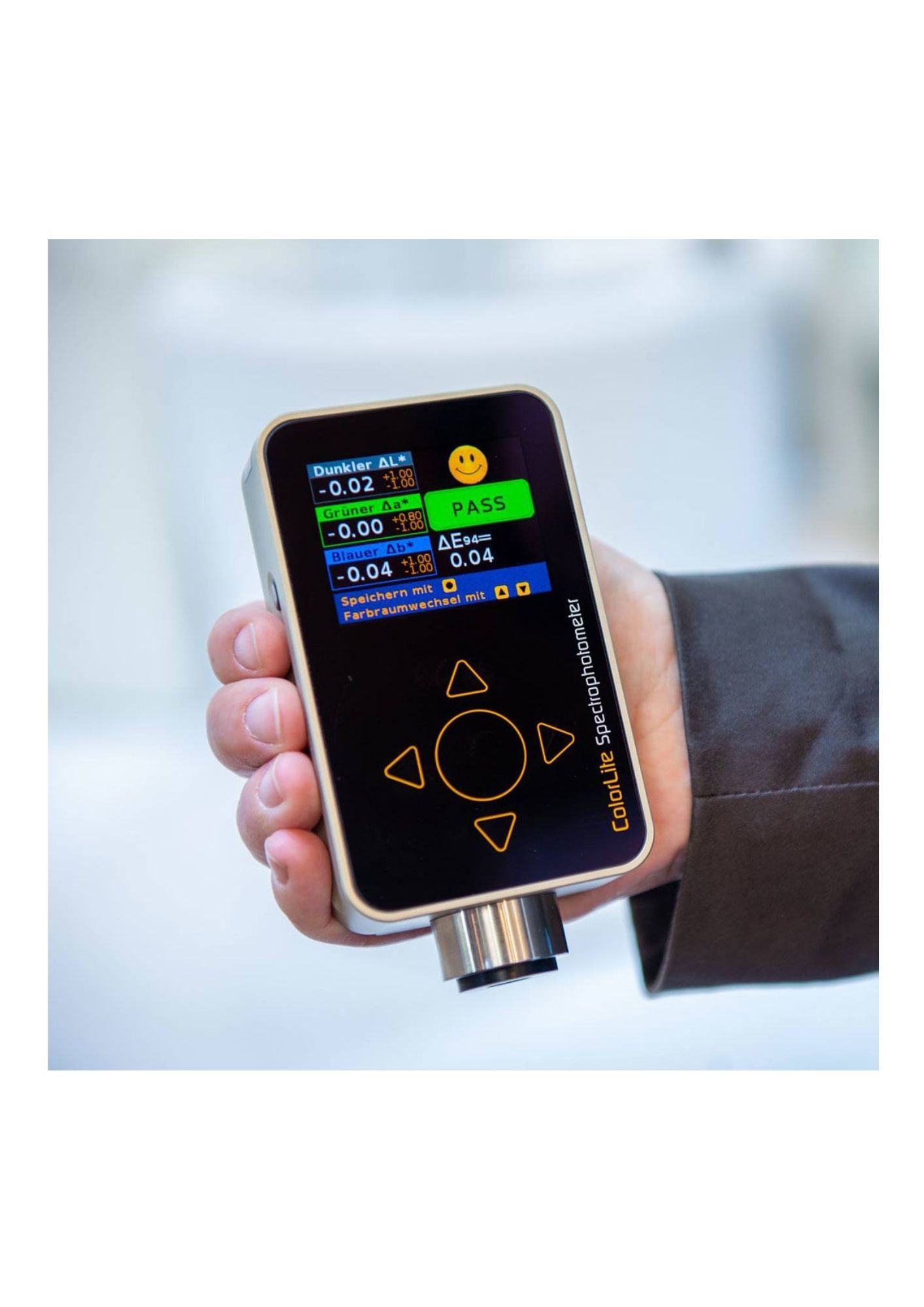

• Colour difference measurement to reference colours stored on the device



 The delivery includes

• Certified white standard PTB (Physikalisch-Technische Bundesanstalt)
• Aluminium case with foam padding
• USB interface cable
• Battery charger
• Printed and CD user manual



Measurement Geometry	45°/0° according to DIN 5033
Illuminants	D65, D55, D50, A, C, F11
Measuring area	3,5 mm
Colour Scales	XYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab Remission Spectrum with cursor displaying wavelength and % CIE-L*a*b* Diagram incl. tolerance limits
Quality Control Tolerance Limits and Colour Differences	ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh; Min/Max, PASS/FAIL, ΔECMC (1:1 und 1:2), CIE ΔE94, ΔE2000, dynamic index Metameric-Index for D65/A and D65/F11 according to DIN 6172
Other Values	Contrast: LRV (Light Reflectance Value) according to BS 8493:2008, Various White-Index values Various Yellowness-Index values
Spectral Light Source Measurement	Spectra and chromaticity measurement of light sources such as LED´s - optional
Sample Photos	350 Colour photos to visualise scanning area Dimension: 160 x 120 Pixel
Spectral Range/ Wavelength	400 nm to 700 nm
Spectral Resolution	Holographic grating-Spectrometer FWHM @500 nm < 10 nm Scanning in 3,5 nm intervals Resolution: 115 x 16-Bit per scan
Display	High resolution O-LED colour display: High contrast and low-Power 1/4-VGA, 320 x 240 Pixel
Gloss value	60° according DIN EN ISO 2813 (old DIN 67530)
Camera	Data-Matrix and Barcode-Scanner - optional
Repeatability	< 0,03 ΔE CIELab
Light Source	White and blue LED´s Life span > 20 years
Scanning Time	Complete measurement cycle with calculation and readout time. < 1sec
Multiple Scanning	Mean calculation of 1 to 20 individual measurements with colour values and standard deviation statistics displayed
Memory	Memory for 1000 standard colours Memory for 1000 colour values Memory for 300 spektra (400-700nm / 3.5nm) Memory for 350 sample-photos (160 x 120 Pixel)
Calibration	With white standard certified by the PTB (Physikalisch-Technische Bundesanstalt) Optional - 2 stage calibration with working standards
Power Supply	Lithium Polymer-Akku Charging time 1,5 hours
Standard Colour Management	Standards loaded by - list with Best-Match tool - index-no. - entering name
PC and Internet Connection	USB 2.0 Bluetooth© or WLAN
Dimensions	Device with battery: 120mm x 70mm x 32mm 270g
Ambient temperature	15 °C to 45 °C
Relative humidity	max. 85% not-condensing
