Spectrophotometer

Advantages



• Robust aluminium housing – dust and waterproof – IP65 class
• Worldwide communication of real-time measurement data directly via WiFi or Bluetooth 4.0
• Optional: Integrated data matrix scanne
• It’s so easy: Scan QR / barcode – measure sample – save data
• High powered LED-light source with an optimal life span
• Perfectly simple handling through intuitive user interface
• Memory space for 1000 standards and 350 sample photos



Description

Our ambition for all products that we develop it is to offer our customers real added value. This means in order to keep one step ahead, in terms of functionality, ease of use and accuracy, we place the highest demands on ourselves.

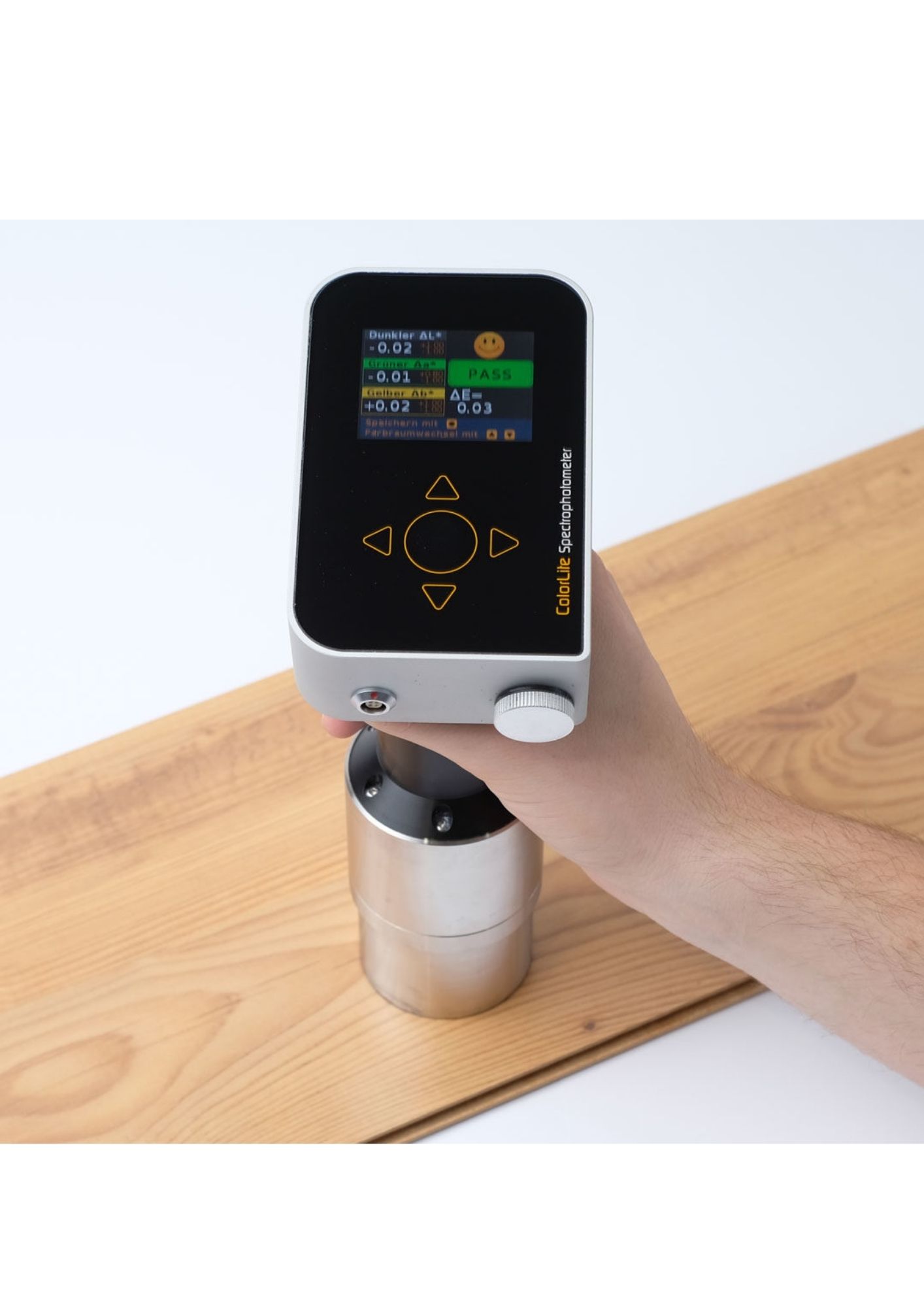

The spectrophotometer ”Rugged 2” series has a number of unique features, setting it apart from our competitors. As the name suggests, the aim for the development was to produce a spectrophotometer that works reliably in rough environments and still offers the highest accuracy specifications.

The IP65 protection class means that it is dust and water resistant. We test this by submersing the complete spectrophotometer for short periods under water! The main housing unit is milled from a solid aluminium block, shot blasted and then finished with a hard anodise coating.



Applications

• Colour measurement and registration of goods intake and goods output according to DIN EN ISO 9000 standard
• Objective quality control of colours within a production
• Colour difference measurement to reference colours stored on the device

The delivery includes

• Certified white standard PTB (Physikalisch-Technische Bundesanstalt)
• Aluminium case with foam padding
• USB interface cable
• Battery charger



Measurement Geometry	d/0° 40 mm area d/8° 6 mm area 45°/0° 10 mm area according to DIN5033
Illuminants	D65, D55, D50, A, C, F11
Colour Scales	XYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab Remission Spectrum with cursor displaying wavelength and % CIE-L*a*b* Diagram incl. tolerance limits
Quality Control Tolerance Limits and Colour Differences	ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh; Min/Max, PASS/FAIL, ΔECMC (1:1 und 1:2), CIE ΔE94, ΔE2000, dynamic index Metameric-Index for D65/A and D65/F11 according to DIN 6172
Other Values	Contrast: LRV (Light Reflectance Value) according to BS 8493:2008, Various White-Index values Various Yellowness-Index values
Spectral Light Source Measurement	Spectra and chromaticity measurement of light sources such as LED´s - optional
Sample Photos	350 Colour photos to visualise scanning area Dimension: 160 x 120 Pixel
Spectral Range/ Wavelength	400 nm to 700 nm
Spectral Resolution	Holographic grating-Spectrometer FWHM @500 nm < 10 nm Scanning in 3,5 nm intervals Resolution: 115 x 16-Bit per scan
Display	High resolution O-LED colour display: High contrast and low-Power 1/4-VGA, 320 x 240 Pixel
Camera	Data-Matrix und Barcode - Optional
Repeatability	< 0,03 ΔE CIELab
Light Source	White and blue LED´s Life span > 20 years
Scanning Time	Complete measurement cycle with calculation and readout time. < 1sec
Multiple Scanning	Mean calculation of 1 to 20 individual measurements with colour values and standard deviation statistics displayed
Memory	Memory for 1000 standard colours Memory for 1000 colour values Memory for 300 spektra (400-700nm / 3.5nm) Memory for 350 sample-photos (160 x 120 Pixel)
Calibration	With white standard certified by the PTB (Physikalisch-Technische Bundesanstalt) Optional - 2 stage calibration with working standards
Power Supply	Rechargable Lithium Polymer battery Standard 18650 size Replaceable
Standard Colour Management	Standards loaded by - list with Best-Match tool - index-no. - entering name
PC and Internet Connection	USB 2.0 Bluetooth© or WLAN
Printer Option	Direct to bluetooth lable printer
PC and Internet Connection	USB 2.0 Bluetooth© or WLAN
Dimensions	230mm x 130mm x 85mm Weight 830g
Ambient temperature	5°C bis 45°C
