Source/Sink measure unit (SMU)

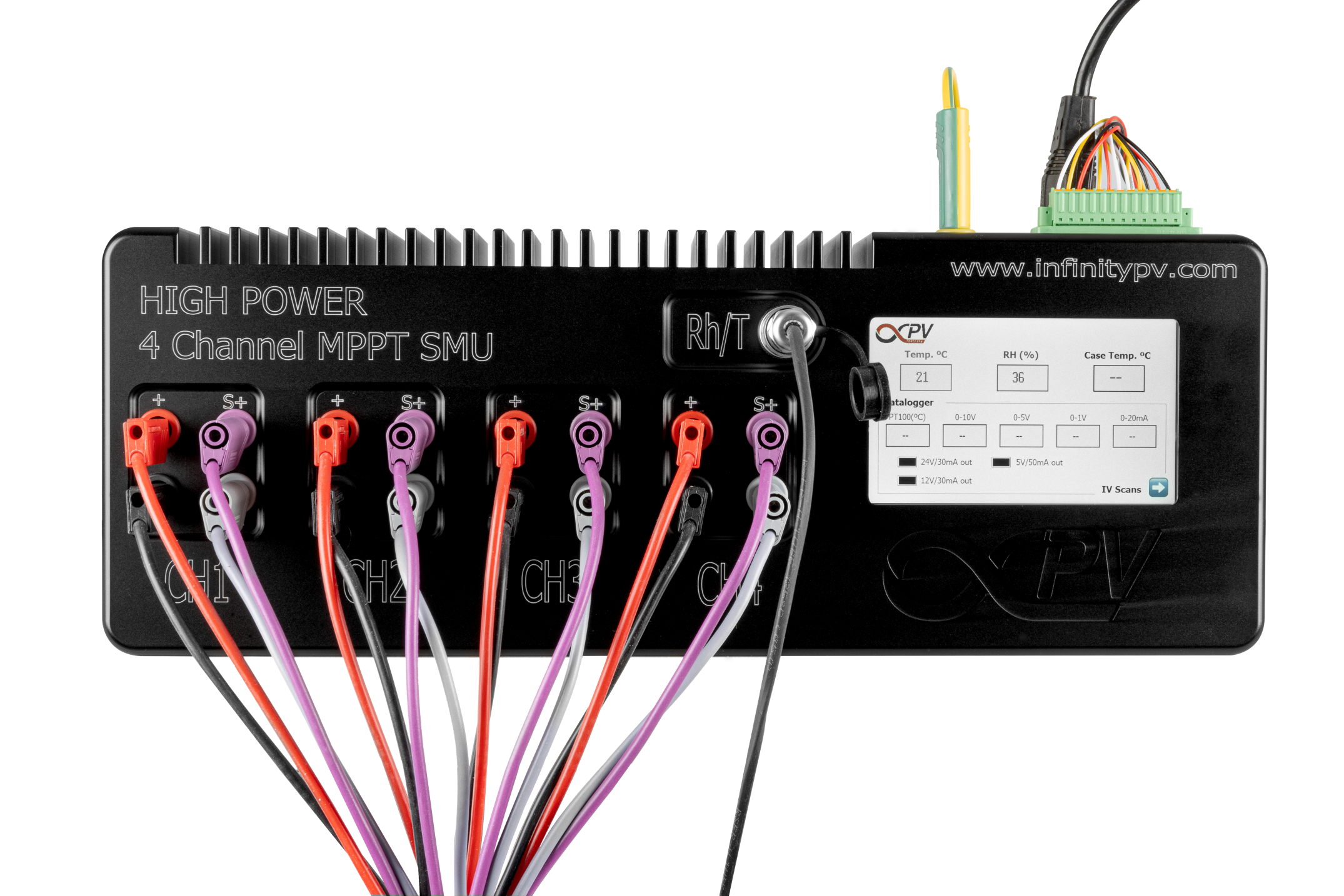

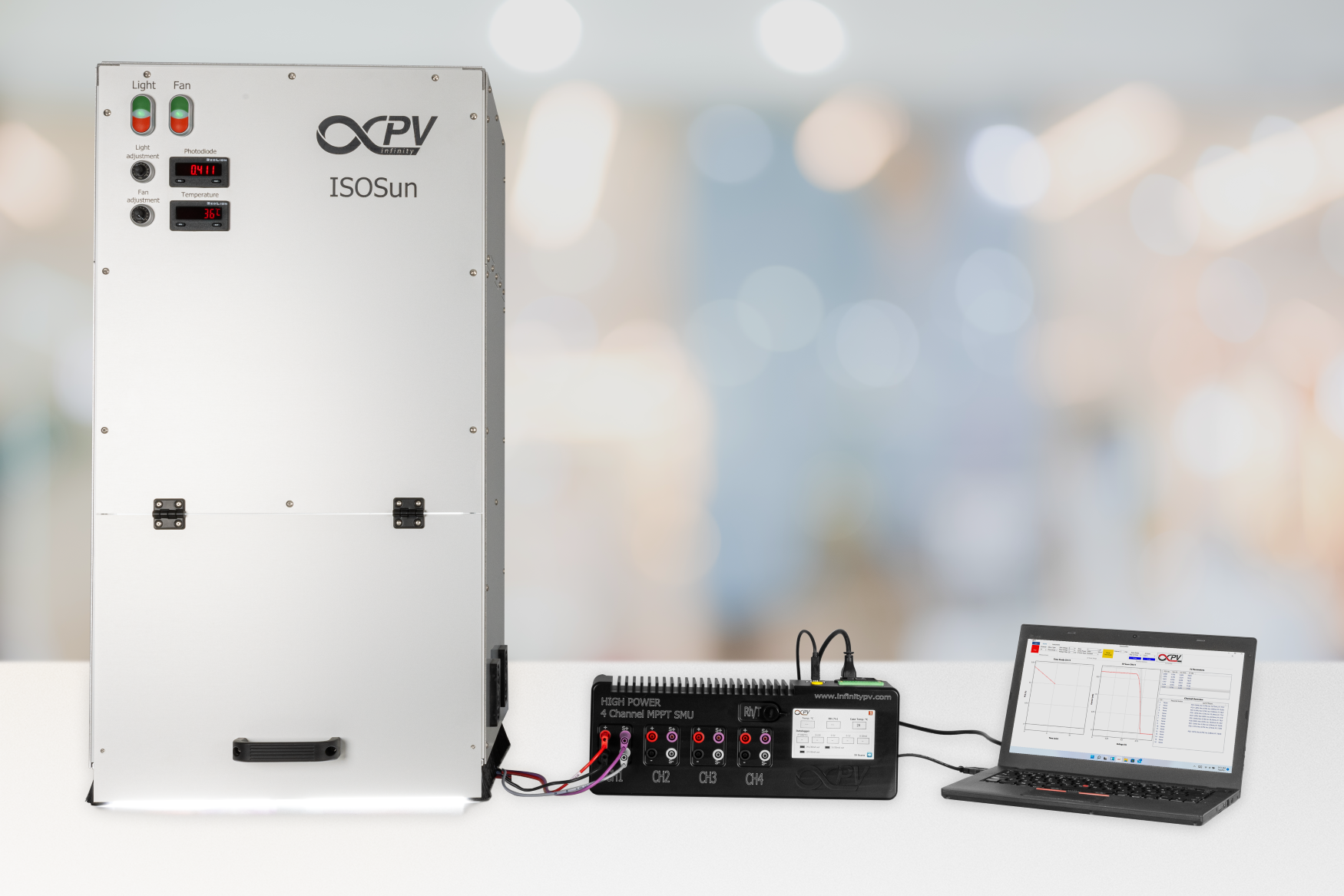

infinityPV ApS offers a versatile range of source measure units (SMUs) enabling testing of many solar cells in the same setup (from 1 to 40 channels) using a unique series multiplexers (MUXs) that cover from low voltage to high voltage 1kV or above. It is all controlled by powerful software enabling determination of power conversion efficiency and the following of performance over time when solar cells are subjected to different test conditions. This could for instance be following the ISOS testing protocols in connection with our ISOSun series of solar simulators. Our multiplexed units enable access to the device under test at all times (except when periodically tested by the SMU). This allows the user to control the electrical conditions of the devices under test at all times. This could be electrical stress through forward or reverse bias, a short circuit, open circuit, or a load. It is also possible to add maximum power point tracking units (MPPTUs) to each channel such that the device on that channel is subject to maximum power point tracking. When combined with our ISOSun, ISOS-L-3 chamber, weather station and software a complete turnkey system is at hand.
WhatsappOverview
Key highlights:
- Available in many sizes to meet specific needs
- From volts to kilovolts and from µAmperes to Amperes
- From a single channel to 40 channel multiplexing
- Active loads with maximum power point tracking
- Designed for continuous operation for many years
- Fully CE-approved and compliant
- Rugged aluminium cabinets that are easily mechanically fixed to other components
- Standalone touchscreen control and PC interface on all models
- Equipment that does not interfere with adjacent equipment or experiments

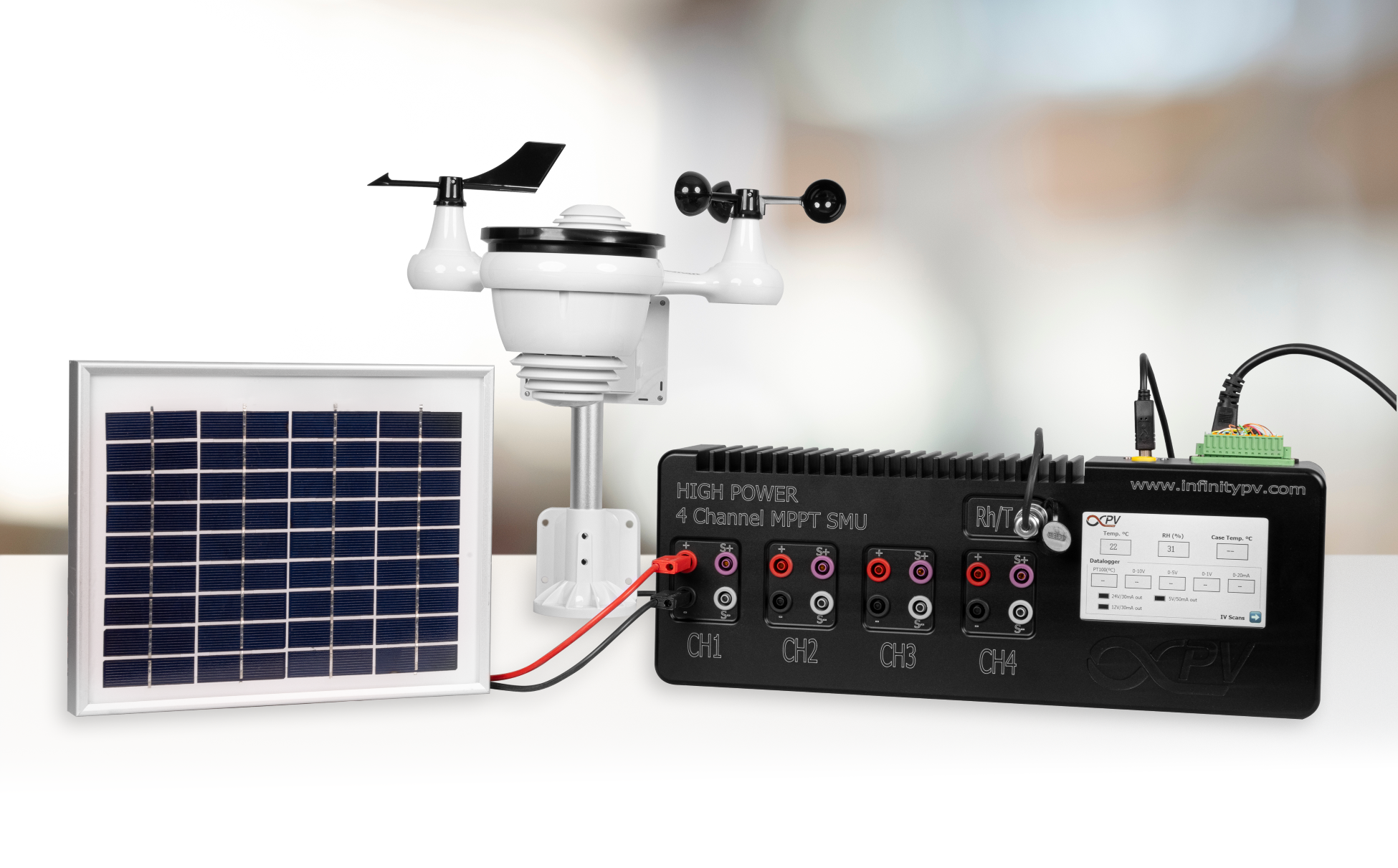

- Additional 8-channel weather input platform comprising wind speed, wind direction, 2 x humidity, 2 x temperature, AM15.D and AM1.5G (sensors not included)
- Weather input is easily software configured to accepts a large range of weather probes
- Fast industry 4.0 ready test software packages and interfacing to robotics
- Free software available online with the most recent additions
Selection Guide

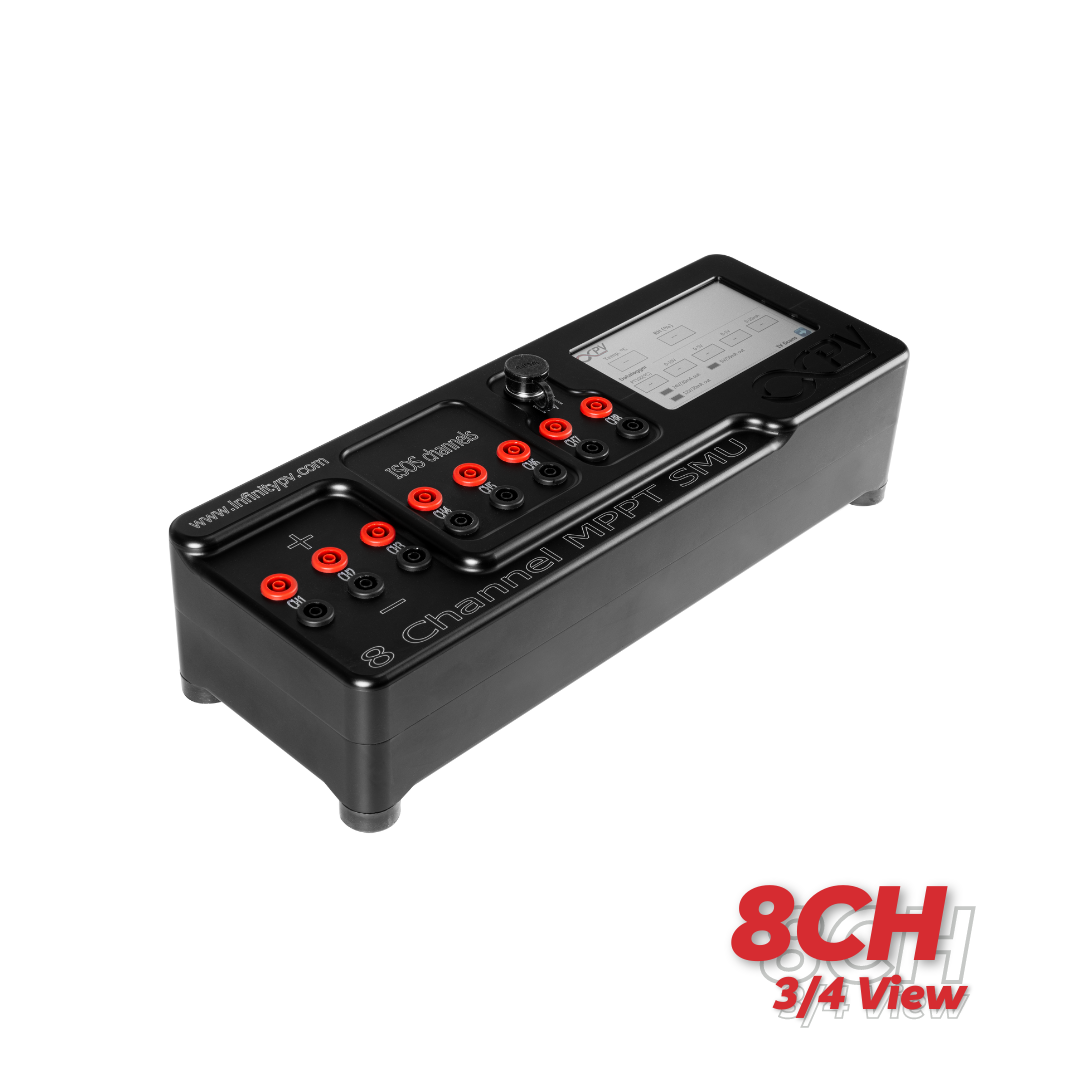

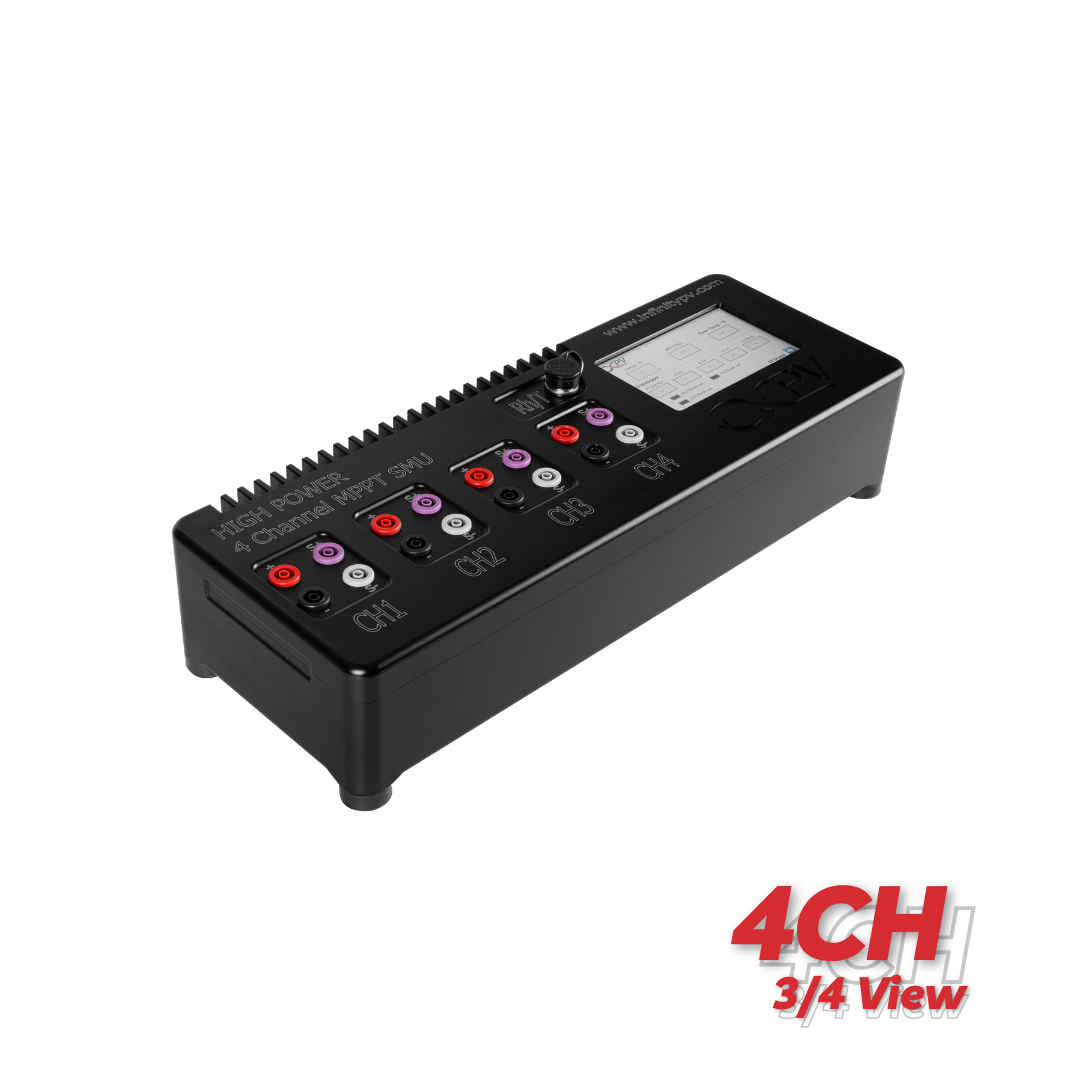

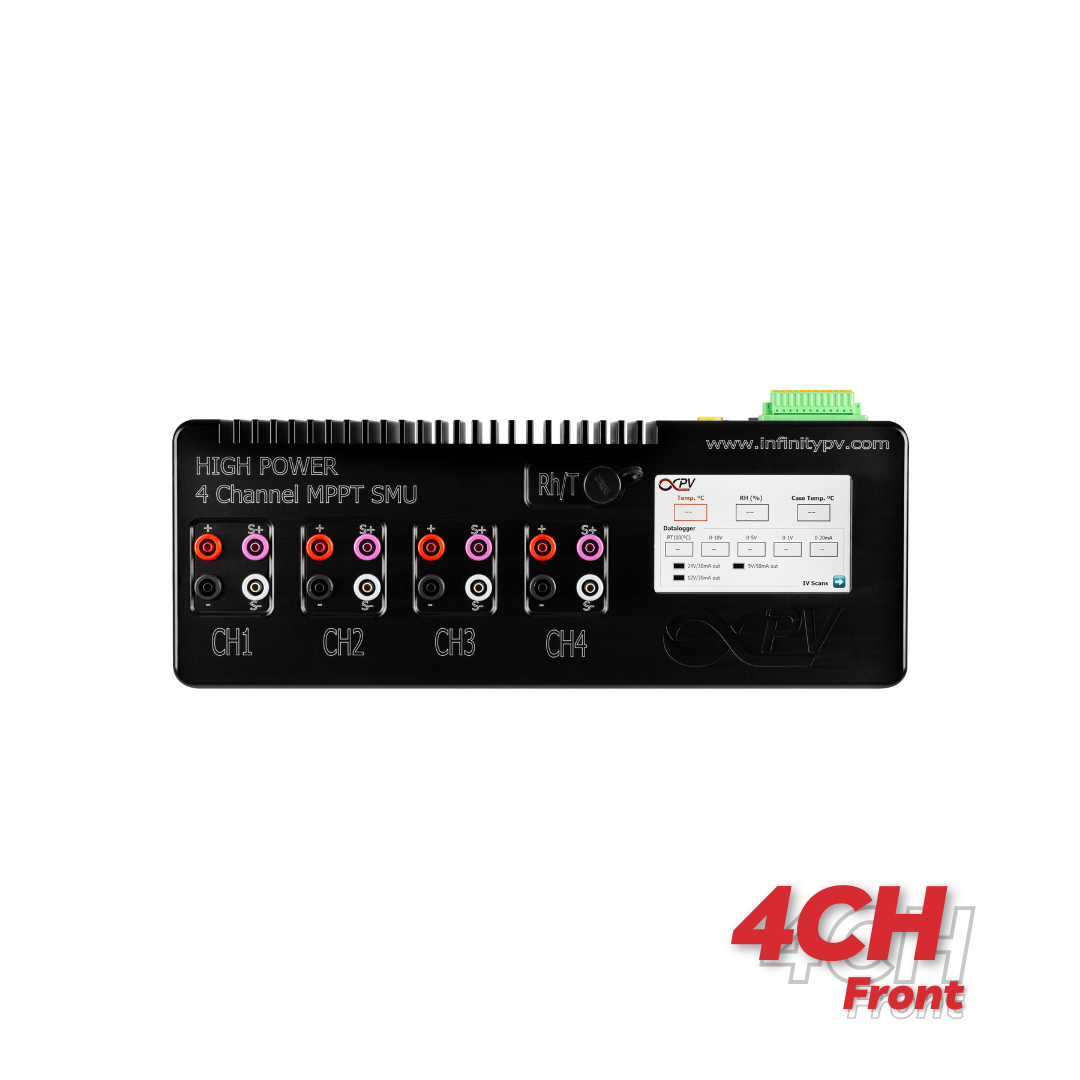

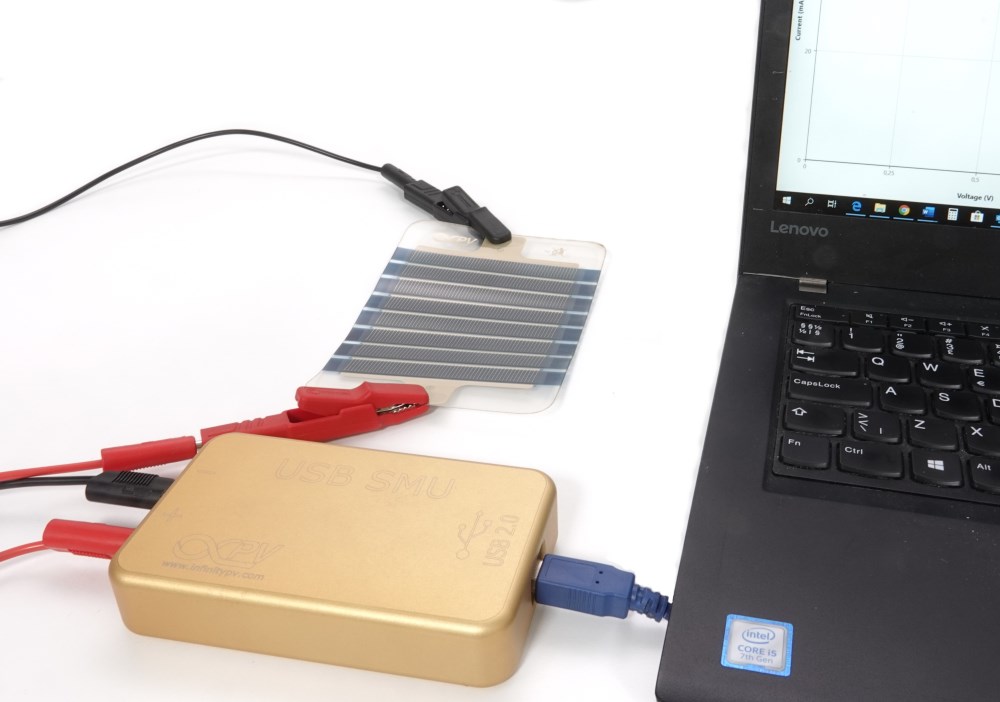

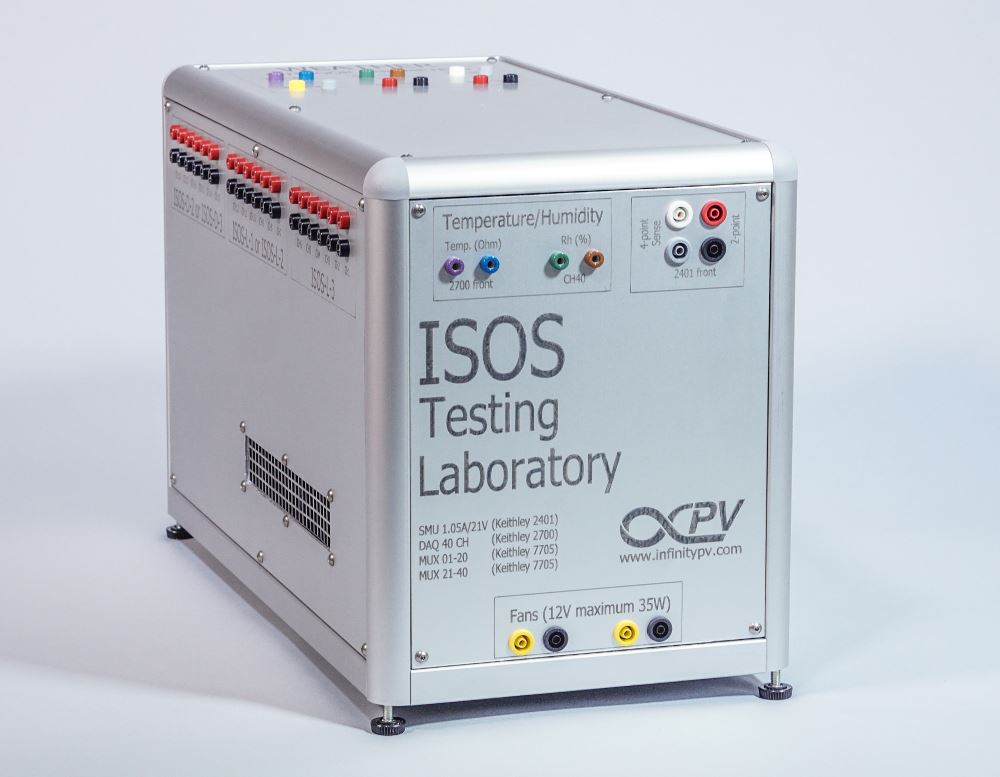

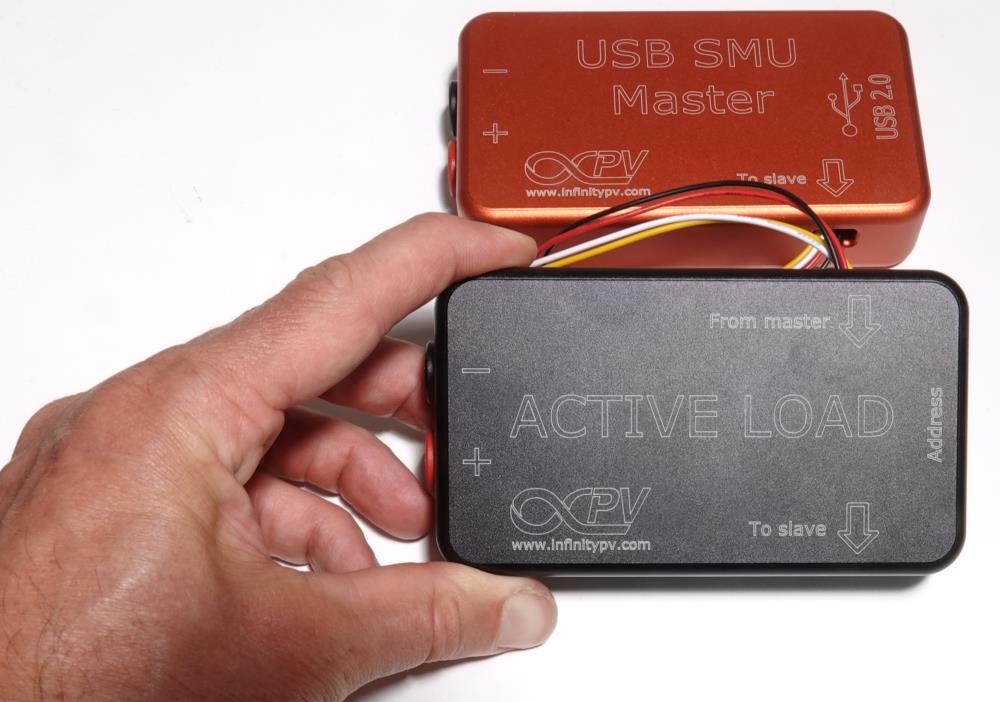

There are five overall SMU options: USB SMU, Low volatge SMU, High volatge SMU, High power SMU and ISOS testing SMU. Each option offers a high degree of customization.| USB SMU | Low voltage SMU | High voltage SMU | High power SMU | ISOS testing SMU | |
| Voltage range [V] | -4 to +4 | -4 to +4 | 0 to 1000 | up to 600 | -20 to +20 |
| Current range [mA] | -40 to +4 | -40 to +4 | -60 to 0 | 0 to 2500 | 0 to 1000 |
| IV scan in | 3rd to 4th Quadrant | 3rd to 4th Quadrant | 4th Quadrant | 4th Quadrant | All Quadrants |
| Resolution | 16 bit | 16 bit | 12 bit | 12 bit | 16 bit |
| Source/Sink Limit | 40 mA | 40 mA | <250 mA | <5 A* | 1 A |
| No. of channels | 1 (up to 4 with active loads) |
1 or 16 | 1 or 16 | 1 or 16 | 40 |
| Multiplexed | Optional | Yes | Yes | Yes | Yes |
| Weather channels | No | Temp. and humidity | No | No | 8 channels for indoor and outdoor weather measurements |
| Active load option (4V/40MA) | Yes | Yes | Yes | Yes | No |
| Touch screen control | No | Yes | Yes | Yes | No |
| PC control | Yes | Yes | Yes | Yes | Yes |

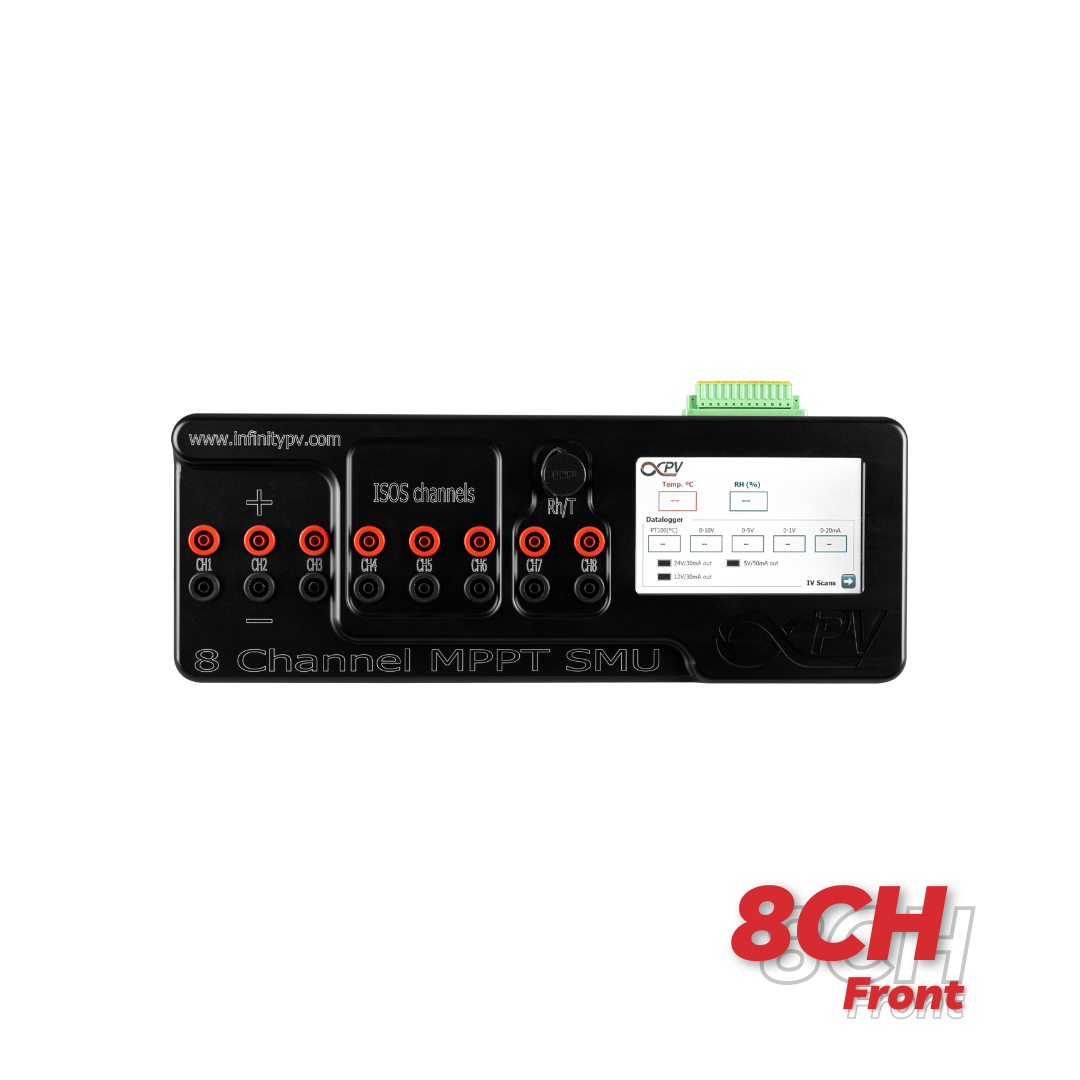

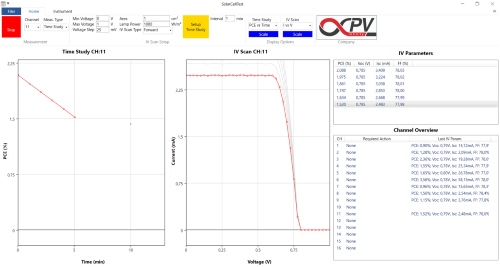

| Software | IV characterization and lifetime measurement with MPPT option | IV characterization and lifetime measurement with MPPT option | IV characterization and lifetime measurement with MPPT option | IV characterization and lifetime measurement with MPPT option | IV characterization and lifetime measurement |
| Stand alone | Yes | No | No | No | No |
