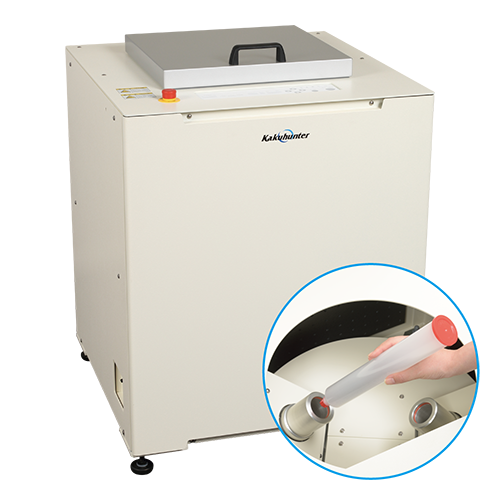

Planetary Mixer

A planetary centrifugal mixer specifically for long barrel cartridges, on which 12 oz (360 ml) and 6 oz (180 ml) cartridge can be set.

• The individual revolution and rotation speed control system achieves uniform mixing of materials in short amounts of time and elimination of ultrafine air bubbles.
• Productivity and operability can be improved by using cartridges with sizes suited for the amount to be produced (12 or 6 oz).
  * An exclusive adapter (spacer) is required to use 6 oz cartridges.





Specifications

Cup size	Standard size is 12oz. 6oz require adapter. Long cartidge × 2pcs
Speed of revolution	Settable in 9 steps
Speed of rotation	Settable in 10 steps
Settable time	Maximum 25 minutes. (5 Step total), 1 step max is 900 seconds
Step mode	5 Steps Enables to do continuous operation (condition setup) for 5 different kinds of movement
Memory channel (condition setting memory) User settable channels Fixed data channels	90CH 10CH
Power supply voltage	Three phase AC380-415VAC 50/60Hz
Power consumption	2.5kW
External dimensions	W646 × D663 × H851(mm)
Main unit weight	About 225kg
