Planetary Mixer

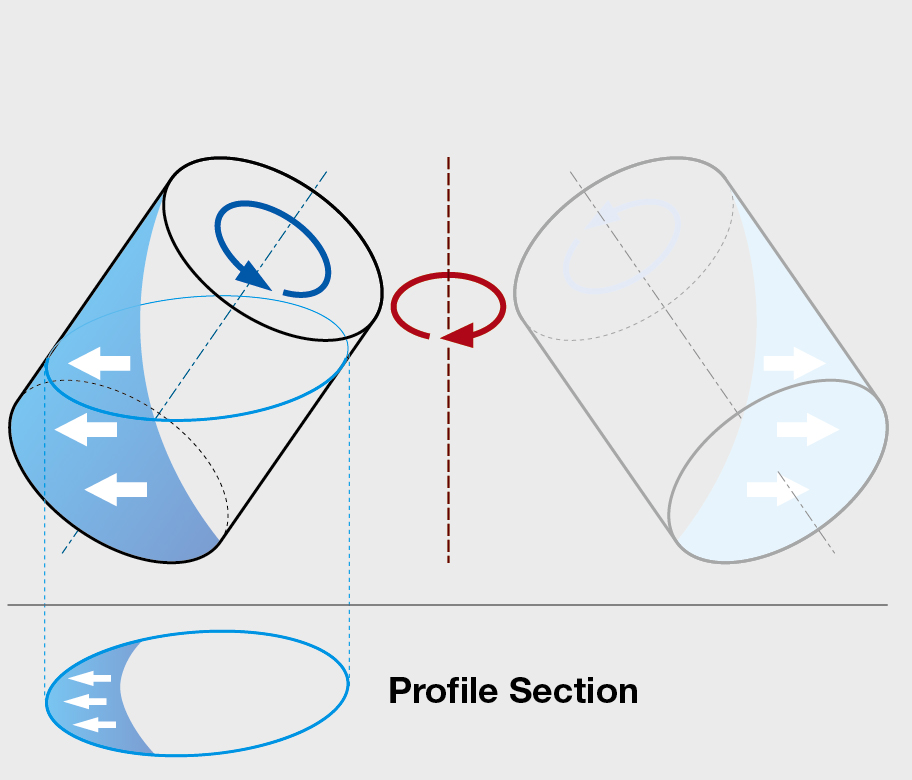

90 different revolution-rotation speed patterns are available by varying the ratio of revolution and rotation.
A high function model for covering from research and development to small-scale production.

400 ml × 2 cups  Compatible with various types of syringes



Advanced functions added to the basic model equipped with the individual revolution and rotation speed control system

SK-350TII is equipped with a function allowing the speeds of revolution and rotation to be set separately. By using 2 cups with a 400 ml capacity and weighing a maximum of 350 grams, up to 700 grams of material can be mixed and degassed.
A new high speed mode and a separation prevention mode which sustain separation of materials with different specific gravities (such as powder materials and liquids) have been added, providing advanced functions in addition to the basic functions.

* The maximum weight depends on the properties of the material. This weight includes containers and adapters.



Features common to standard models

• Advanced model equipped with the individual revolution and rotation speed control system
• Carry out mixing of various materials of low to high viscosity in a short time( tens of seconds to several minutes)
• Optimum settings enables user to achieve continuous operation. (5 steps)
• Revolution and rotation can be set individually, so various types of materials can be handled.
• There are no propellers and it does not need to clean the machine. In addition, there is no loss of materials.



Specifications

Cup size	Maximum 350g (Gross Weight)x 2cups Various syringes

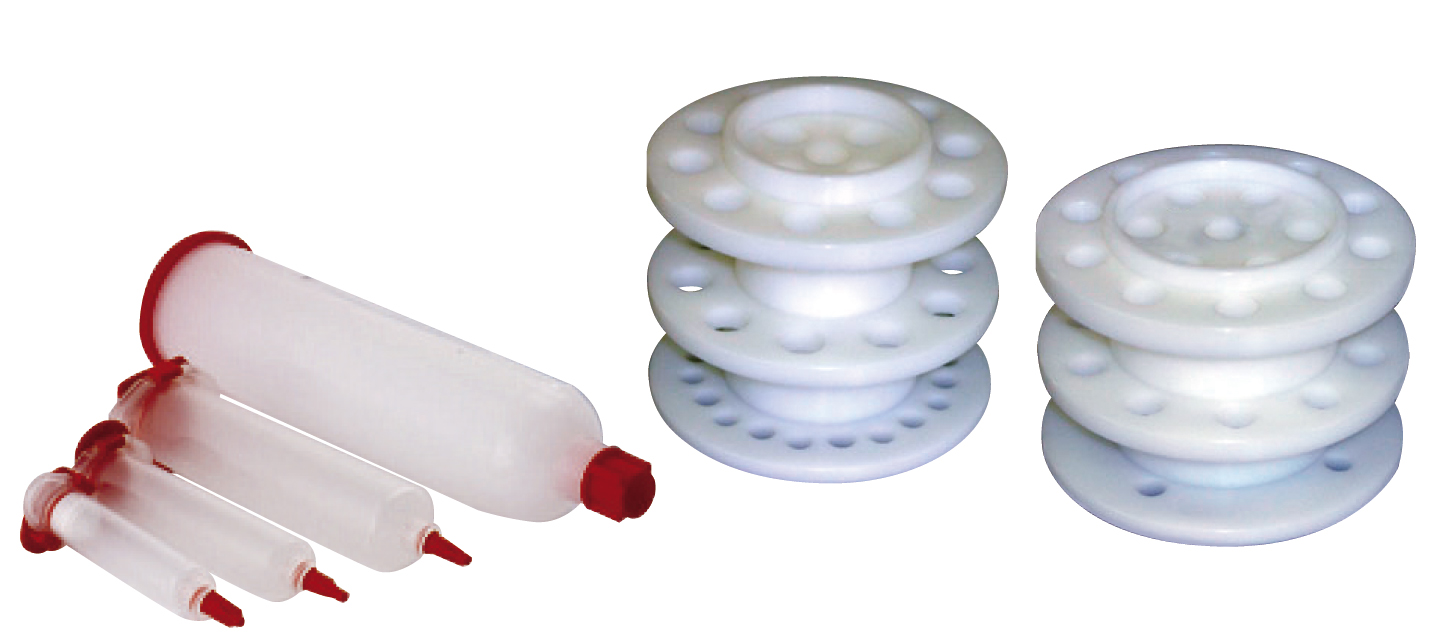

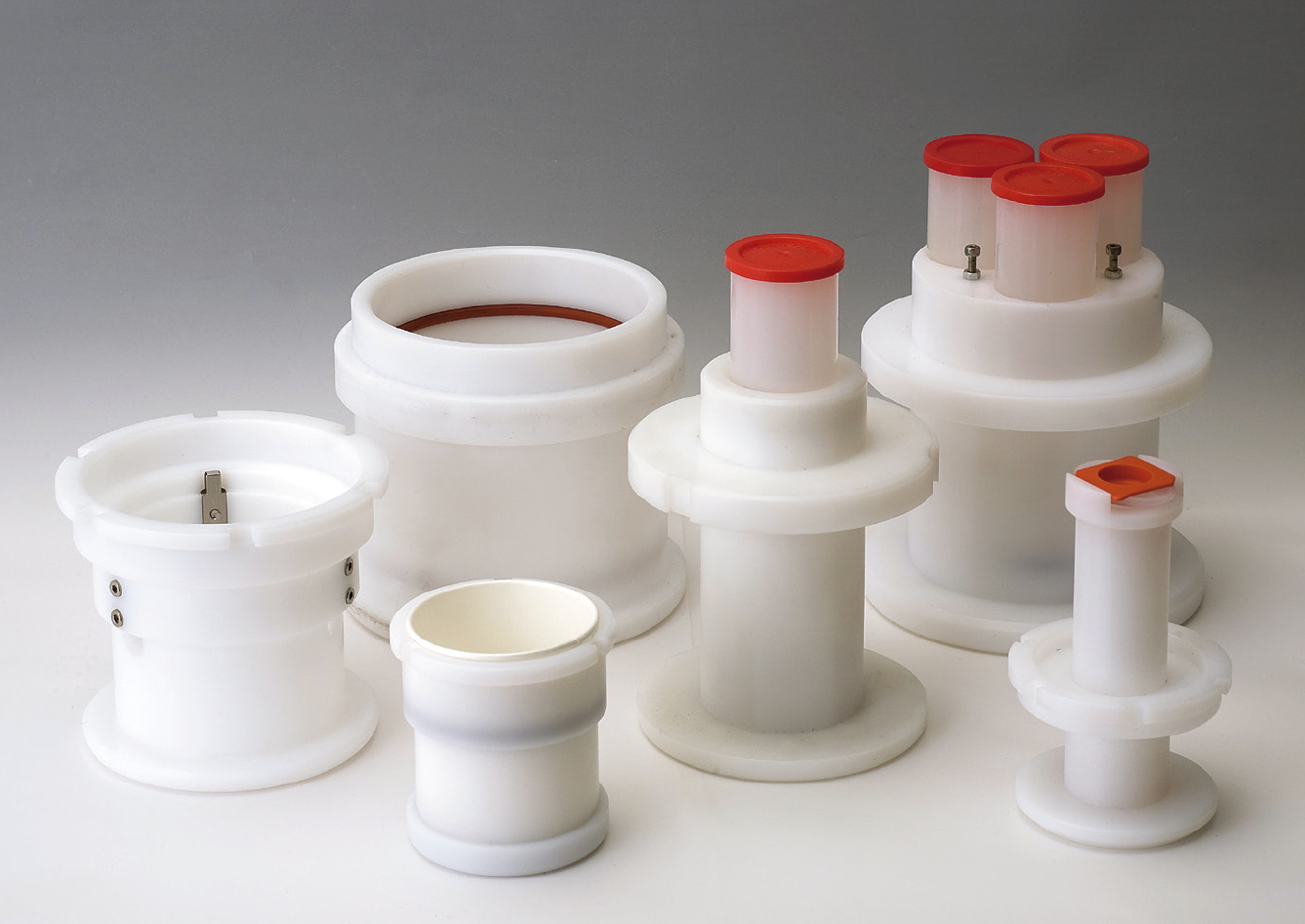

Other containers	Multiple containers and syringes can be used by using an adapter.
Speed of revolution	Settable in 9 steps
Speed of rotation	Settable in 10 steps
Settable time	10-300 sec. × 5 steps
Step mode	5 steps Continuous operation with 5 different operation patterns (condition settings) is possible
Memory channel (condition setting memory) User settable channels Fixed data channels	90 10
Power supply voltage	Single phase AC200-240VAC 50/60 Hz
Power consumption	About 1,380W
External dimensions	W400 × D482 × H495(mm)
Main unit weight	Approx. 50kg
