Planetary Mixer

• Maximum processing amount 2 kg x 2 cups
• An order-made mixer compatible with the containers the client currently uses.
• Maximum compatible container size: 150 mm diameter x 170 mm height

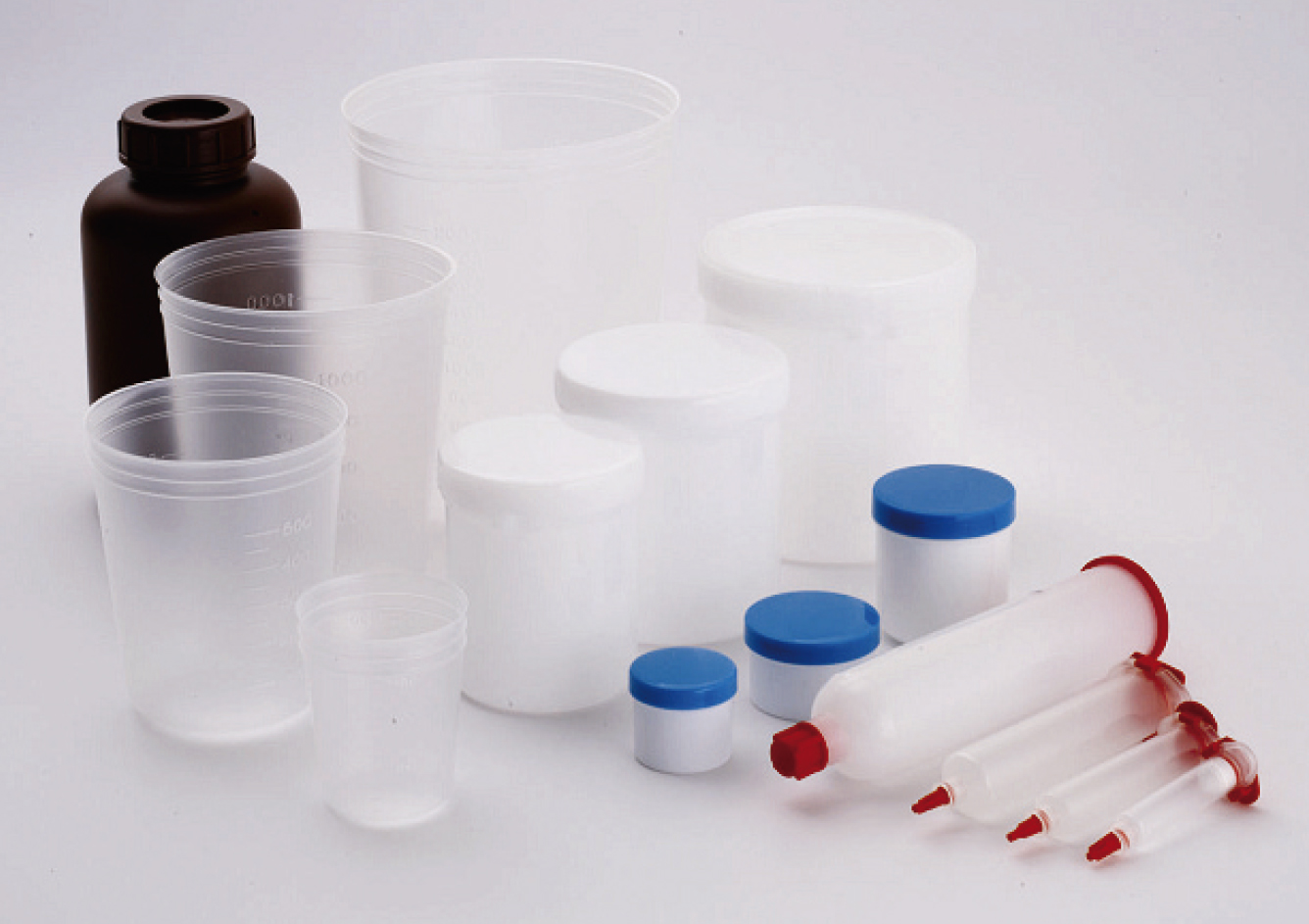

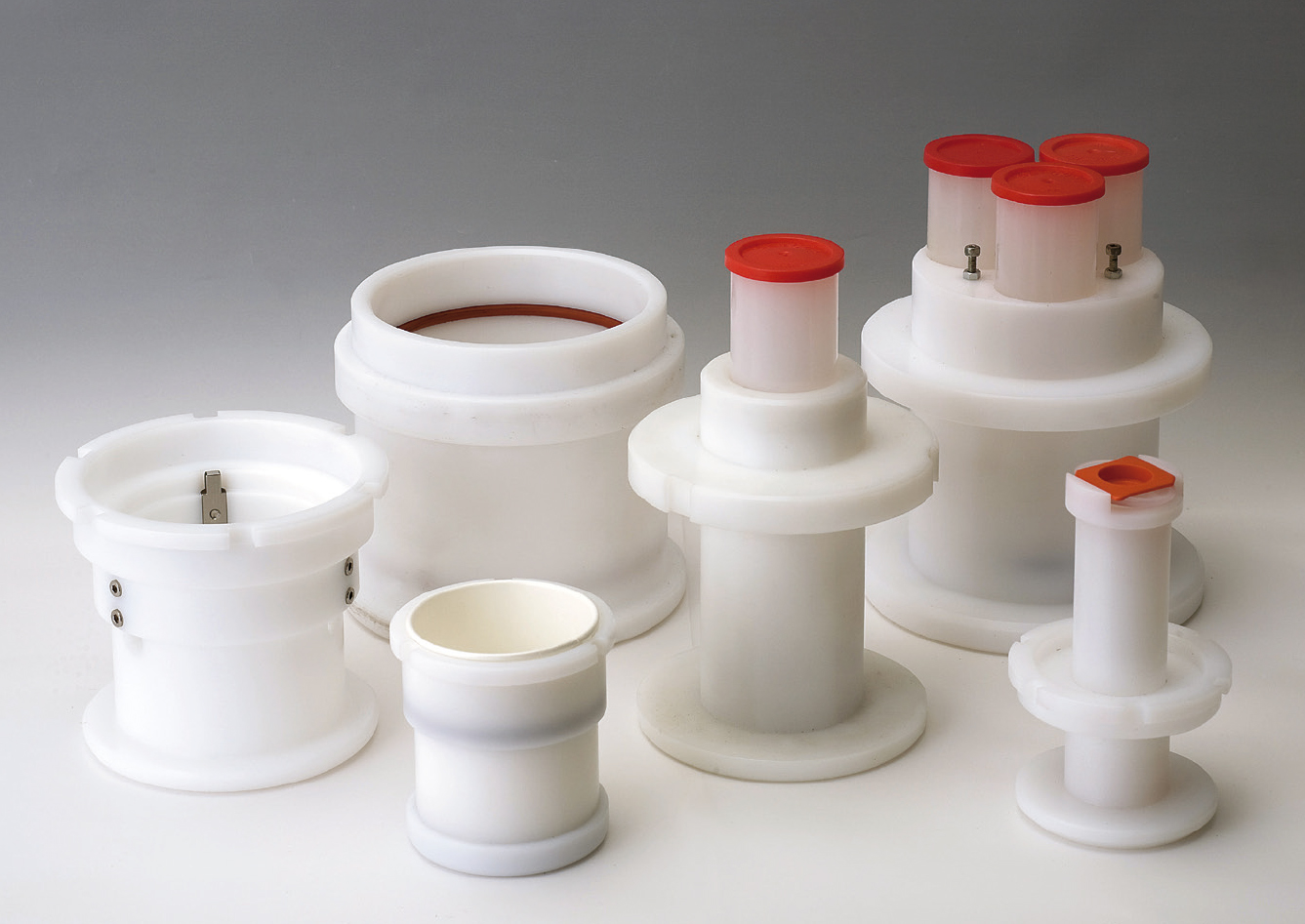

• Multiple containers can be loaded by using an adapter, and loss of material is reduced by selecting containers according to the production amount.
• It enables to have certain throughput without adapters.

2000ml × 2 cups (2kg)



Features common to standard models

• Advanced model equipped with the individual revolution and rotation speed control system
• Carry out mixing of various materials of low to high viscosity in a short time( tens of seconds to several minutes)
• Optimum settings enables user to achieve continuous operation. (5 steps)

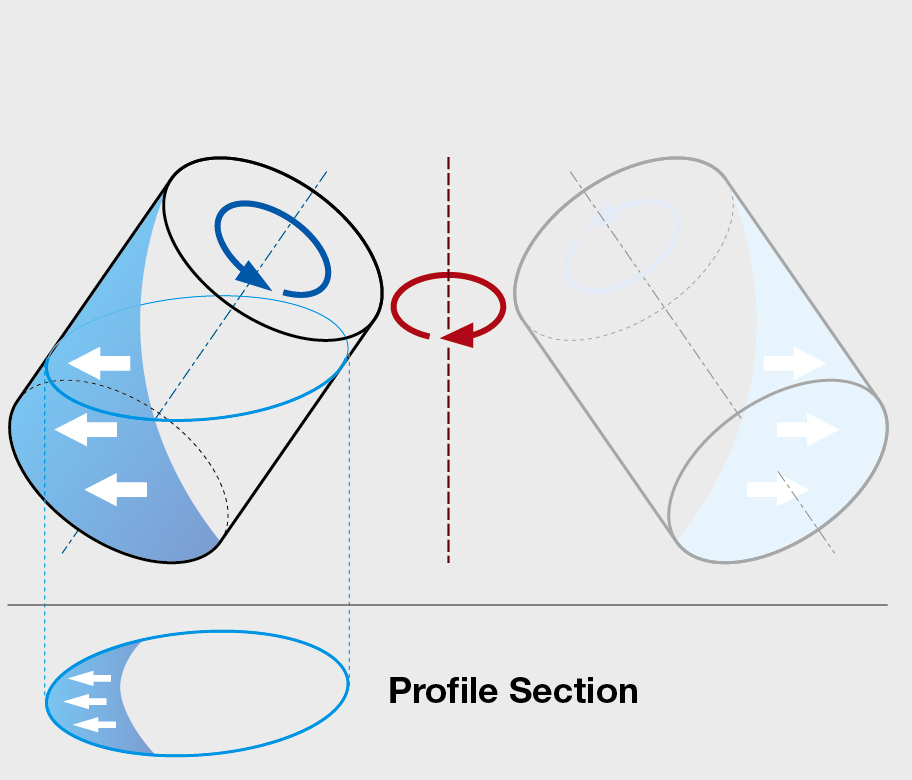

• Revolution and rotation can be set individually, so various types of materials can be handled.
• There are no propellers and it does not need to clean the machine. In addition, there is no loss of materials.



Specifications

Cup size	Maximum 2kg (Gross Weight)x 2cups
Other containers	Multiple containers and syringes can be used by using an adapter.
Speed of revolution	Settable in 9 steps
Speed of rotation	Settable in 10 steps
Settable time	Maximum 25 minutes. (5 Step total), 1 step max is 900 seconds
Step mode	5 steps Continuous operation with 5 different operation patterns (condition settings) is possible
Memory channel (condition setting memory) User settable channels Fixed data channels	90 10
Power supply voltage	Three phase AC380-415VAC 50/60Hz
Power consumption	2.5kW
External dimensions	W646 × D663 × H851(mm)
Main unit weight	Approx. 225kg
