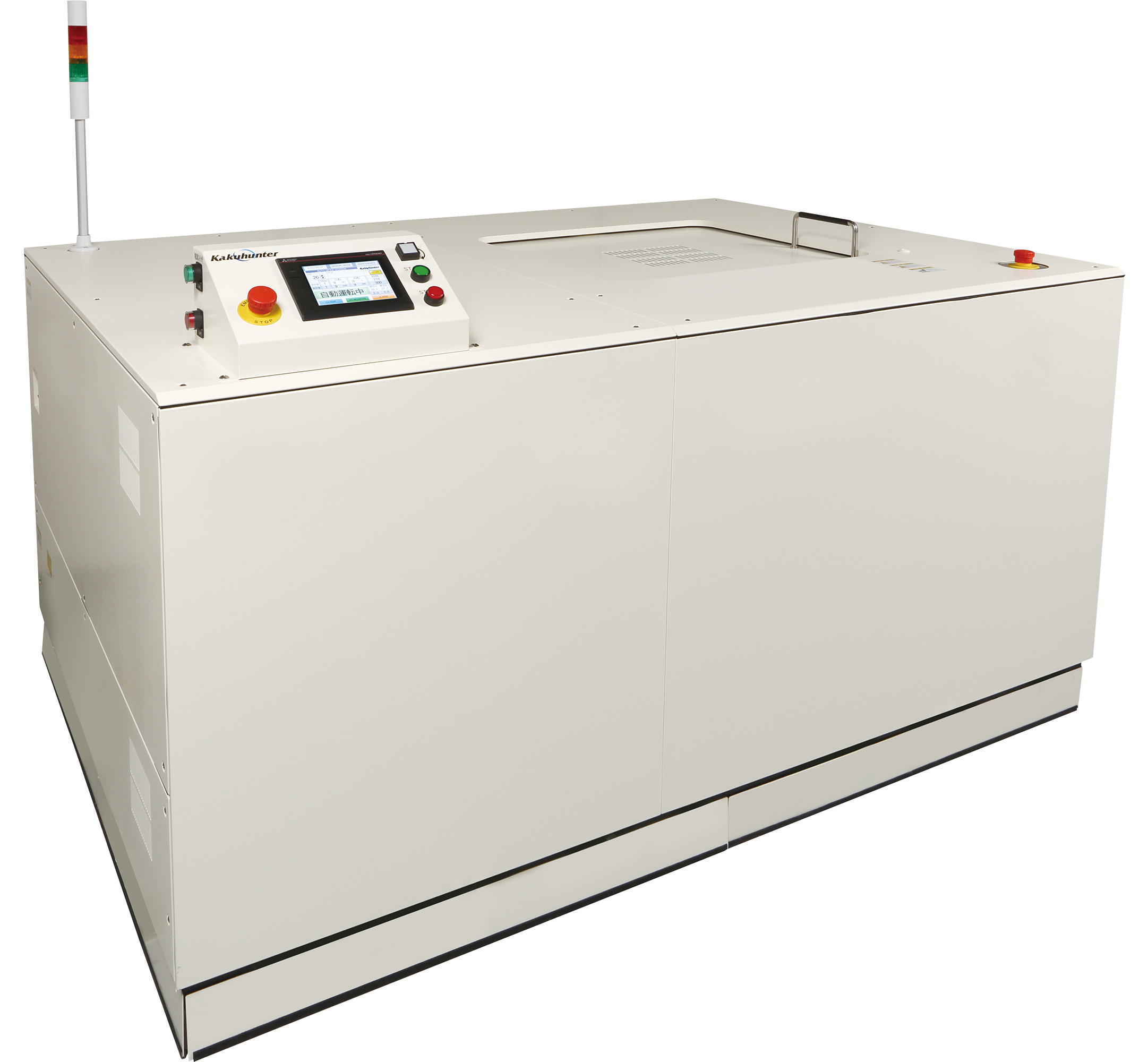

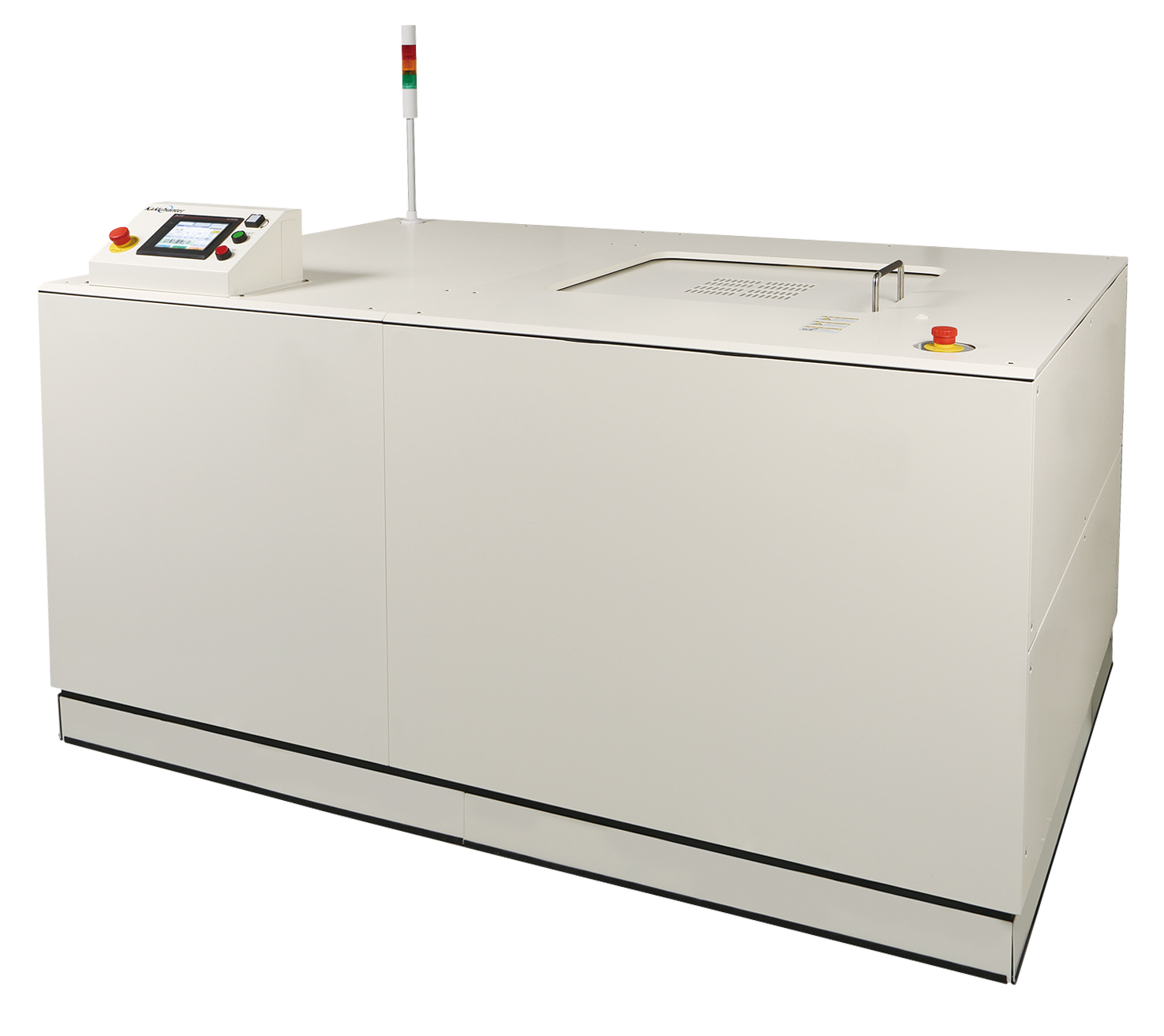

SK-10000T / SK-10000TV - Planetary Centrifugal Mixer
SK-10000T / SK-10000TV Planetary Centrifugal Mixer is a new released mass production model 20kg models for non-vacuum or vacuum type up to customer's requirement.
WhatsappOverview
New released mass production model 20kg models for non vacuum or vacuum type up to customer's requirement.
- Revolution/Rotation individually speed can be controlled. (Rotation: 0-1.0 times speed changeable)
- Max 20kg gross weight (10Kg x 2) throughput mass production model.
- Customize model which 7,000ml standard container as well as specific container can be correspond.
Specifications
| SK-10000T | SK-10000TV | |
|---|---|---|
| Type | Standard type | Vacuum equipped type |
| Container | 7000ml HDPE container or SUS container | |
| Max capacity | 10kg(Including container) x 2 cups | |
| Revolution speed | 100 - 400 rpm, 9 levels | |
| Rotation speed | 0 -1.0 times against Rev speed, 10 levels | |
| Setup time | 10 -300 sec (10 decimal sec) | |
| Step mode | 1- 5 Step | |
| Memory Channel | Fixed CH: 10CH User settable CH: 90CH |
|
| Power source | Three phase 200 -240V, 50/60Hz | |
| Electric | Max 20KVA | |
| consumption Outer dimension |
W1,900xD1,300xH980 mm | W1,900×D1,300×H980 mm (Vacuum pump excluded) |
| Electric | Approx. 1,500kg | Approx. 1,500kg (Vacuum pump excluded) |
* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
