Data Loggers & Sensors

Overview

Maximum reliability and unprecedented ease-of-use

• Smart-Sensor technology stores all calibration information directly in on-board memory, including calibration correction coefficients (a/b or a/b/c), measurement uncertainty after calibration, drift after 1 year, and sensor serial number
• Plug-and-play operation for immediate use with no configuration required
• At recalibration time, swap with a freshly calibrated, ready-to-use sensor without any data loss or down-time
• All-digital technology for maximum consistency and reliability

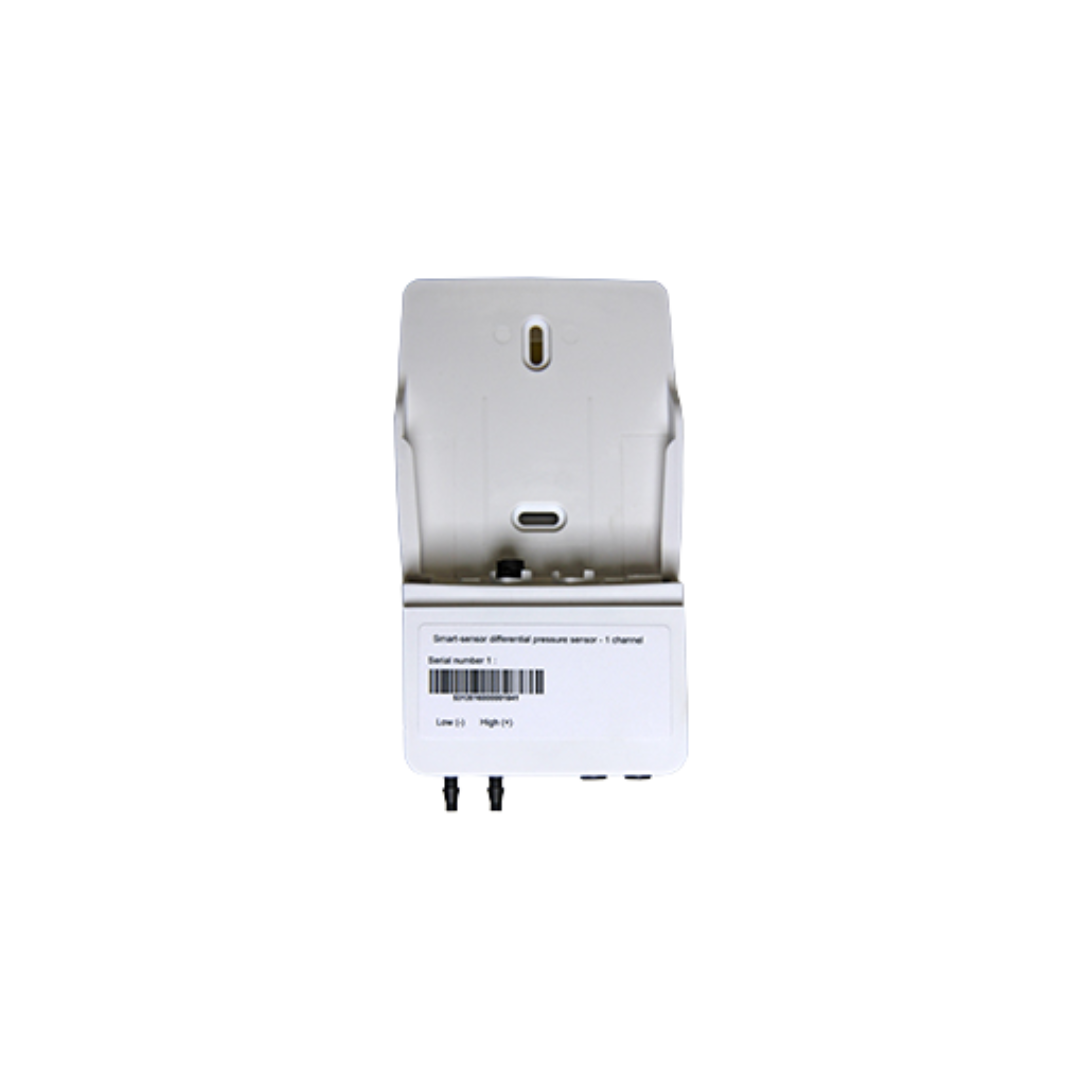

Single differential pressure Smart-Sensor (-500 Pa to +500 Pa), it measures the difference in pressure between two zones, such as a high-pressure cleanroom and “regular” room or hallway.

• One sensor
• -500 to +500 Pa (-2.0 to +2.0 inches H2O)
• Tube: L: 50 cm, Ø 4 mm (4-5 mm adapter included)
• Full compatibility: air, Nitrogen
• Limited compatibility: O2
• Supported overpressure: 1 bar (100 kPa, 400 inches H2O)



Related Products

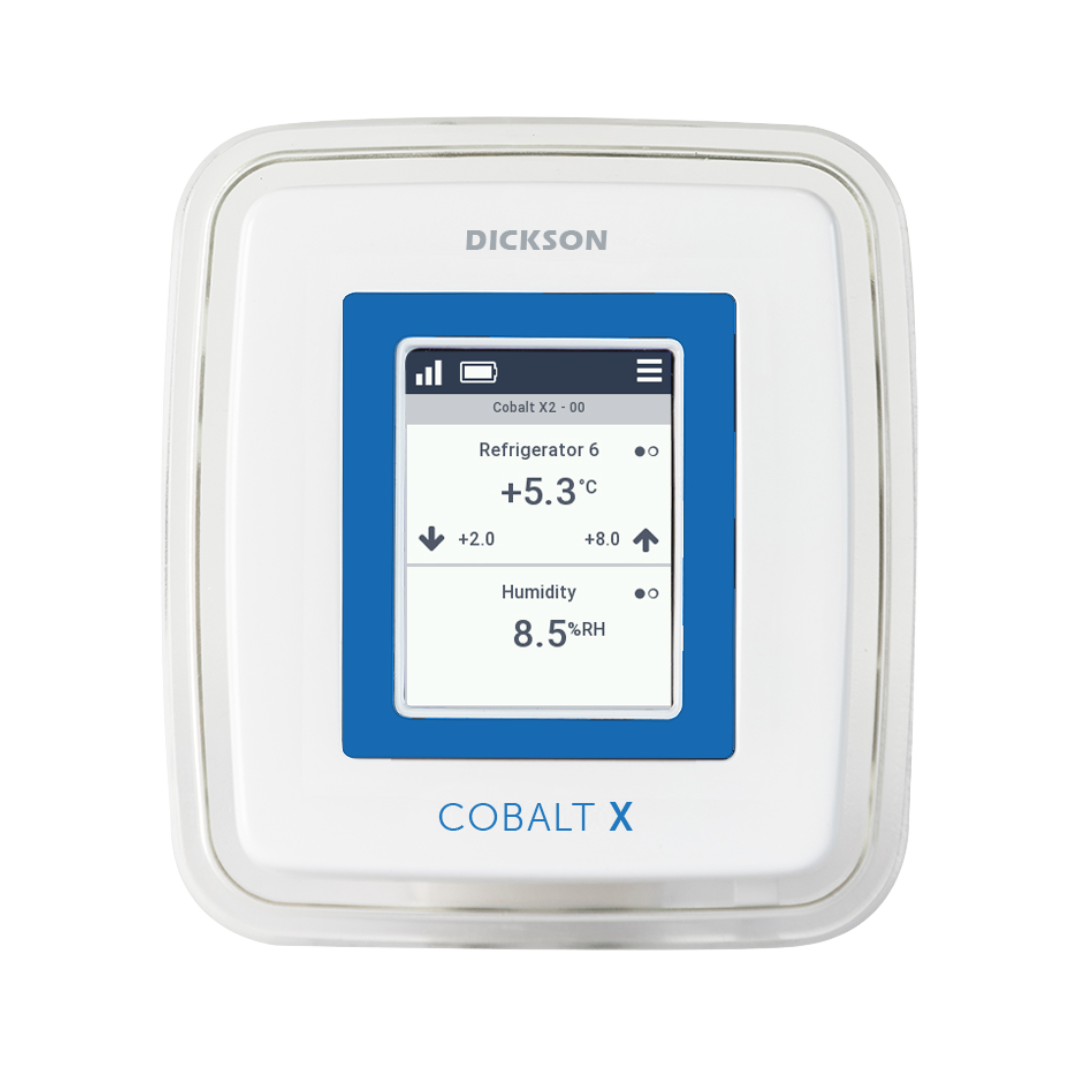

• Cobalt X1 Data Logger
