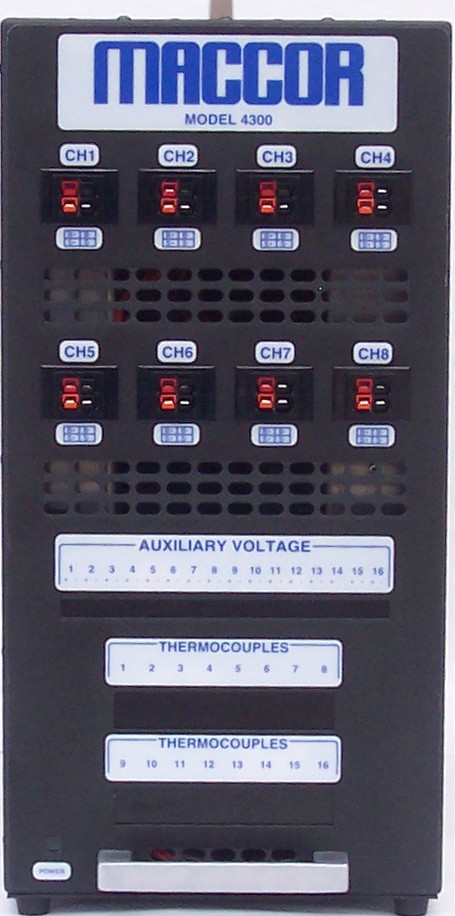

Battery Test System

Standard Features and Functions

• Adaptable To A Wide Range Of Products (i.e. batteries, super-capacitors, fuel cells, etc.) And Battery Chemistries
• Easily Scalable To Support Capacity Expansion At Acceptable Costs
• Easy To Use And Maintain Minimizing Labor Force
• Customizable To Meet Varying And Evolving Customer Requirements
• Easily Adaptable To Meet A Wide Range Of Testing Needs
• Each Test Station Operates Independently Of The Other Positions
• Can Be User Programmed To Operate In Steps Of Constant Current, Constant Power, Constant Voltage, Constant Resistance, or Voltage Scan (Cyclic Voltammetry).
• With the MIMS Client software, data is easily viewed graphically with different standard graphs. Several Chart types may be displayed at the same time with the ability to store the display settings as a template. Data from different devices may be overlaid on a single chart or viewed side-by-side.

Specifications

Configuration	1, 2, 4, or 8 channels
Current
Current Range	Per Your Specifications, currents up to 15 Amps available †
Maximum System Charge Current	Per Your Specification, up to 120 Amps
Minimum Full Scale Current	Per Your Specifications, 150 µAmps available
† Higher channel currents (up to a maximum of 120 Amps) can be supplied on systems with fewer channels.
Voltage
Minimum Measurement	-2 Volts ‡
Measurement Range	Per Your Specifications, voltages up to 96 volts available
‡ Lower minimum measurements can be attained. These would need to be discussed and agreed upon.
Power
Maximum System Charge Power	800 Watts
Maximum System Discharge Power	1200 Watts
Time
Minimum Step Time	10 mS*
Control, Measurement, and Adjustment	every 10 mS
