Coating Unit

Start Up Your OLED Research

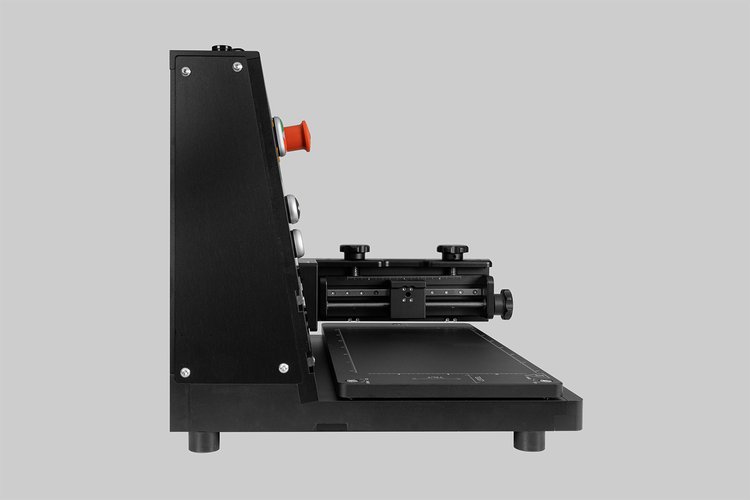

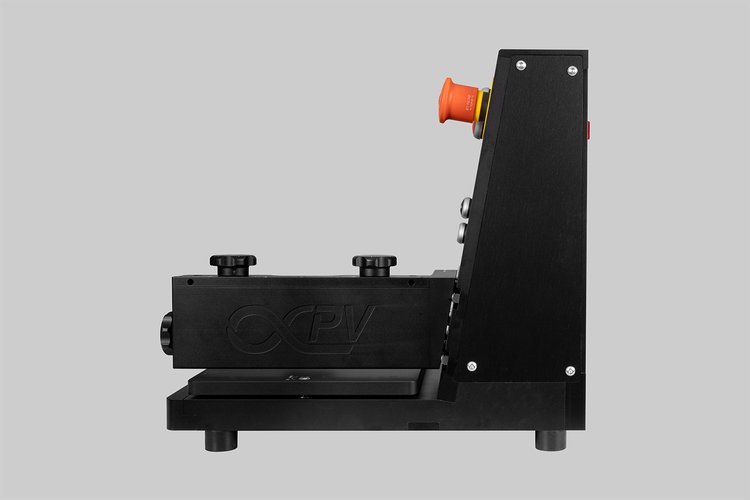

The SDC OLED Coater, built on the Slot-die Coater platform, is an exceptional tool for researchers focused on the development and optimization of OLED materials at the laboratory scale. This advanced slot-die coating technology offers precise control over film thickness, enabling processing of emissive layers and all other layers in the device stack.



What’s Included:

• Slot-die Coater Pro: State-of-the-Art Slot-Die Coater for Advanced Thin-Film Applications

• Advanced Mounting System: Advanced positioning of the slot-die heads

• Heated Vacuum Chuck: Integrated heated vacuum chuck for workholding of thin foils and convenient drying of processed thin films

• Jumbo Syringe Pump: For smooth ink delivery to the slot-die head

• 165 Stainless Slot-die head (150 mm working width): Ensures uniform and high-quality coating results

• Fitting Kit (High viscosity)



Key Features

• Quick Set-Up and Easy Operation

• Modular Design with interchangeable components

• Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.

• Cantilever Structure for convenient substrate handling

• Integrated Syringe Pump for precise ink delivery

• Versatile Coating/Printing Options: Slot-Die Coating, Bar Coating, Knife Coating, Pen, and Flexo Printing

• CE Certified - CSA/UL Compliant: Meets international safety standards



Technical Specifications

• Operating Power: 110-240 VAC

• Coating Speed: 1.2–33 mm/sec

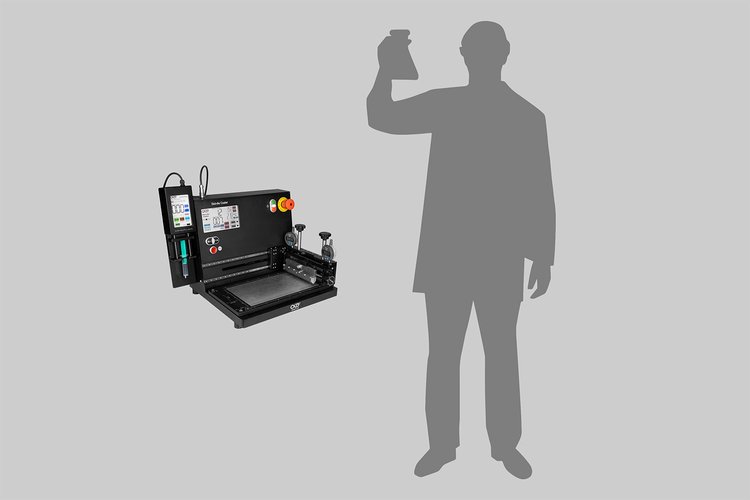

• Size: 340 x 420 x 400 mm (WxDxH)

• Weight: 24 kg

• Height Adjustment Resolution: 1 μm

• Control Interface: Touchscreen and physical buttons for easy operation
