Coating Unit

Unlocking Fuel Cell Innovation

The SDC Fuel Cell Pro, built on the Slot-die Coater platform, is an outstanding tool for researchers dedicated to the development and optimization of fuel cell materials at the laboratory scale. This innovative slot-die coating technology provides precise control over coating thickness, allowing for tailored electrode slurries that enhance performance. Additionally, the vacuum chuck feature guarantees a smooth and even coating surface, making it an essential resource for advancing fuel cell research and development.



What’s Included:

• Slot-die Coater Pro: State-of-the-Art Slot-Die Coater for Advanced Thin-Film Applications

• Advanced Mounting System: Advanced positioning of the slot-die heads

• Heated Vacuum Chuck: Integrated heated vacuum chuck for workholding of thin foils and convenient drying of processed thin films

• Jumbo Syringe Pump: For smooth ink delivery to the slot-die head

• 165 Stainless Slot-die head (150 mm working width): Ensures uniform and high-quality coating results

• Fitting Kit (High viscosity)



Key Features

• Quick Set-Up and Easy Operation

• Modular Design with interchangeable components

• Compact Size: Fits in laboratories, gloveboxes, or fume hoods without additional infrastructure.

• Cantilever Structure for convenient substrate handling

• Integrated Syringe Pump for precise ink delivery

• Versatile Coating/Printing Options: Slot-Die Coating, Bar Coating, Knife Coating, Pen, and Flexo Printing

• CE Certified - CSA/UL Compliant: Meets international safety standards



Technical Specifications

• Operating Power: 110-240 VAC

• Coating Speed: 1.2–33 mm/sec

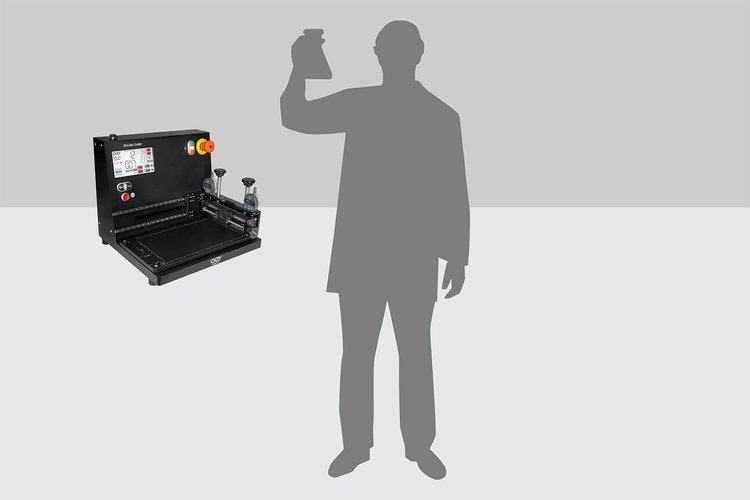

• Size: 340 x 420 x 400 mm (WxDxH)

• Weight: 24 kg

• Height Adjustment Resolution: 1 μm

• Control Interface: Touchscreen and physical buttons for easy operation
