Forensic Lab Equipment

Overview

• Choose from multiple sizes, from bench top to floor standing.
• Multi-chamber cabinets available.
• Caster wheels standard on all models except bench top series.
• Optional UV Lamp decontamination.
• Optional side and rear windows for 360° view of development.



Technical Info

External Dimensions

Model	Width	Depth	Height
CA24S-A	24" | 610 mm	17.25" | 705 mm	24" | 610 mm
CA30S-A	30" | 762 mm	28" | 711 mm	48" | 1220 mm
CA48S-A	48" | 1219 mm	28" | 711 mm	48" | 1219 mm
CA60S-A	60" | 1524 mm	28" | 711 mm	48" | 1219 mm
CA30T-A	30" | 762 mm	28" | 711 mm	74.88" | 1902 mm
CA48T-A	48" | 1219 mm	28" | 711 mm	74.88" | 1902 mm
CA60T-A	60" | 1524 mm	28" | 705 mm	74.88" | 1902 mm
CATRI-A	60" | 1524 mm	27.75" | 705 mm	75" | 1905 mm
CAQUAD-A	60" | 1524 mm	27.75" | 705 mm	75" | 1905 mm
CA72XL-A	72" | 1829 mm	48" | 1219 mm	86" | 2184 mm



Internal Dimensions

Model	Width	Depth	Height
CA24S-A	-	-	12.75" | 325 mm
CA30S-A	-	-	36" | 914 mm
CA48S-A	-	-	36" | 914 mm
CA60S-A	-	-	36" | 914 mm
CA30T-A	-	-	57.24" | 1454 mm
CA48T-A	-	-	57.24" | 1454 mm
CA60T-A	-	-	57.24" | 1454 mm
CATRI-A	-	-	2 @ 24, 1 @ 57.25" | 2 @ 610, 1 @ 1454 mm
CAQUAD-A	-	-	4 @ 24" | 4 @ 610 mm
CA72XL-A	-	-	1 @ 80" | 1 @ 2032 mm



Filter Options

Formula	Description
GP Plus!	The most widely used filter in the range, primarily for solvent, organic and alcohol removal.



Applications

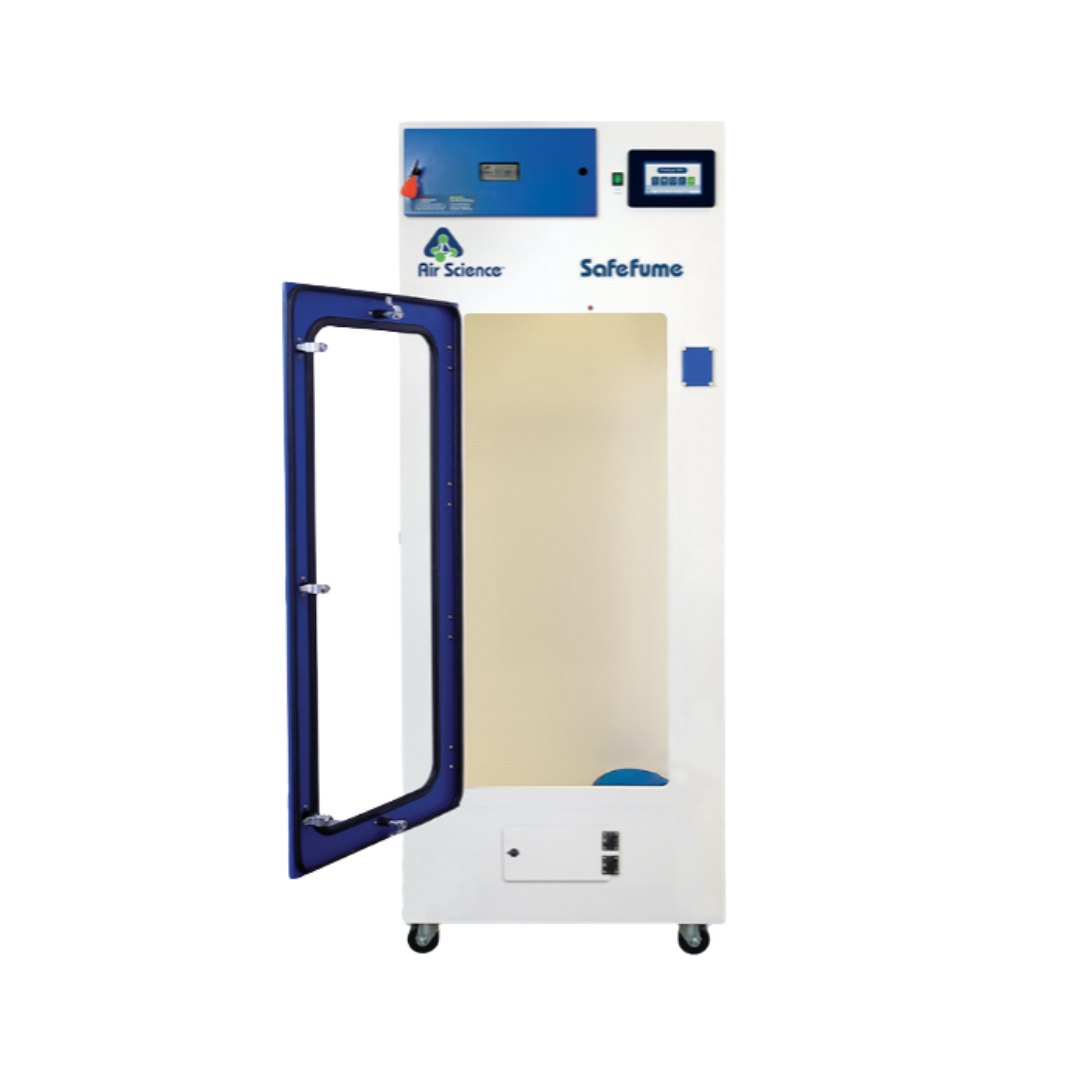

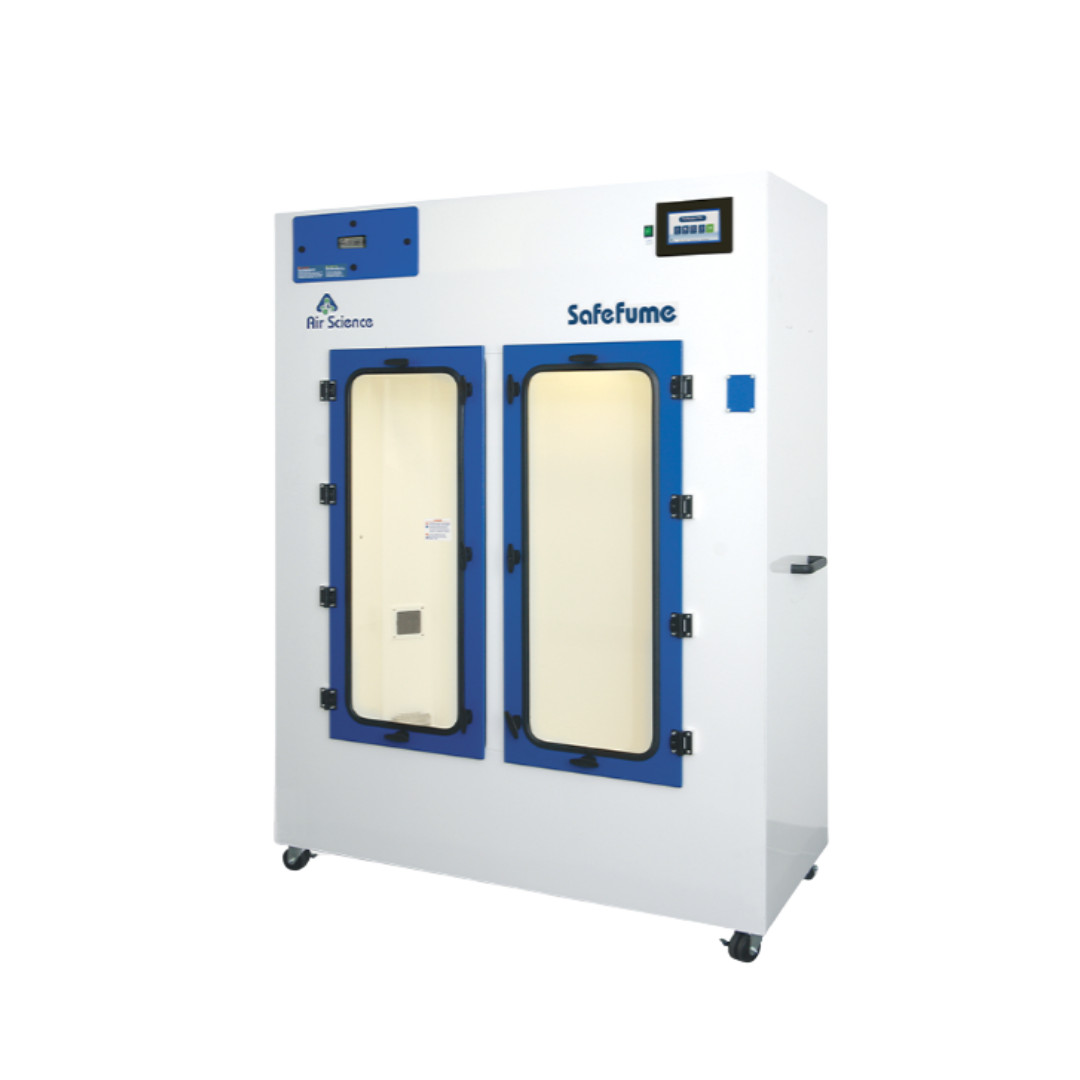

Using innovative filtration technology, the Safefume cyanoacrylate fuming chamber creates a safe work environment over the widest range of applicationsin the industry.

State and Federal Crime Laboratories \ Crime Scene Investigation \ Law Enforcement Agencies \ Medical Examiners' Programs \ Criminal Justice Education
