Forensic Lab Equipment

Overview

• Optional side and rear windows for 360° view of development.
• Choose from multiple sizes, from bench top to floor standing.
• Multi-chamber cabinets available.
• Caster wheels standard on all models except bench top series.
• Optional UV Lamp decontamination.
• Evidence is easily positioned inside the chamber using the adjustable hanging rods.
• Cyanoacrylate is placed within the chamber and starting the cycle triggers the automated system that controls the hot plate, cabinet humidity, door lock, internal circulation fan, and purge cycle.
• The recirculatory design requires no ducting for setup.
• Cyanoacrylate vapors are filtered by a special carbon filter that ensures no dangerous substances are exhausted into the atmosphere air supply.



Technical Info

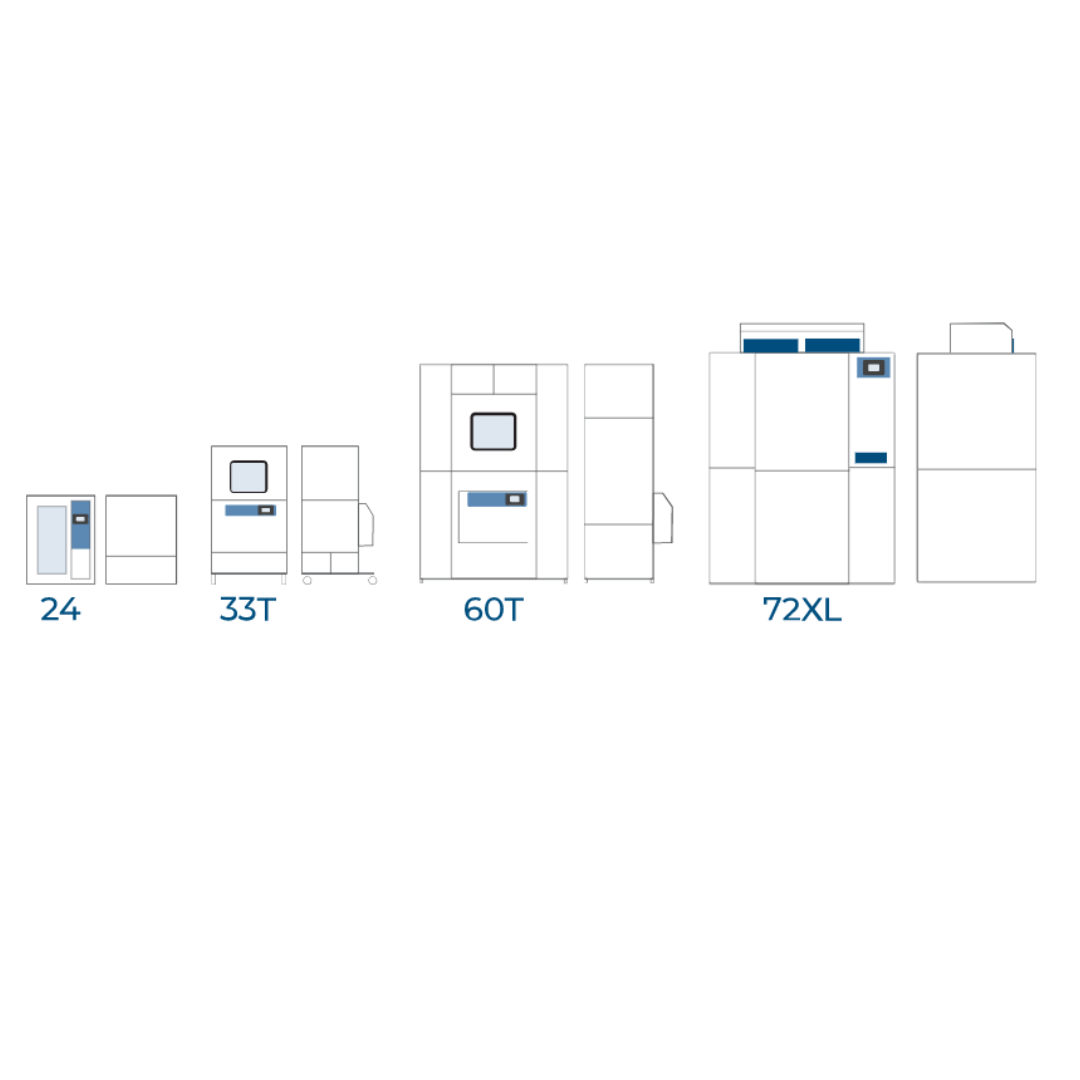

External Dimensions

Model	Width	Depth	Height
ARV-24-A	24" | 610 mm	25" | 635 mm	30" | 762 mm
ARV-33T-A	33" | 838 mm	34" | 864 mm	70" | 1778 mm
ARV-60T-A	60" | 1524 mm	29" | 737 mm	87" | 2210 mm
ARV-72XL-A	72" | 1829 mm	48" | 1219 mm	86" | 2184 mm



Internal Dimensions

Model	Width	Depth	Height
ARV-24-A	-	-	27.5" | 699 mm
ARV-33T-A	-	-	50" | 1270 mm
ARV-60T-A	-	-	82" | 2083 mm
ARV-72XL-A	-	-	80" | 2032 mm



Filter Options

Formula	Description
GP Plus!	The most widely used filter in the range, primarily for solvent, organic and alcohol removal.



Applications

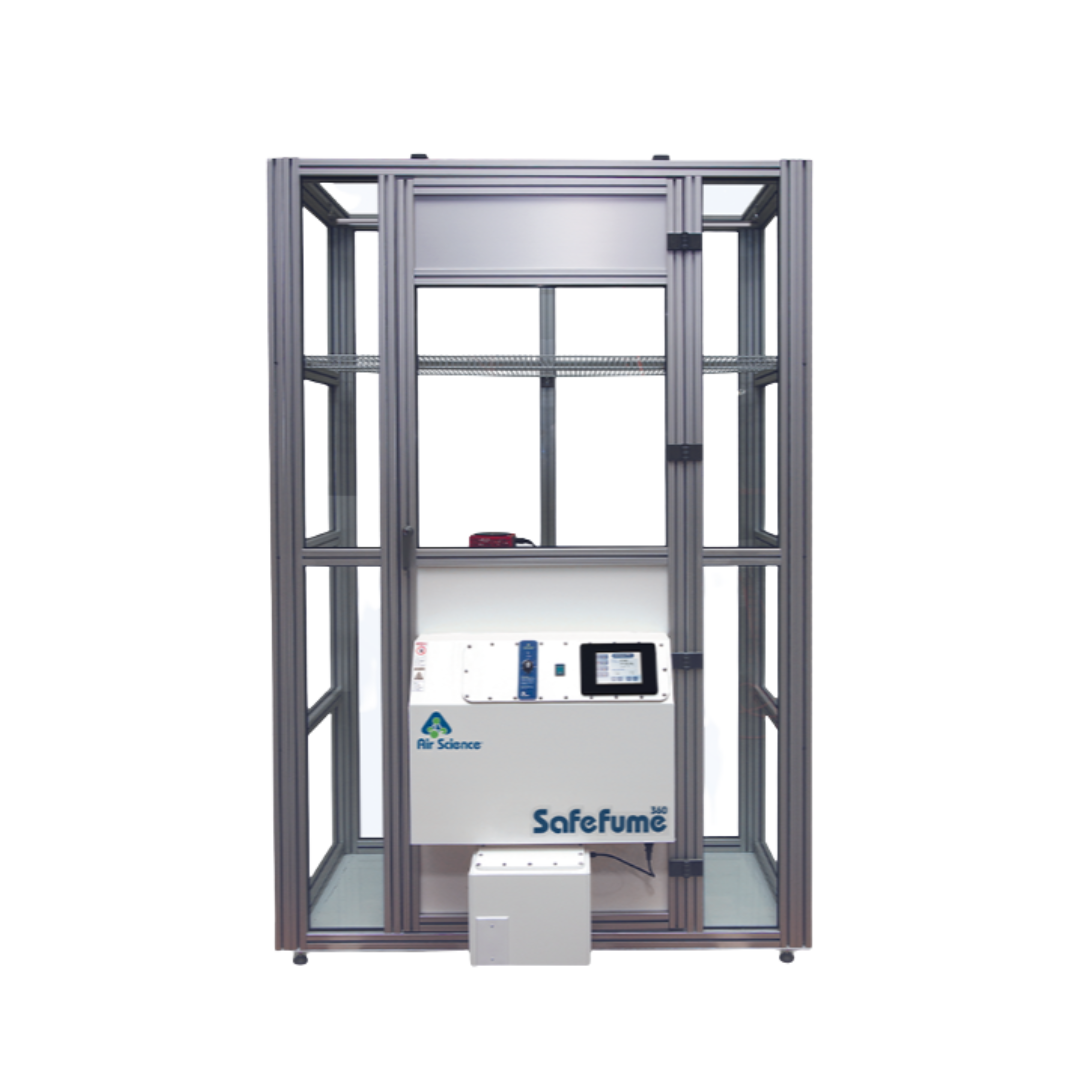

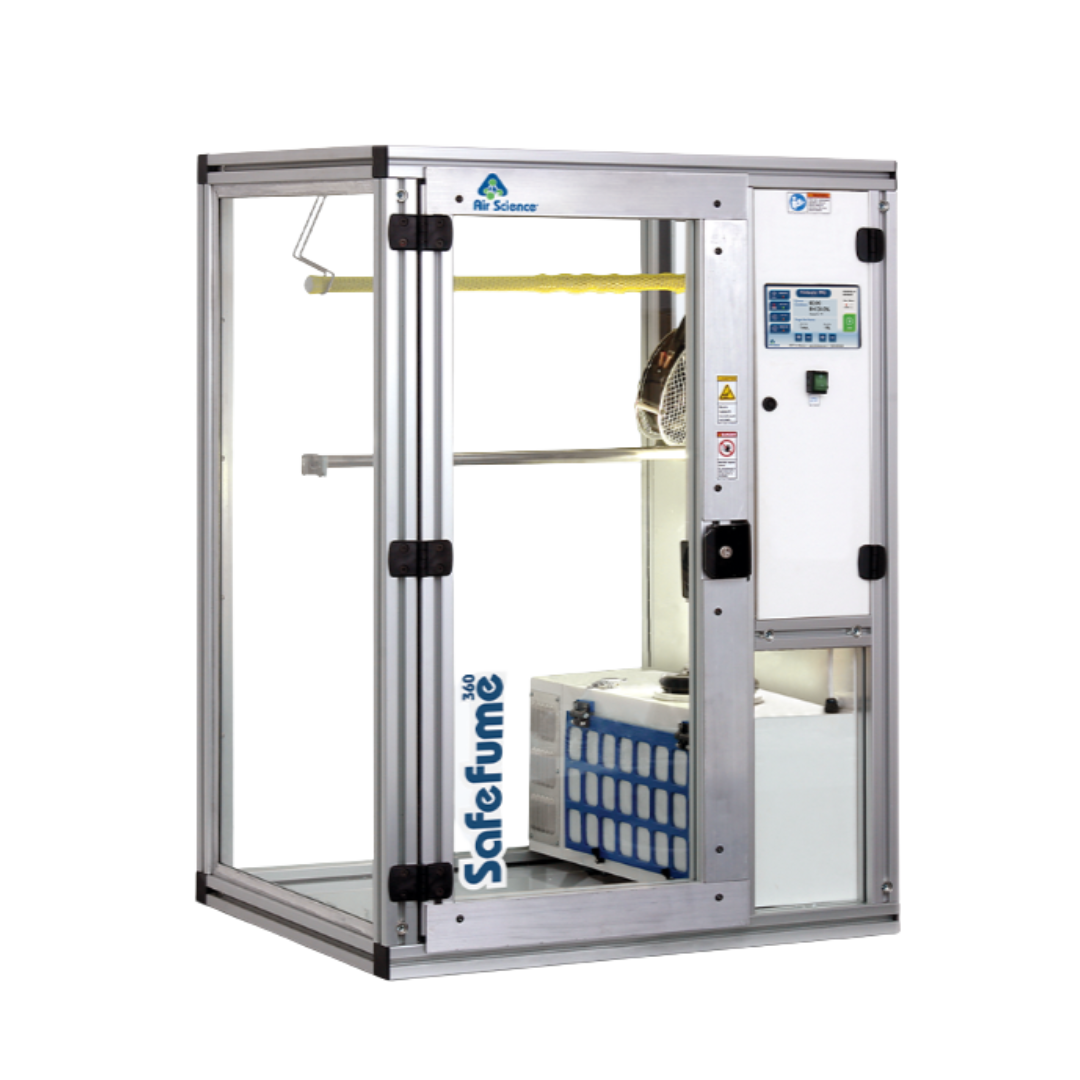

Using innovative filtration technology, the Safefume 360 cyanoacrylate fuming chamber creates a safe work environment over the widest range of applications in the industry.

State and Federal Crime Laboratories \ Crime Scene Investigation \ Law Enforcement Agencies \ Medical Examiners' Programs \ Criminal Justice Education
