TXRF Spectrometers

Sub-ppb Limits of detection: Analysis of smallest sample amounts in the nanogram or microgram range

Cl, As, Se Simultaneous multi-element trace analysis: Easy quantification of critical elements forming volatile compounds

Green No gases, no cooling media: Carbon footprint far lower than ICP

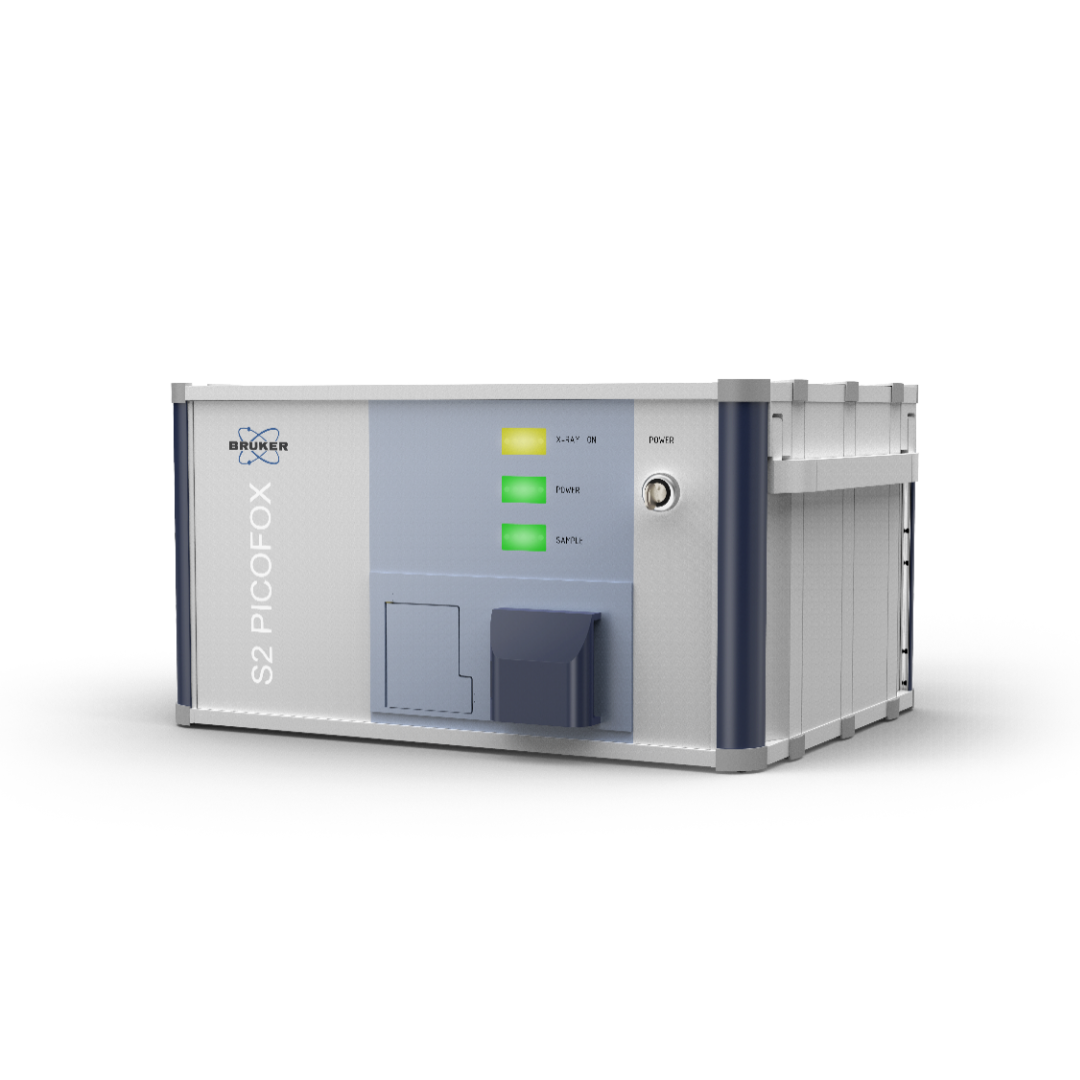

The S2 PICOFOX - Smart, Green, Compact

The S2 PICOFOX is a transportable TXRF spectrometer for ultra-trace element analysis. Due to its complete independence of any gas or cooling medium, the analyzer can be used not only in the laboratory but also for on-site analyses in the field.

• Simultaneous multi-element trace analysis, including halogenides
• Analysis of smallest sample amounts in the nanogram or microgram range
• Simple quantification using an internal standard without daily calibration
• Suitable for various sample types and applications
• No matrix or memory effects
• Low operating cost, no need for any media, disposables or periodic maintenance



Advantages of TXRF Compared to EDXRF Spectrometers

The S2 PICOFOX working principle is based on total reflection X-ray fluorescence (TXRF) analysis. The use of monochromatic radiation and total reflection optics leads to the following benefits of the S2 PICOFOX:

• Reduced absorption and scattering effects in the sample matrix enable an easy quantification by internal standardization.
• Short detector to sample distance leads to an enhanced fluorescence yield.
• Due to the reduced background, detection limits are several orders of magnitude lower.
• Extremely low sample amounts of liquids and powders can be precisely quantified.



Technical details

Most compact spectrometer	The S2 PICOFOX is a (trans)-portable spectrometer No gases, cooling water or other media required Optimally suited for in-field analysis	Simple quantification	The S2 PICOFOX is delivered with a factory calibration Quantification is simply processed using an internal standard
Most modern detector design	Latest SDD detector generation integrated Increased active area of 60 mm² Up to three times better detection limits	Simultaneous multi-element detection	All elements are measured simultaneously in one run The element range starts from Al to U (except Nb to Ru)
Green technology	Maximum power consumption of the S2 PICOFOX is 180 Watt only The CO? balance is 10 times better compared to a typical ICP system
