Automatic Cell Counter

Overview

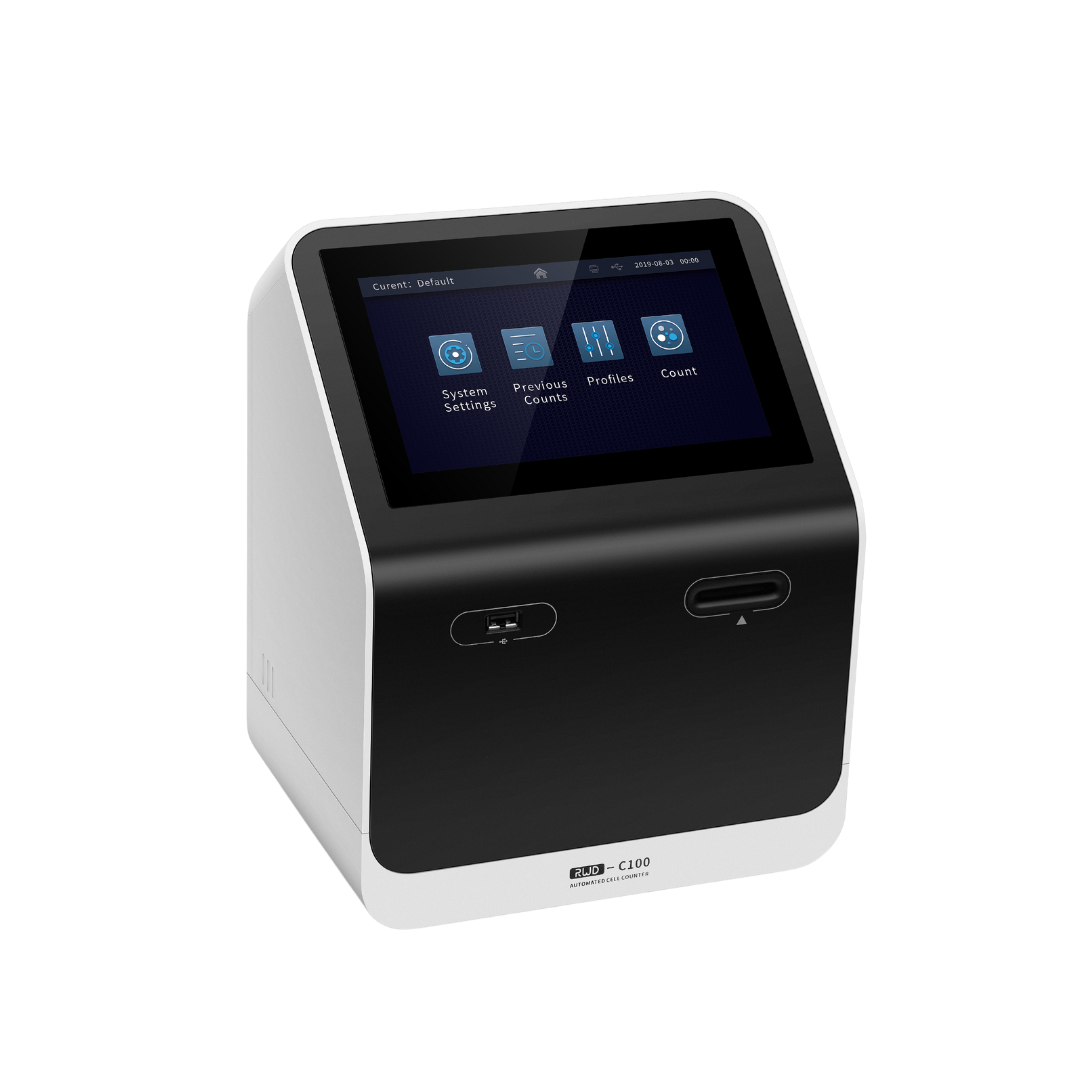

RWD Automated Cell Counter adopts Trypan Blue staining method, intelligent image recognition and advanced optical imaging technology to achieve accurate and automatic cell analysis. The algorithm can identify both live and dead cells within 9 seconds.
Information such as cell counts, viability, diameter can be obtained by just one-click.With fluorescence cube, C100&C100-Pro can display images in BF and FL channels simultaneously and clearly present cell counts and cell morphology.
In order to meet the needs of cell therapy and biopharma, the data management and software system of C100-Pro fully conforms to FDA 21 CFR Part 11. It is an optimal device for cell analysis in cell therapy, biopharmaceutical, immunology and vaccine development, tumor research, stem cell and metabolism research.



Specifications

Technical parameter	Description
Model	C100-SE	C100	C100-Pro
Optional fluorescence application	N/A	Blue (Ex: 375/28nm ; Em: 460/50nm)
		Green (Ex: 480/30nm ; Em: 535/40nm)
		Red (Ex: 540/25nm ; Em: 620/60nm)
Amplification Factor	2.5 x 5.0 Megapixel
Focus Method	Manual focusing & Autofocusing
Counting Area	2.15 mm x1.62 mm
Cell Type	Cell lines, stem cells, primary cells, pollens, beer yeast
Cell Size Range	4-60 μm (Optimal: 7-60 μm)
Cell Concentration Range	10^4-10^7 cells/mL
Cell counting Time	Less than 9s
Historical Data Storage	1000 counting reports and images at most
Languages	Chinese and English
Dimensions	212 mm(W)* 264 mm(H)* 165 mm (D)
Weight	~3.0kg	~3.2 kg	~3.5 kg

Order Information

Cat No.	Product Description
C100-SE	Automated Cell Counter (BF)
C100	Automated Cell Counter (BF + FL)
C100-Pro	Automated Cell Counter(BF + FL, FDA 21 CFR Part 11 Compliance)

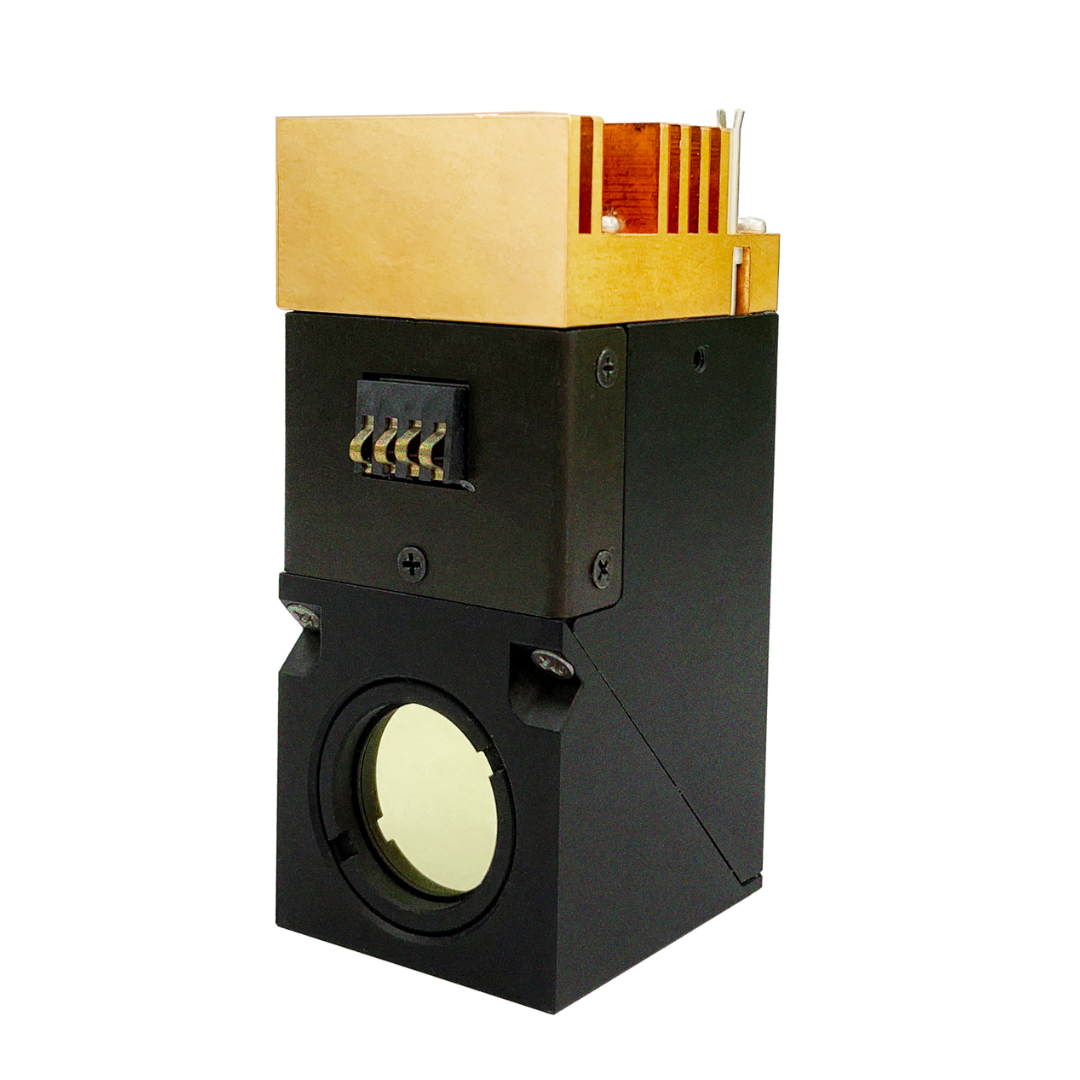

FL Cube-01	Blue (Ex: 375/28nm ; Em: 460/50nm)
FL Cube-02	Green (Ex: 480/30nm ; Em: 535/40nm)
FL Cube-03	Red (Ex: 540/25nm ; Em: 620/60nm)

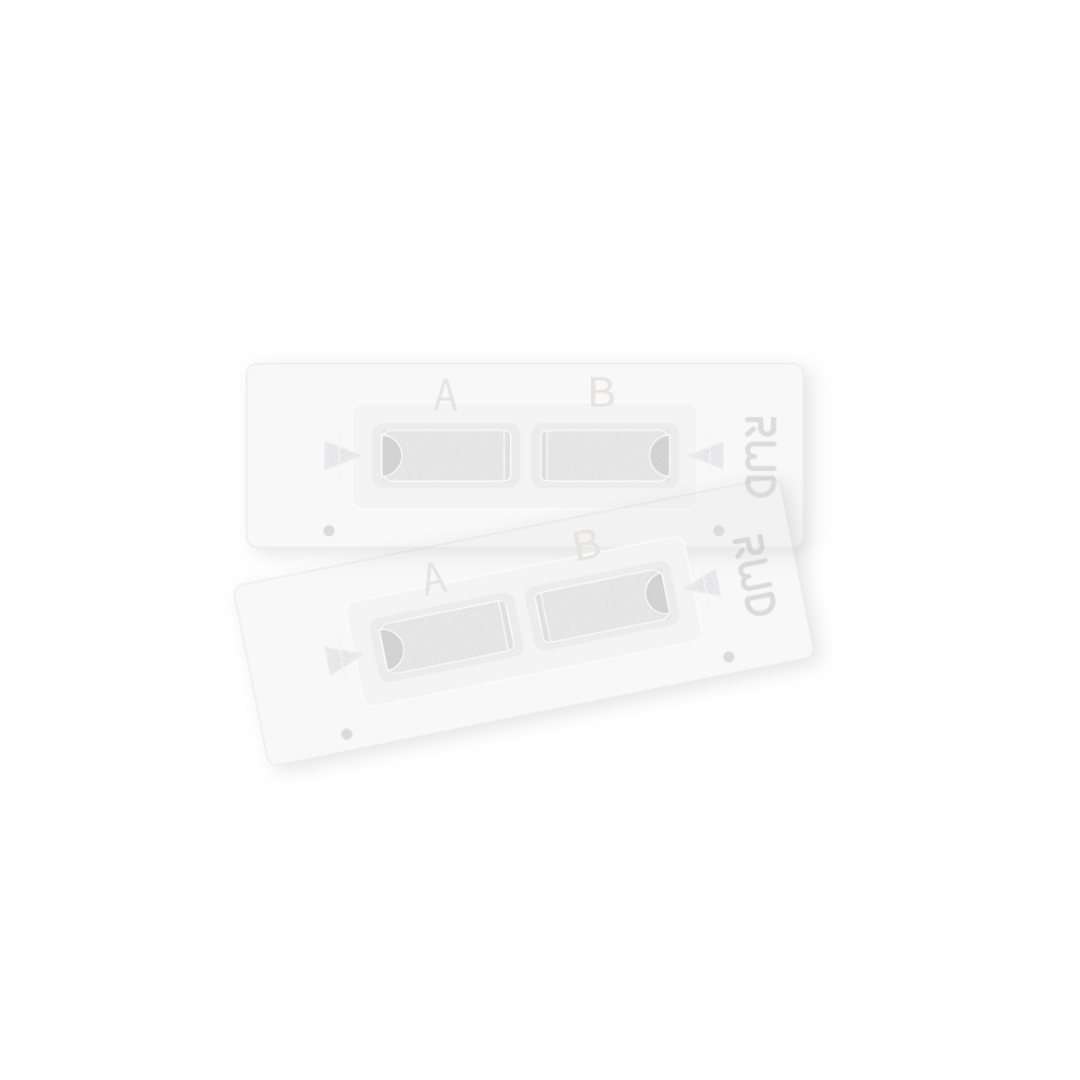

DS-50	Disposable Slide (50 pcs/box)
