Magnetic Hotplate Stirrer

RT 10

10-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic
coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes.

• Homogeneous temperature distribution across the heating plate
• Adjustable reverse operation
• Eco-mode for a low self-warming of the surface
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1000 rpm

Technical Data

Number of stirring positions	10
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Stirring quantity max. per stirring position (H2O)	0.4 l
Speed control	10 RPM Steps
Speed range	0 - 1000 rpm
Stirring bar length	25 - 30 mm
Heat output	375 W
Heating temperature range	room temp. - 120 °C
Heat control	LED
Heating rate heating plate	3 K/min
Adjustable safety circuit	50 - 150 °C
Set-up plate material	Aluminium alloy
Set-up plate dimensions	180 x 495 mm
Dimensions (W x H x D)	190 x 60 x 610 mm
Weight	7.5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	410 W

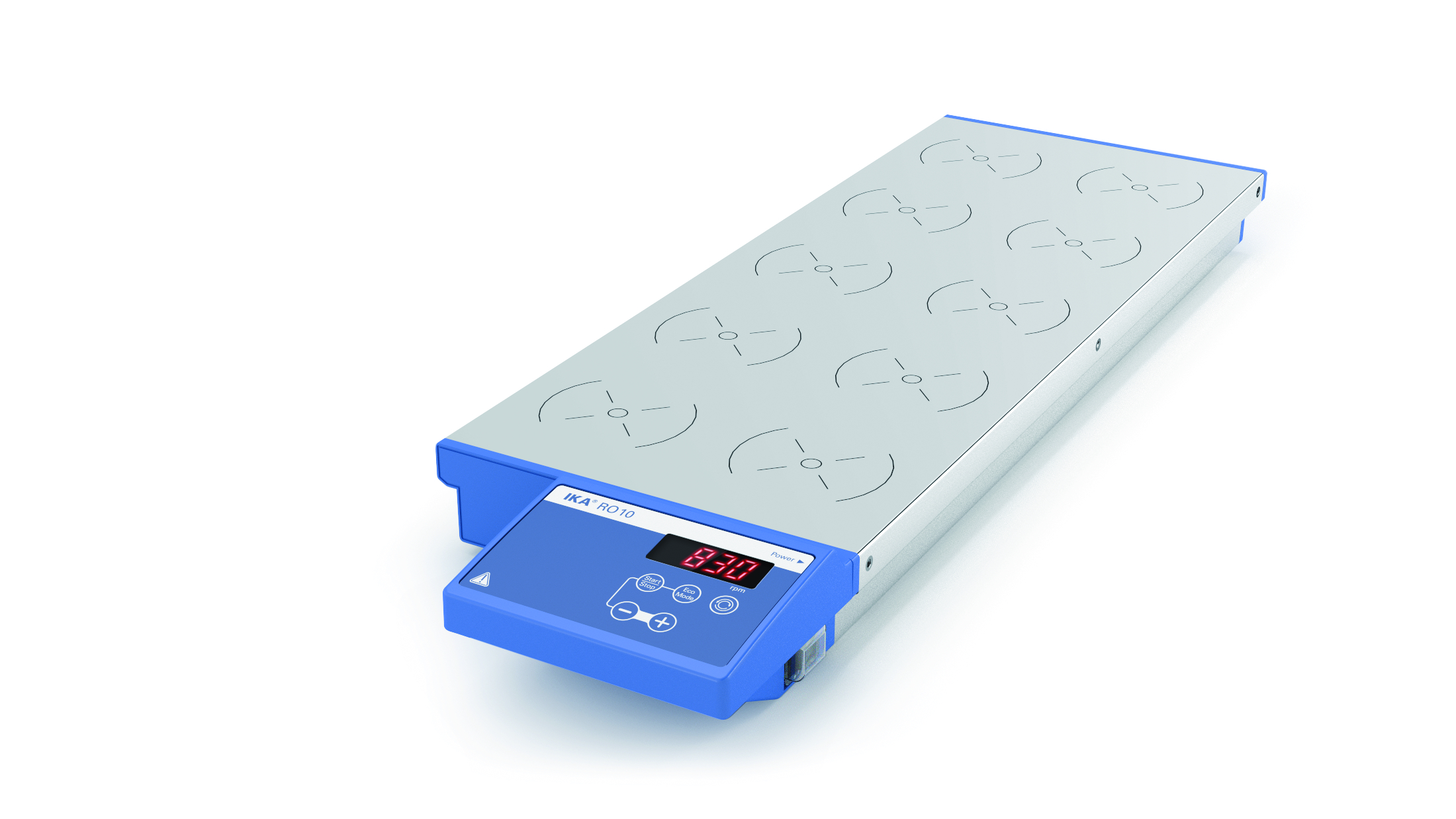

RO 10

10-position digital magnetic stirrer without heating, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.

• Adjustable reverse operation
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1200 rpm

Technical Data

Number of stirring positions	10
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Stirring quantity max. per stirring position (H2O)	0.4 l
Speed control	10 RPM Steps
Speed range	0 - 1200 rpm
Stirring bar length	25 - 30 mm
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	190 x 470 mm
Dimensions (W x H x D)	190 x 60 x 570 mm
Weight	5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	25 W
DC Voltage	24 V=
Current consumption	1000 mA
