Rheometer

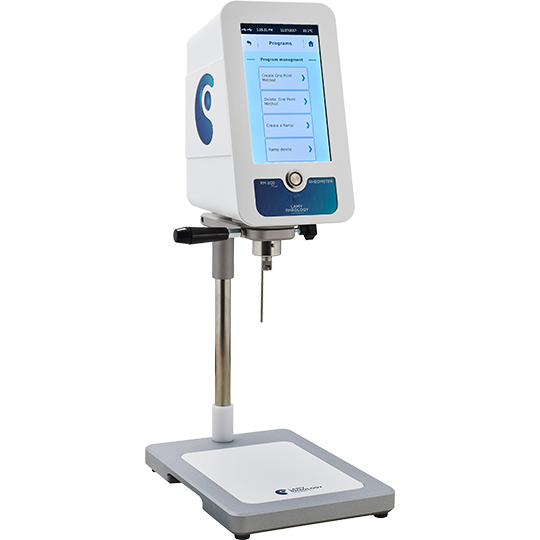

Thanks to its large storage capacity and its easy programming, the rheometer RM200 PLUS allows you to realize all your measurements of flow curves, yield point, thixotropic, fitting without software.

• Measurement of flow curves without computer.
• Integrated PT 100 temperature probe.
• Programming and saving of methods.
• Memorization and data transfer.
• Wide torque and speed range.
• Using of all type of coupling (Bayonet, AC115 and AC265).



Specifications

• TYPE OF INSTRUMENT :

  Rotating springless rheometer with 7’’ Touch screen

• ROTATION SPEEDS :

  Unlimited number of speeds between 0.3 and 1500 rpm

• TORQUE RANGE :

  From 0.05 to 30 mNm

• TEMPERATURE :

  The RM 200 PLUS has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C

• ACCURACY :

  +/- 1 % of the full scale

• REPEATABILITY :

  +/- 0,2 %

• DISPLAY :

  Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque – %- Shear stress - Time – Temperature

• COMPATIBLE ACCESSORIES :

  Carrying case
  External temperature probe -50°C to +300°C
  HELIPRO stand
  Small volume package
  Small volume package
  THERMOCELL package
  Bayonet spindle rack
  Barcode reader with stand and cable
  Touch screen protector
  Dymo printer
  Viscosity standards oil
  RheoTex software

• SECURITY AND CONFIDENTIALITY :

  An «operator» function allows you to enter a username for your
  instrument. This user must then be identified using a 4-digit code.
  There is also a protected mode that locks your measurement
  conditions.

• LANGUAGES :

  French/English/Russian/Spanish/Turkish/German

• COMPATIBLE MEASURING SYSTEMS :

  MS DIN, MS RV/LV, MS BV, MS VANES, MS R, MS ULV,
  MS SV.

• COMPATIBLE TEMPERATURE CONTROL :

  EVA DIN, EVA MS-R, EVA LR-BV, RT-1

• SUPPLY VOLTAGE :

  90-240 VAC 50/60 Hz

• PC CONNECTIONS :

  RS232 Port and USB

• PRINTER CONNECTION :

  USB Host Port - Compatible
  PCL/5

• WHAT BENEFITS ARE THERE FOR YOU?

  Save your flow curves and calculate your rheological parameters
  directly without computer (Plastic viscosity, flow limit, Thixotropy,
  Regression model according to Newton, Bingham, Casson and
  Ostwald) . Choose your attachment system tailored to your product constraints.

• DIMENSIONS AND WEIGHT :

  Head: D180 x H230 x W130 mm
  Alluminium stand: L280 x W200 x H30 mm
  Stainless steel rod: Length 500 mm
  Weight: 6.7 kg
