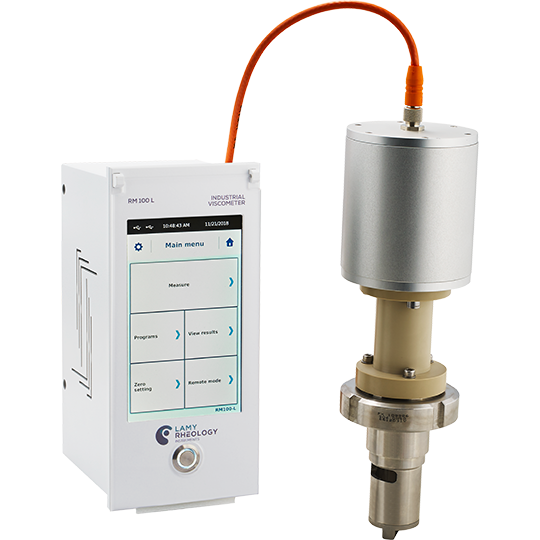

RM 100 L - Industrial Viscometer

RM100 L Industrial Viscometer guarantees continuous control for immediate action in production

Whatsapp

Overview

The online viscosity measurement of the RM100 L guarantees continuous control for immediate action in production.
Whatever the flow rate, the viscosity or the diameter of your pipe, this viscometer will be able to adapt by guaranteeing you a measurement according to laboratory’s norms.

  • Online measurement of viscosity.
  • Guaranteed tightness by magnetic training.
  • Distance up to 15 m between measuring head and control box.
  • 4/20 mA output for external control.


Specifications

  • TYPE OF INSTRUMENT :
    Rotating springless viscometer with 7’’ Touch screen
  • ROTATION SPEEDS :
    Unlimited number of speeds between 0.3 and 1500 rpm
  • TORQUE RANGE :
    From 0.05 to 30 mNm
  • ACCURACY :
    +/- 1 % of the full scale
  • REPEATABILITY :
    +/- 0,2 %
  • DISPLAY :
    Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque – %- Shear stress - Time – Temperature
  • COMPATIBLE ACCESSORIES :
    Touch screen protector
    Viscosity standards oil
    RheoTex software
    Cable extension 5 m (Ref. 113202) max 2 units.
    Measuring cylinder and cell
  • SECURITY AND CONFIDENTIALITY :
    An «operator» function allows you to enter a username for your
    instrument. This user must then be identified using a 4-digit code.
    There is also a protected mode that locks your measurement
    conditions.
  • LANGUAGES :
    French/English/Russian/Spanish/Turkish/German
  • SUPPLY VOLTAGE :
    90-240 VAC 50/60 Hz
  • PC CONNECTIONS :
    RS232 Port and USB
  • PRINTER CONNECTION :
    Printer connection
    USB Host Port - Compatible
    PCL/5
  • DIMENSIONS AND WEIGHT :
    Head : Ø 100 mm
    Box D140 x H260 x W120
    Weight: 4 kg
