Cell Imaging System

Four Microscopes in One

Revolve is the world’s first and only hybrid microscope, combining four microscopes into one. This significantly reduces equipment costs while freeing up valuable laboratory space.

Upright: Ideal for glass slides

Inverted: For live samples in dishes, wells, and flasks

Transmitted Light: Brightfield, Darkfield, Phase Contrast, Pol

Fluorescence: Automated LED Illumination One touch image overlay

For the first time, you no longer have to choose between one system or the other, and your lab members can quickly configure their microscope to suit their specific needs.



Imaging Made Simple

Research microscopes are intimidating and difficult to use. Yours doesn’t have to be.

With Revolve, your lab will take better images – of just about everything

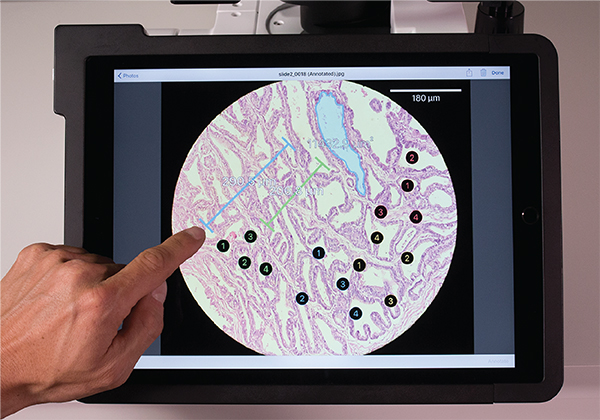

Modern Touch Interface

Revolve is incredibly easy to use. You’ll feel and appreciate the difference of using our familiar app interface with touch controls.

No longer are years of training and experience required to drive your microscope. The Revolve eliminates learning curve and variability, allowing you to view and capture publication quality images.



Simple Powerful Controls

Touchscreen functions drive cameras and illumination, replacing manual turrets and levers.

Capture and visualize overlays in seconds with Motorized LED Fluorescence.

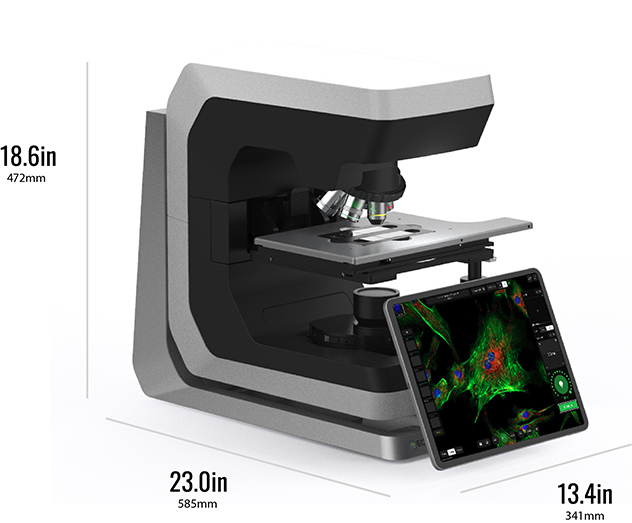

Compact and Versatile

Revolve combines 4 microscopes in 1. This allows your lab to address a variety of imaging needs, now and in the future.

Its compact design saves space and fits on your benchtop. And with no darkroom requirement, Revolve can easily be moved to conference rooms and teaching labs.

Compact Footprint: Fits on standard lab workbench

No Darkroom Required: For Brightfield and Fluorescence

Portable: Easy to move and set up



High Performance Quality Optics for beautiful, crystal clear images

Observe your samples with unparalled clarity with Revolve’s world class optical components, viewed on an Ultra High-Resolution display.

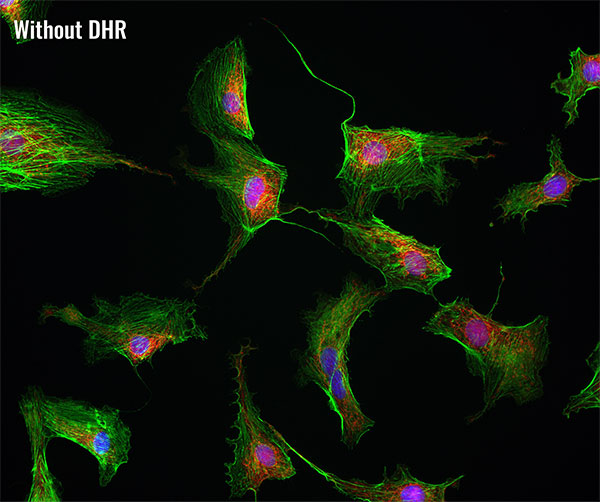

Digital Haze Reduction

Widefield Fluorescence Images can encounter haze artifacts produced by out of focus light. ECHO’s proprietary Digital Haze Reduction (DHR) software module reveals fine details by suppressing noise and reducing blur to provide stunning, crystal clear images.

• Sharper Enhanced Contrast for thicker samples
• GPU is leveraged for real time processing
• Flexible, easy to use settings



 Accessories

Part Number	Description
	Filter Cube
CUBE4001	DAPI - EX:380/30 EM:450/50 DM:425
CUBE4002	FITC - EX:470/40 EM:525/50 DM:495
CUBE4003	TRITC - EX:530/40 EM:605/70 DM:560
CUBE4004	TxRED - EX:560/40 EM:630/75 DM:585
CUBE4005	CY5 - EX:630/40 EM:700/75 DM:660
CUBE4006	AF594 - EX:580/30 EM:645/75 DM:605
CUBE4007	CFP - EX:445/20 EM:510/40 DM:455lp
CUBE4008	YFP - EX:500/20 EM:535/30 DM:515lp
CUBE4009	CY7 - EX:710/75 EM:810/90 DM:760lp
CUBE4010	BFP - EX:405/20 EM:460/50 DM:425lp
CUBE4013	NARROWBAND EGFP - EX:480/20 EM:510/20 DM:495 lpxr ET
CUBE4100	CUSTOM CUBE - Configured to User Specifications (see Notes for detail)
	Objective Lens
JMAG0011	1.25x Plan Apochromat NA 0.04 WD 5.0mm
JMAG0020	2x Plan Apochromat NA 0.08 WD 6.2mm
JMAG0021	2x Plan Achromat NA 0.06 WD 5.8mm
JMAG9041	4x Plan X Apo NA 0.16 WD 13mm
JMAG0042	4x Plan Fluorite NA 0.13 WD 17mm
JMAG0043	4x Plan Fluorite Phase PhL NA 0.13 WD 17mm
JMAG0044	4x Plan Achromat NA 0.10 WD 18.5mm
JMAG0046	4x Plan Fluorite POL NA 0.13 WD 17mm
JMAG9101	10x Plan X Apo NA 0.40 WD 3.1mm
JMAG0102	10x Plan Fluorite NA 0.30 WD 10mm
JMAG0103	10x Plan Fluorite Phase Ph1 NA 0.30 WD 10mm
JMAG0109	10x Plan Fluorite Phase PhC NA 0.30 WD 9.5mm
JMAG0104	10x Plan Achromat NA 0.25 WD 10.6mm
JMAG0105	10x Plan Achromat Phase Ph1 NA 0.25 WD 10.0mm
JMAG0108	10x Plan Achromat Phase Ph1 NA 0.25 WD 10.6mm
JMAG0118	10x Plan Fluorite Water Dipping NA 0.3 WD 3.5mm
JMAG0106	10x Plan Achromat Phase PhC NA 0.25 WD 9.8mm
JMAG0180	10x Plan Fluorite MPLAN LWD NA 0.25 WD 21mm
JMAG9201	20x Plan X Apo NA 0.80 WD 0.6mm
JMAG0220	20x Plan Fluorite CC NA 0.70 WD .8-1.8mm
JMAG0206	20x Plan Achromat NA 0.40 WD 1.2mm
JMAG0207	20x Plan Achromat Phase Ph1 NA 0.40 WD 1.2mm
JMAG0214	20x Plan Fluorite CC Phase Ph2 NA 0.70 WD 0.8-1.8mm
JMAG0202	20x Plan Fluorite LWD CC NA 0.45 WD 6.6-7.8mm
JMAG0203	20x Plan Fluorite LWD CC Phase Ph1 NA 0.45 WD 6.6-7.8mm
JMAG0217	20x Plan Fluorite LWD CC NA 0.45 WD 6.6-7.8mm
JMAG0204	20x Plan Fluorite NA 0.50 WD 2.1mm
JMAG0205	20x Plan Fluorite Phase Ph1 NA 0.50 WD 2.1mm
JMAG0209	20x Achromat LWD Phase PhC NA 0.40 WD 3.2mm
JMAG0216	20x Achromat LWD NA 0.40 WD 2.8mm
JMAG0218	20x Plan Fluorite Water Dipping NA 0.5 WD 3.5mm
JMAG0208	20x Plan Achromat MPLAN SLWD NA 0.25 WD 25mm
JMAG0215	20x Plan Fluorite POL NA 0.5 WD 2.1mm
JMAG0213	20x Plan Achromat Phase Ph1 NA 0.40 WD 1.2mm
JMAG9411	40x Plan X Apo Oil NA 1.40 WD 0.13mm
JMAG9402	40x Plan X Apo CC NA 0.95 WD 0.18mm
JMAG0411	40x Plan Apo N 340 Oil NA 1.35 WD 0.01mm
JMAG0410	40x Plan Apochromat WI CC NA 1.15 WD 0.25mm
JMAG0405	40x Plan Fluorite NA 0.75 WD 0.51mm
JMAG0406	40x Plan Fluorite Phase Ph2 NA 0.75 WD 0.51mm
JMAG0403	40x Plan Fluorite LWD CC NA 0.60 WD 2.7-4mm
JMAG0404	40x Plan Fluorite LWD CC Phase Ph2 NA 0.60 WD 3.0-4.2mm
JMAG0420	40x Plan Fluorite Water Dipping NA 0.8 WD 3.3mm
JMAG0414	40x Plan Fluorite POL NA 0.75 WD 0.51mm
JMAG0407	40x Plan Achromat NA 0.65 WD 0.6mm
JMAG0408	40x Plan Achromat Phase Ph2 NA 0.65 WD 0.6mm
JMAG0409	40x Achromat LWD Phase Ph2 NA 0.55 WD 2.2mm
JMAG0413	40x Plan Achromat Phase Ph2 NA 0.65 WD 0.6mm
JMAG0415	40x Achromat ELWD NA 0.55 WD 1.9mm
JMAG0418	40x Achromat LWD Phase Ph2 NA 0.55 WD 2.2mm
JMAG9601	60x Plan X Apo Oil NA 1.42 WD 0.15mm
JMAG9602	60x Plan X Apo Oil Phase PH3 NA 1.42 WD 0.15mm
JMAG0602	60x Plan Apochromat Oil Phase Ph3 NA 1.42 WD 0.15mm
JMAG0606	60x Plan Fluorite Oil Iris NA 1.25-0.65 WD 0.12mm
JMAG0607	60x Plan Fluorite Oil IRIS Phase Ph3 NA 1.25-0.65 WD 0.12mm
JMAG0604	60x Plan Fluorite LWD CC NA 0.70 WD 1.5-2.2mm
JMAG0605	60x Plan Fluorite LWD CC Phase Ph2 NA 0.70 WD 1.5-2.2mm
JMAG0620	60x Plan Fluorite Water Dipping NA 1.00 WD 2.0mm
JMAG0612	60x Plan Apochromat WI CC NA 1.20 WD 0.28mm
JMAG0622	60x Plan Fluorite Water Dipping NA 1.1 WD 1.5mm
JMAG0608	60x Plan Achromat Dry NA 0.80 WD 0.17mm
JMAG0609	60x Plan Fluorite Dry CC NA 0.9 WD 0.2mm
JMAG9001	100x Plan X Apo Oil NA 1.45 WD 0.13mm
JMAG9002	100x Plan X Apo Oil Phase Ph3 NA 1.45 WD 0.13mm
JMAG1007	100x Plan Achromat IRIS Oil NA 1.25-0.6 WD 0.13mm
JMAG1003	100x Plan Fluorite Oil NA 1.30 WD 0.2mm
JMAG1004	100x Plan Fluorite Oil Phase Ph3 NA 1.30 WD 0.2mm
JMAG1014	100x Plan P Achromat NCG Oil NA 1.25 WD 0.13mm
JMAG1005	100x Plan Achromat Oil NA 1.25 WD 0.15mm
JMAG1006	100x Plan Achromat Oil Phase Ph3 NA 1.25 WD 0.15mm
JMAG1008	100x Plan Fluorite IRIS Oil NA 1.3-0.6 WD 0.20mm
JMAG1080	100x Plan Fluorite MPLAN NA 0.9 WD 1mm
JMAG1088	100x Plan Fluorite MPLAN LWD NA 0.8 WD 3.4mm
JMAG1018	100x Plan Achromat MPLAN SLWD NA 0.60 WD 7.6mm
JMAG1010	100x Plan Fluorite POL Oil NA 1.3 WD 0.2mm
JMAG1009	100x Plan Achromat Oil Phase Ph3 NA 1.25 WD 0.15mm
	Stage Insert
HLDR0001	Stage Insert - 30mm diameter cutout for viewing
HLDR0002	Stage Insert - Holds two (2) 1x3 inch microscope slides
HLDR0003	Stage Insert - Holds four (4) 35mm petri dishes
HLDR0004	Stage Insert - Holds two (2) 60mm petri dishes
HLDR0005	Stage Insert - Holds one (1) 100mm petri dish
HLDR0006	Stage Insert - Holds one (1) Hemocytometer
HLDR0007	Stage Insert - Holds one (1) 2in x 3in glass microscope slide
	Condenser
SCND1001	ELWD Universal Condenser; NA 0.30 WD 73mm
JCND2002	High Resolution Universal Phase Turret Condenser; NA 0.85 WD 7mm
JCND2003	Swing-out Condenser; NA 0.9 WD 0.17 | Includes BF Hi NA & Low-Power Flip-out
JCND2005	LWUCD Long Working Distance Universal Turret Condenser - Five position rotating turret includes PHL PH1 PH2 PH3 phase annuli; NA 0.55 WD 27mm
JCND2044	Darkfield Dry Condenser; NA 0.92/0.80 with Aperture IRIS (10x-40x)
	Immersion Oil
JOIL0001	Olympus Immersion Oil 8ml
	Software
ESZS5000	Z-Stack software module for Revolve R4
RDHR1001	Digital Haze Removal Software module
