Fluorometer

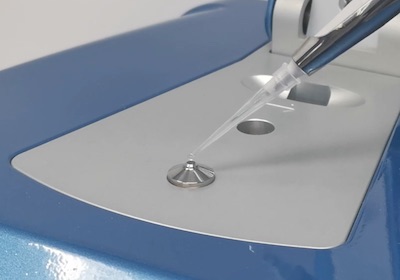

The DeNovix QFX Fluorometer offers the widest dynamic range, greatest sensitivity and ground-breaking ease-of-use. Systems feature a 7” HD touchscreen and intuitive, pre-installed EasyApps. The QFX includes four excitation sources and requires as little as 1µL of sample. The system is compatible with DeNovix dsDNA and RNA Fluorescence Quantification assays, commonly used Qubit® and Promega® assays, or user-configured custom assays.



Specifications

Light Sources	Blue LED (~470 nm), Green LED (~525 nm), Red LED (~635 nm), UV LED (~375 nm)
Excitation Filters	Blue: 442-497 nm, Green: 490-558 nm, Red: 613-662 nm, UV: 361-389 nm
Emission Filters	Channel 1: 514-567 nm, Channel 2: 565-650 nm, Channel 3: 664-740 nm, Channel 4: 435-485 nm
Detectors	Photodiode, detection range 300-1000 nm
Tube Type	0.5 mL Real Time thin-wall PCR tube (polypropylene)
Onboard Controller (No PC required)
Operating System	Custom Android™ OS
CPU	TI OMAP 1.5 GHz Dual Core ARM Processor
Display	1280 X 800 high definition color display
User Input	Touch screen with swipe and pinch motion; glove compatible
Internal Storage	32 GB flash drive
Connectivity	3 USB ports for printer, barcode reader and USB drive
Networking	Ethernet and Wi-Fi
General
Colors	Arctic White, Brazilian Blue, Fire Red, Tungsten Silver
Measurement Time	2 seconds
Footprint	20 cm x 27 cm
Weight	1.1 kg
Operating Voltage	12 VDC
Operating Power Consumption	10 W; max 30 W
Approvals	CE, UL/CSA, FCC and Japan CAB
Manufacture Location	USA
