PZMIII-MI Stereo Microinjection Microscope
PZMIII-MI Microscope with Illuminated Base and Articulating Mirror is perfect for microinjection and transfection.
WhatsappOverview
Overview

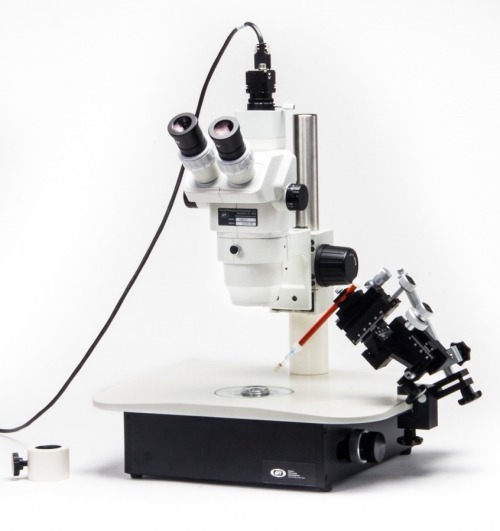

PZMIII-MI Microscope with Illuminated Base and Articulating Mirror is perfect for microinjection and transfection. It includes our standard stereo microscope head mounted on a research grade Brightfield/Darkfield pole type stand. It has a large stable work surface and a rotatable lens/mirror system which provides transmitted LED intensity illumination.
The sliding mirror is gimbaled, allowing for a full range of movement front to back, as well as rotation. The mirror rotates 360º on one axis and can slide for further lighting effect directionally, front to back. A knob on the right of the base adjusts the mirror and a locking ring holds the desired mirror position.
The articulating mirror lets you vary the microscope illumination from Brightfield LED to Darkfield LED at an appropriate angle. It is an effective tool for viewing live bacteria. At low magnifications, view tissues, cells or embryo transfer where oblique, transmitted illumination is critical.
Articulating mirror ideal for Brightfield and Darkfield applications
- Illuminated base
- Articulating mirror
- Includes base, microscope head and focus mount
- Trinocular version available
- Includes opaque, black/white contrast stage plate
Options
| Order code | Type | Description |
| PZMIII-MI | Binocular | Binocular Microscope Head with LED illuminated base (articulating mirror) |

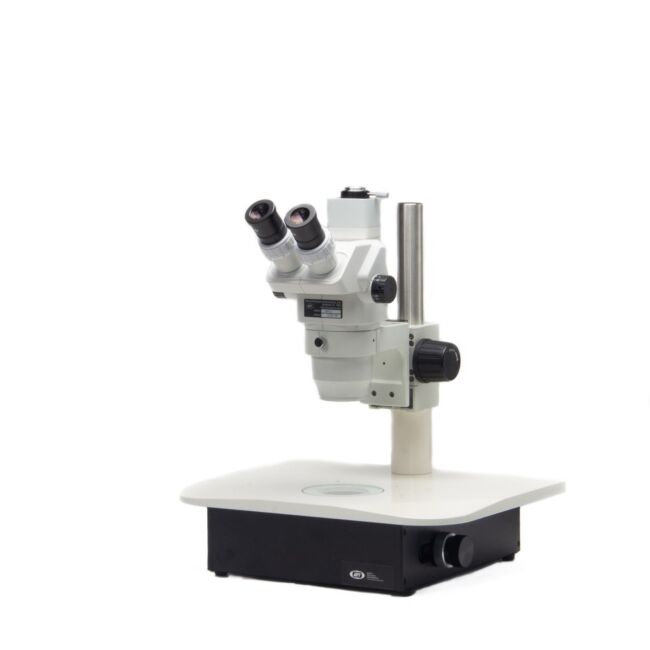

| PZMTIII-MI | Trinocular | Trinocular Microscope Head with LED illuminated base (articulating mirror) |

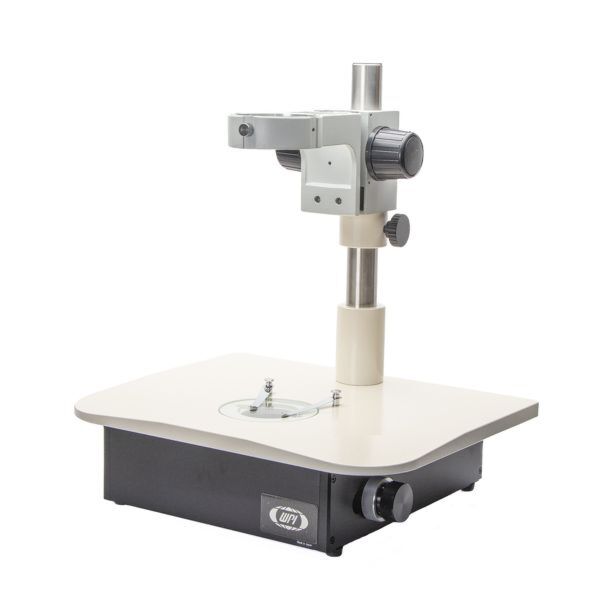

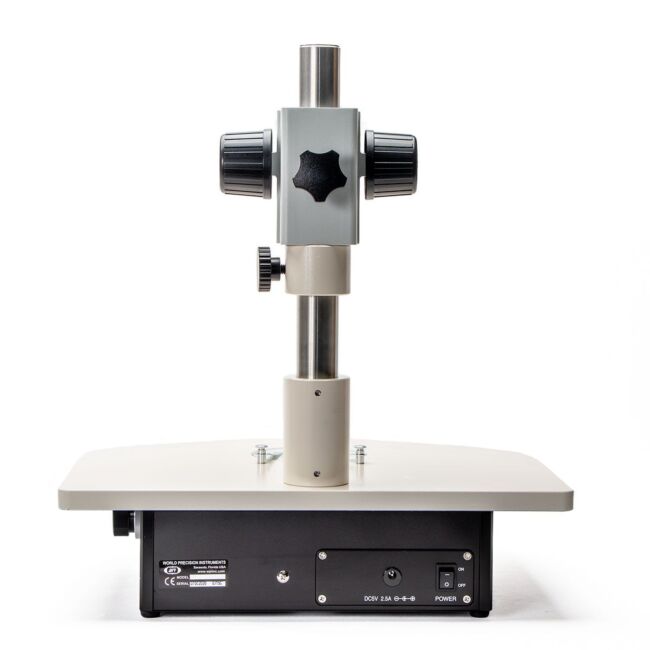

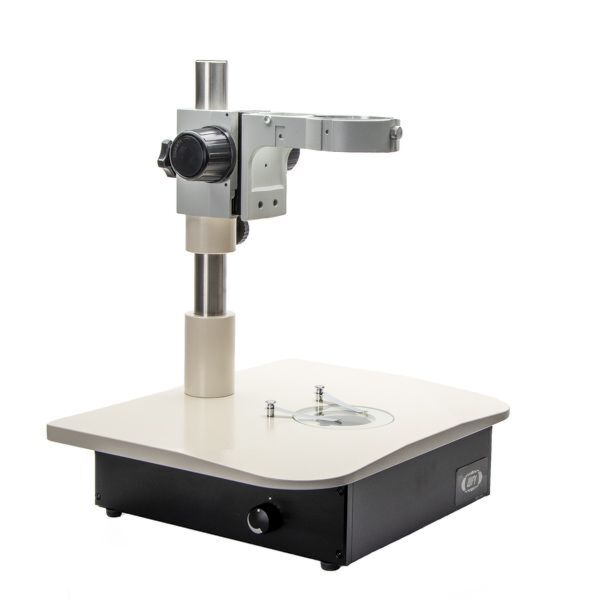

| 505145 | Base only | Mirror Microinjection Base with 76 mm Focus Mount |
Benefits
- Oblique, transmitted light for low magnification view of tissues, cells or embryo transfer
- Adjustable brightfield and darkfield illumination
- Pseudo DIC illumination
Applications
- Microinjection
- Nematode research
PZMIII-MI Microscope with Illuminated Base and Articulating Mirror is perfect for microinjection and transfection. It includes our standard stereo microscope head mounted on a research grade Brightfield/Darkfield pole type stand. It has a large stable work surface and a rotatable lens/mirror system which provides transmitted LED intensity illumination.
The sliding mirror is gimbaled, allowing for a full range of movement front to back, as well as rotation. The mirror rotates 360º on one axis and can slide for further lighting effect directionally, front to back. A knob on the right of the base adjusts the mirror and a locking ring holds the desired mirror position.
The articulating mirror lets you vary the microscope illumination from Brightfield LED to Darkfield LED at an appropriate angle. It is an effective tool for viewing live bacteria. At low magnifications, view tissues, cells or embryo transfer where oblique, transmitted illumination is critical.
Specifications
| Dimensions | 330 mm (13") wide by 280 mm (11") length by 85 mm (3.37") high |
| Pillar Height | 10” (25.6 mm) |
| Glass Stage Plate | 9.5 cm (3.75") diameter |
| Stage Clips | 75 mm clip length, 4 mm pin, paired |
| Illumination Port | Built in incident and transmitted variable intensity LED illumination |
| Rotatable Mirror | Dual-reflection lens/mirror system provides transmitted brightfield/ pseudo-darkfield illumination |
| Manufacturer | Made in Japan |
| CE | yes |
| Package Information | 10 lbs. 17 x 14 x 9" |
