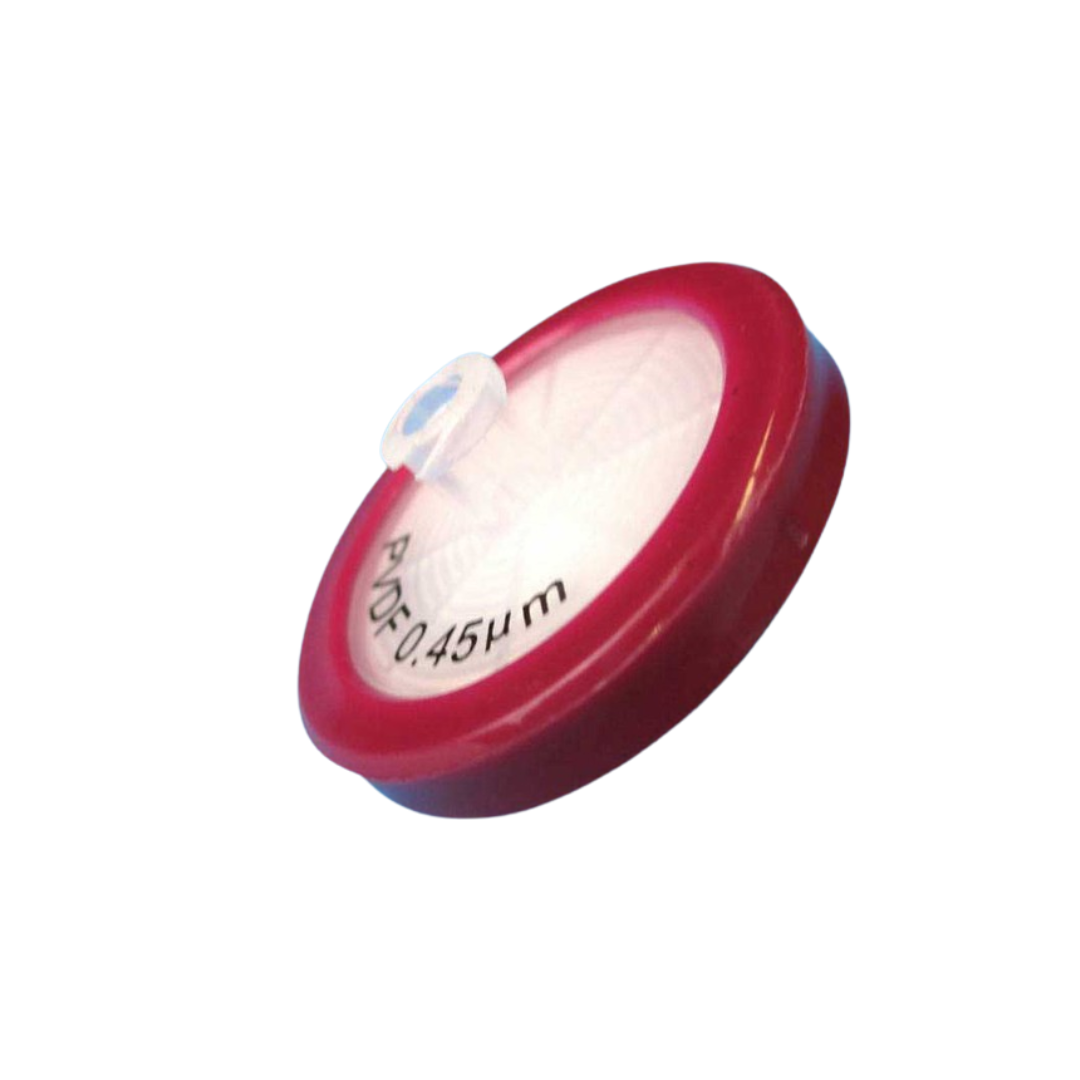

PVDF Syringe Filter
The Hydrophobic PVDF can cover most of the Hydrophobic PTFE applications.
WhatsappOverview
Introduction
Microlab Scientific offers Hydrophobic PVDF Syringe filters that are purpose-built with features designed to bring the highest levels of performance and purity to your research. The Hydrophobic PVDF can cover most of the Hydrophobic PTFE applications.
Features
- Good heat endurance and chemical stability, strong hydrophobility
- Designed with a Female Luer-Lok inlet and Male Luer slip outlets
- Some Filters are individually wrapped sterile, certified RNase-free, DNase- free, and DNA –free with Non-pyrogenic
Applications
- Gas filtration
- Vapor filtration
- High-temperature filtration
- Food industry
- Medicine filtration
Specifications
| Parameters | 13mm | 25mm | 33mm | |||
| Membrane material/Housing Material | PVDF (Polytetrafluoroethylene)/ PP | |||||
| Wettability | Hydrophobic | |||||
| Filtration area (cm2)Filter diameter (mm) | 0.92 | 2.98 | 4.9 | |||
| Inlet/Outlet | Female luer lock/ Male luer silp | |||||
| Normal Pore Size(μm) | 0.22 | 0.45 | 0.22 | 0.45 | 0.22 | 0.45 |
| HPLC extractables | 0.004 Aufs (UV 254 nm) | |||||
| Holdup volume (μl) | <10 | <50 | <100 | |||
| Sample volume (ml) | <10 | <80 | <120 | |||
| Maximum Operating Temperature | 100°C | 100°C | 100°C | |||
| Maximum Operating Pressure (psi) | >87 | >87 | >87 | |||
| Applicable pH value | 1-14 | 1-14 | 1-14 | |||
Order Informations
| Part No. | Description | Packing |
| S04PVB022B | Nonsterile Hydrophobic PVDF Syringe Filter, 4mm, 0.22um | 200pcs/pk |
| S04PVB045B | Nonsterile Hydrophobic PVDF Syringe Filter, 4mm, 0.45um | 200pcs/pk |
| S13PVB022E | Nonsterile Hydrophobic PVDF Syringe Filter, 13mm, 0.22um | 100pcs/pk |
| S13PVB045E | Nonsterile Hydrophobic PVDF Syringe Filter, 13mm, 0.45um | 100pcs/pk |
| S25PVB022E | Nonsterile Hydrophobic PVDF Syringe Filter, 25mm, 0.22um | 100pcs/pk |
| S25PVB045E | Nonsterile Hydrophobic PVDF Syringe Filter, 25mm, 0.45um | 100pcs/pk |
| S33PVB022M | Nonsterile Hydrophobic PVDF Syringe Filter, 33mm, 0.22um | 100pcs/pk |
| S33PVB045M | Nonsterile Hydrophobic PVDF Syringe Filter, 33mm, 0.45um | 100pcs/pk |
| S04PVL022B | Nonsterile Hydrophilic PVDF Syringe Filter, 4mm, 0.22um | 200pcs/pk |
| S04PVL045B | Nonsterile Hydrophilic PVDF Syringe Filter, 4mm, 0.45um | 200pcs/pk |
| S13PVL022E | Nonsterile Hydrophilic PVDF Syringe Filter, 13mm, 0.22um | 100pcs/pk |
| S13PVL045E | Nonsterile Hydrophilic PVDF Syringe Filter, 13mm, 0.45um | 100pcs/pk |
| S25PVL022E | Nonsterile Hydrophilic PVDF Syringe Filter, 25mm, 0.22um | 100pcs/pk |
| S25PVL045E | Nonsterile Hydrophilic PVDF Syringe Filter, 25mm, 0.45um | 100pcs/pk |
| S33PVL022M | Nonsterile Hydrophilic PVDF Syringe Filter, 33mm, 0.22um | 100pcs/pk |
| S33PVL045M | Nonsterile Hydrophilic PVDF Syringe Filter, 33mm, 0.45um | 100pcs/pk |
