Colony Counter

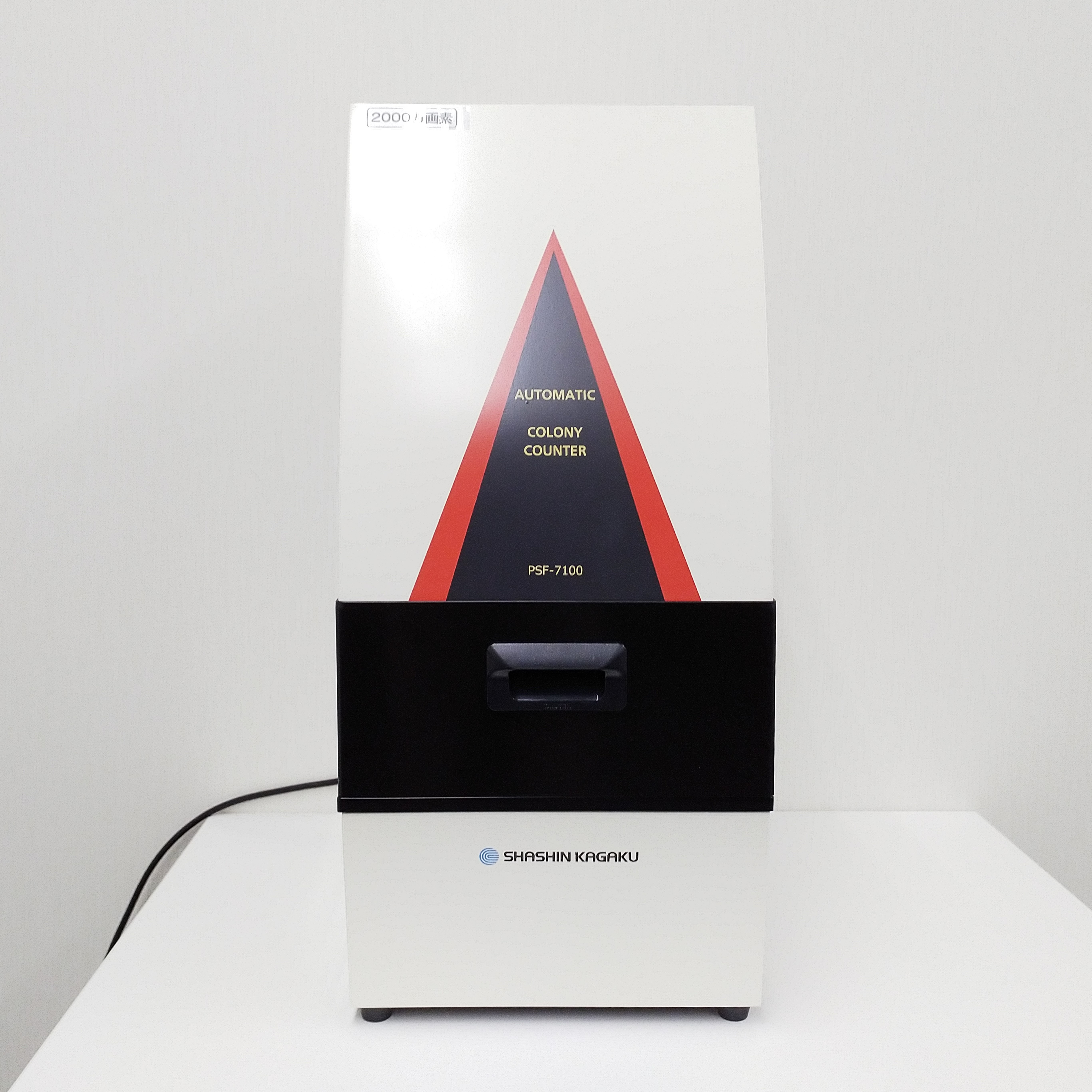

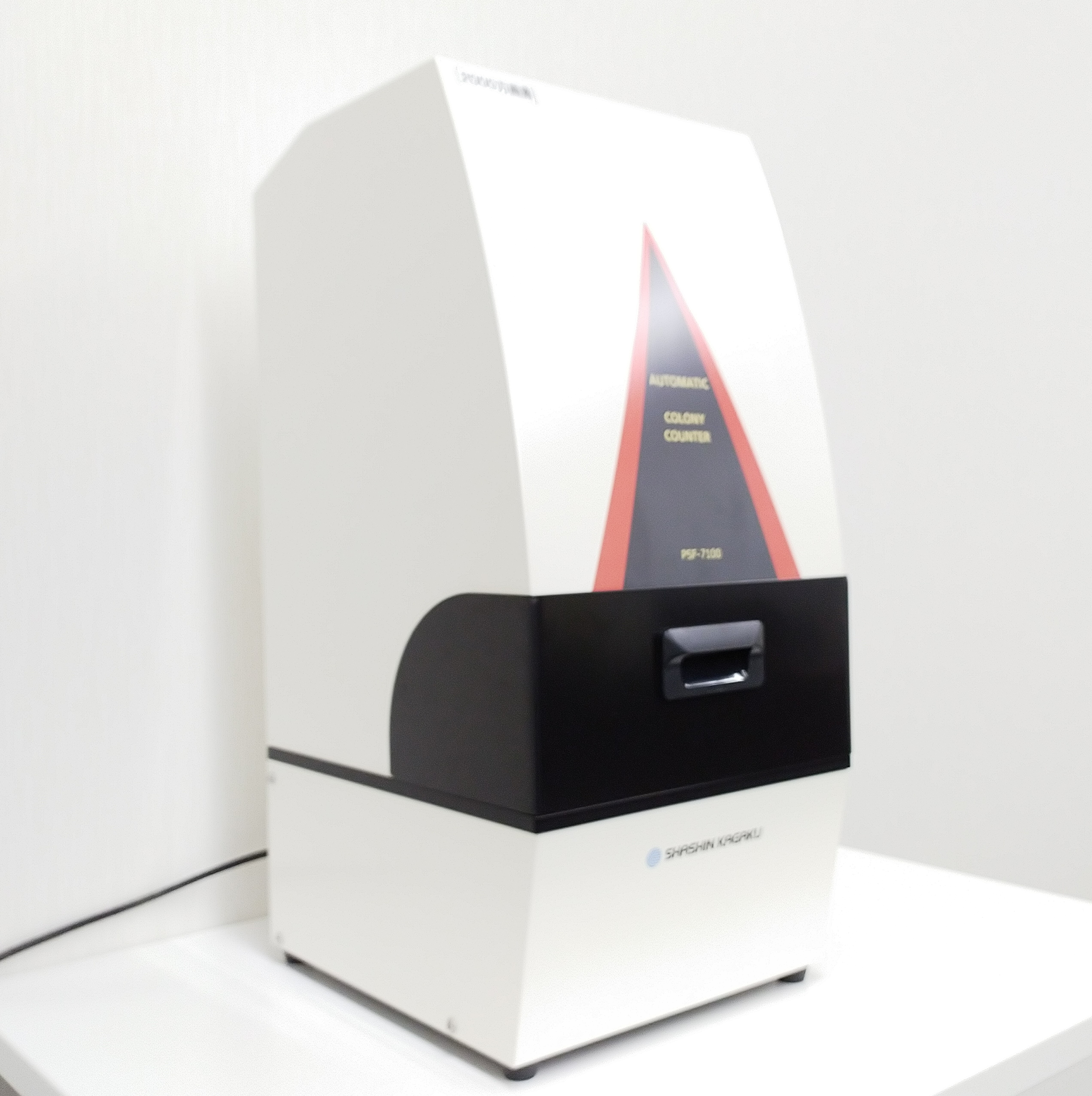

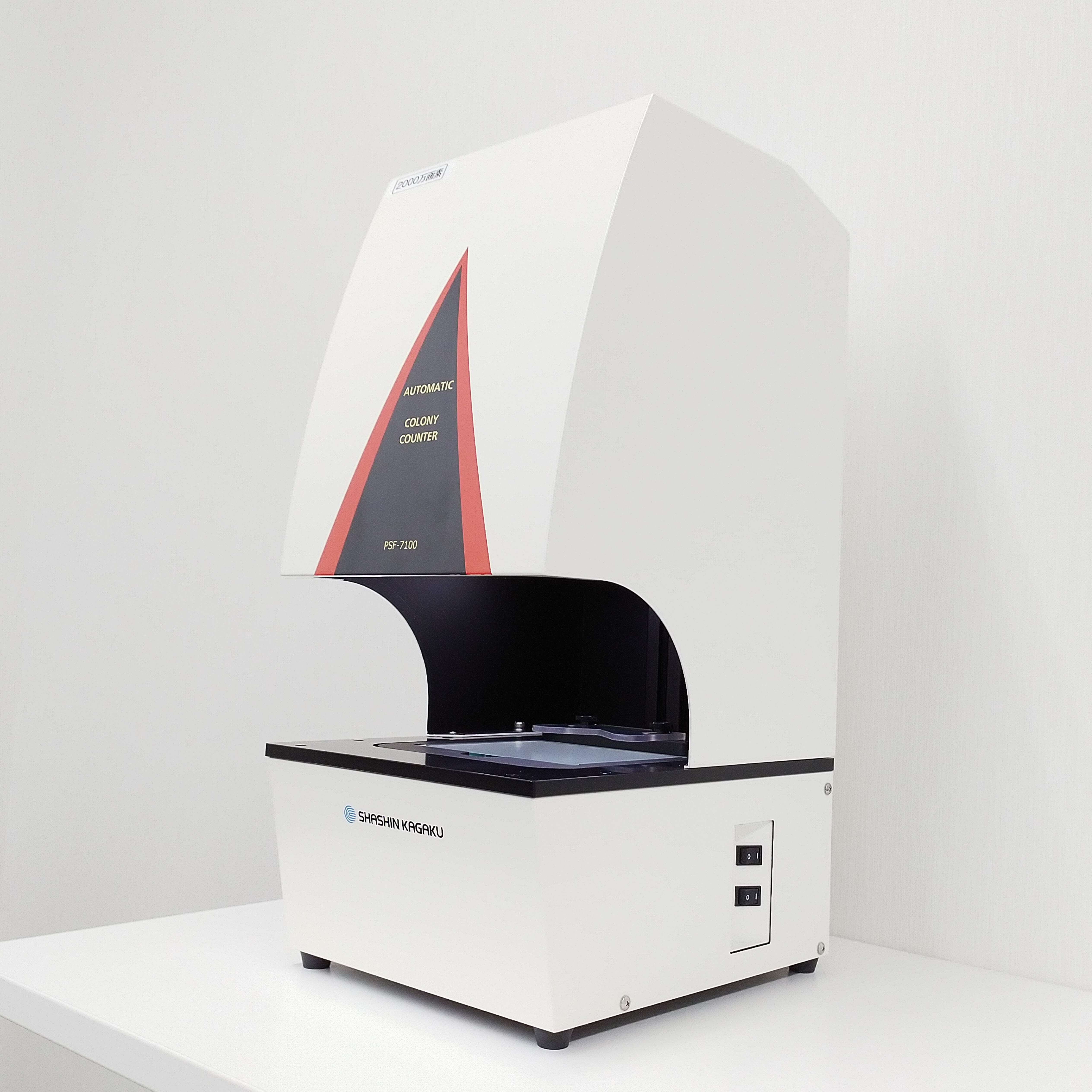

PSF-7100 is the top-level model boasts a resolution of 35 microns. It can also be used for counting stained cells.

PSF-7100W also supports 240×240mm dishes.



Features

• Uniform light source solves slight difference between culture medium and colonies. Necessity of uniform light source over the whole petri dish.
• Measurement functions when there is a residue or a sediment.
• Automatic delete function for a widespread colony.
• Manual adjustment for measurement result.



Specifications

Model	PSF-1100	PSF-2100	PSF-5100	PSF-7100	PSF-5100L	PSF-7100L	PSF-7100W
Dimensions of main unit	W280 × D351 × H630mm						W700 × D700 × H1220mm
Weight	19Kg						70Kg
Power Source	AC 1φ 100-240V 50/60Hz
System configuration	Main Unit only. (PC and Monitor are sold separately)
Operating environment	10-35 °C, 20-80 % humidity
Camera	Color CMOS camera
Number of pixels	3MP	5MP	12MP	20MP	12MP	20MP	20MP
Calculated resolution	67µm	53µm	34µm	28µm	50µm	42µm	69µm
Measurement object	Viable bacteria Colonies on petri dishes, Petri films, filters, compact dry, film media, Plaques and Inhibition zones *.
Maximum count area **	100×134mm				152×165mm		250×250 mm
Round Petri Dishes	up to φ100mm				up to φ150mm		up to φ200mm
Multi-well plates	6,12,24-wells. Optional software required.
Measurement time	1 to 5 seconds per petri dish. Depends on PC performance and measurement conditions.
Maximum number of colonies	20,000 colonies (settings can be changed)
Light shielding	Dust cover Shading Sliding Door is optional.		Shading Sliding Door				Rolling curtain
Top lighting (refiective)	Fixed type	Height adjustable ***					none
Bottom lighting	Darkfield and brightfield

* Optional software is required to inhibition zone measurement. This software is standard only in PSF-7100W.
** For square petri dishes, use one that is smaller than the maximum count area.
*** It is possible to change the height position of the top lighting. By this function, the outline of colonies can be clearly photographed.
