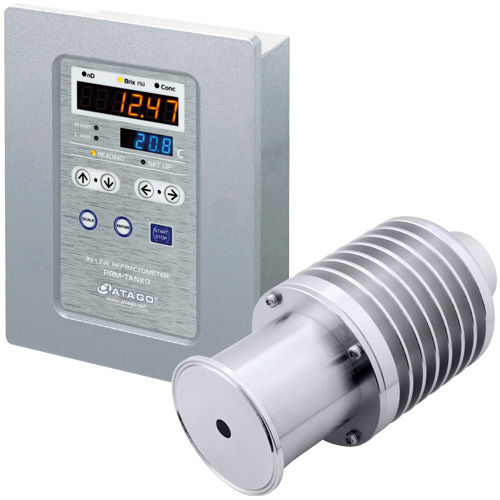

PRM-TANK100 Alpha FER Process Refractometer

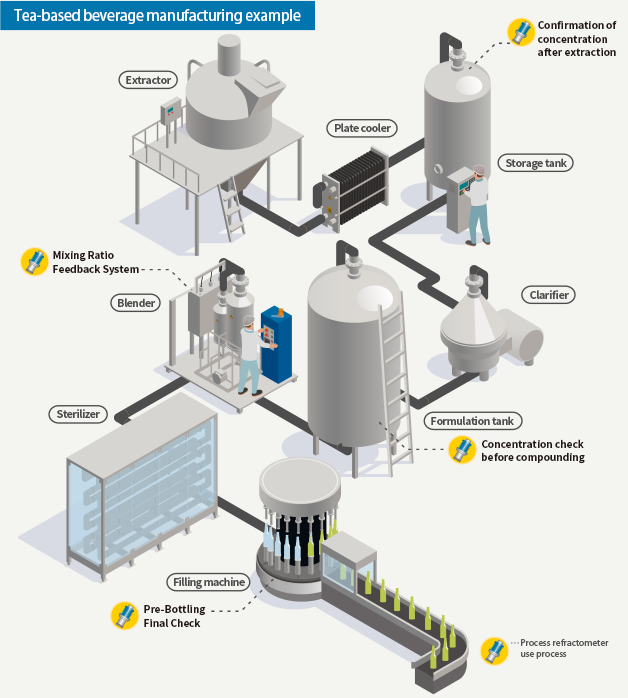

PRM-TANK100 Alpha FER Process Refractometer can measure real time concentration in the tank, extraction, boiling, mixing fermentation, juicing, filtration, etc.
WhatsappOverview
This model can be directly installed to the side of the tank
A process refractometer PRM-TANKα(FER) has a redesigned prism head of PRM-100α which makes installation on the side of a tank possible. This revolutionary model can measure real time concentration in the tank, extraction, boiling, mixing fermentation, juicing, filtration, etc. The detection section is completely flat to prevent sample accumulation even during extended measurement time.
Specifications
| Model | PRM-TANK100α FER |
|---|---|
| Cat.No. | 3577 |
| Measurement item | Refractive Index (nD) Brix,concentration,temperature |
| Range | Refractive index (nD) : 1.32000 to 1.55700 Brix : 0.00 to 100.00% Temperature : -5.0~160.0°C |
| Resolution | Refractive index (nD) : 0.0001 or 0.00001 Brix : 0.1 or 0.01% |
| Accuracy | Refractive index (nD) : ±0.00010 Brix : ±0.05% |
| Temperature compensation | 5.0 to 100.0°C |
| Output | RS-232C, DC4 to 20mA |
| Alarm output | Output alarm when measurement exceeds upper and lower limit |
| Cable | Cable between the detection and display units : 15m standard (extension available up to 200m) |
Accessories
· RS-232C Output Cable (Standard 10m) : RE-65301
· Alarm Cable : RE-65305
