PRM-TANK Alpha FLN Process Refractometer

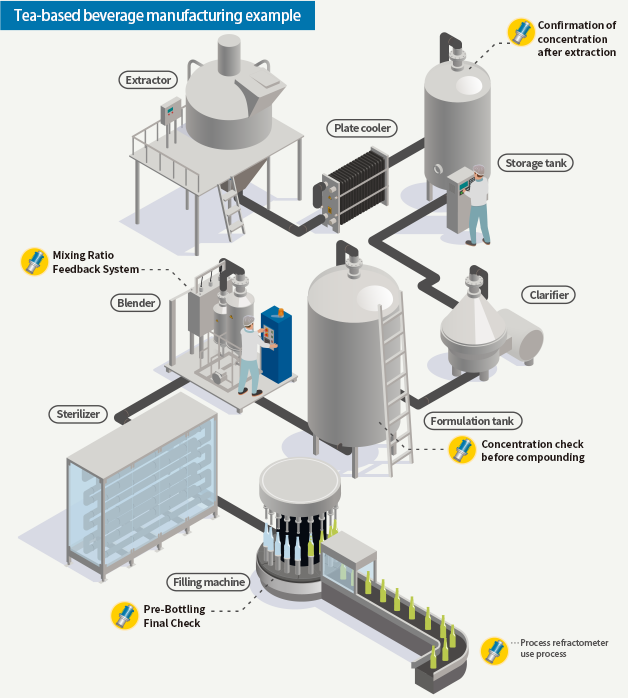

PRM-TANK Alpha FLN Process Refractometer is ideal for a variety of vessel types, such as distillers, condensers, blenders, fermenters, extractors, and filtration tanks.
WhatsappOverview

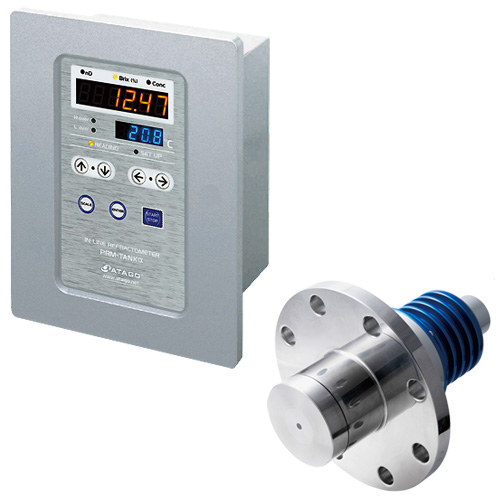

The PRM-TANKα Process Refractometer features a new design of the detection unit, which is to be mounted on the wall of a vessel. It is ideal for a variety of vessel types, such as distillers, condensers, blenders, fermenters, extractors, and filtration tanks. The flat sample stage prevents sample buildups, keeping the prism clean over an extended period of time.
Specifications
| Model | PRM-TANKα FLN |
|---|---|
| Cat.No. | 3575 |
| Measurement item | Refractive Index (nD) Brix,concentration, temperature |
| Range | Refractive index (nD) : 1.31700 to 1.51000 Brix : 0.00 to 85.00% |
| Resolution | Refractive index (nD):0.0001 or 0.00001 Brix : 0.1 or 0.01% |
| Accuracy | Refractive index (nD) : ±0.0001 Brix : ±0.1% |
| Temperature compensation | 5.0 to 100.0°C |
| Output | RS-232C, DC4 to 20mA |
| Alarm output | Open-collector output for high and low limit settings (alarm output) |
| Cable | Cable between the detection and display units : 15m standard (extension available up to 200m) |
Accessories
· RS-232C Output Cable (Standard 10m) : RE-65301
· Alarm Cable : RE-65305
