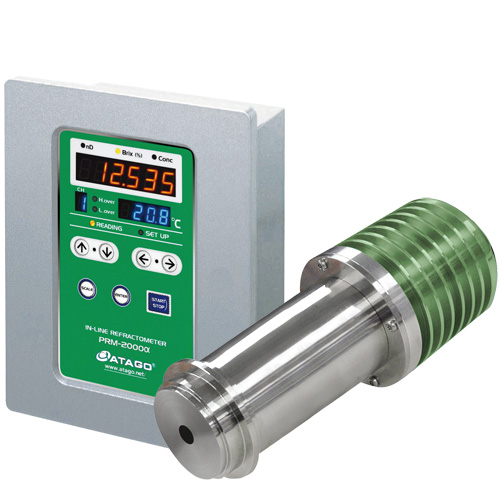

PRM-2000 Alpha In-line Refractometers
PRM-2000 Alpha In-line Refractometers features a Brix range of 0 to 20% with a high accuracy of ±0.007% up to Brix 2.000% and ±0.050% from Brix 2.001 to 20.000%.
WhatsappOverview
Introducing the newest PRM-2000α as an ideal In-line unit for Low Concentration solution!

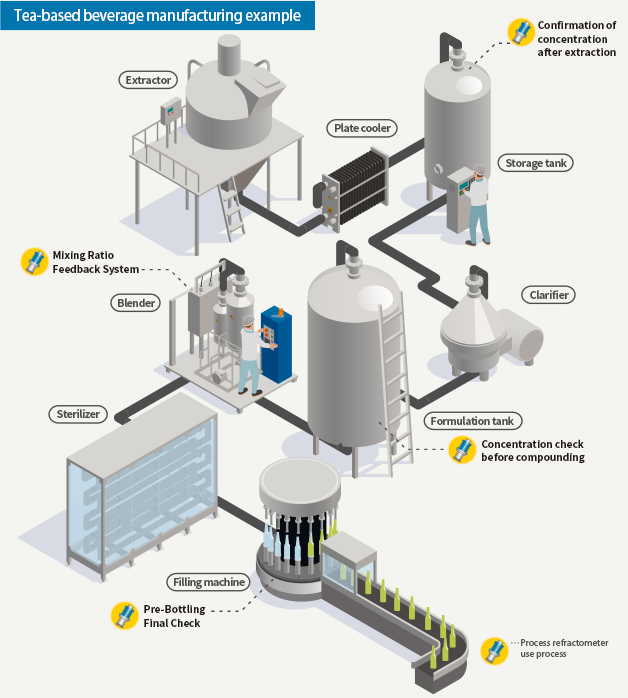

It features a Brix range of 0 to 20% with a high accuracy of ±0.007% up to Brix 2.000% and ±0.050% from Brix 2.001 to 20.000%.It is suitable not only for low-sugar beverage but also cleaning solution.The detection section is able to withstand temperatures between -30 to 165°C (during SIP / CIP).
Specifications
| Model | PRM-2000α |
|---|---|
| Cat.No. | 3641 |
| Measurement item | Refractive index,Brix(sucrose, high-fructose corn syrup,sugar-free), concentration(%) ,Temperature |
| Range | Refractive Index nD 1.32069 to 1.36500 Brix 0.000 to 20.000% |
| Resolution | nD 0.00001 Brix 0.001% |
| Accuracy | nD +-0.00001 (1.32069 to 1.33681) nD +-0.00010 (from 1.33682 up) Brix +-0.007% (0.000 to 2.000%) Brix +-0.050% (from 2.001% up) |
| Temperature compensation | 5 to 90°C |
| Wetted parts temperature resistance | -30 to 165°C |
| Output | RS-232C, DC4 to 20mA |
| Alarm output | Open-collector output for high- and low-limit settings (Alarm output) |
| Cable | Between the detection section and calculation display section (15m) (maximum up to 200m) |
