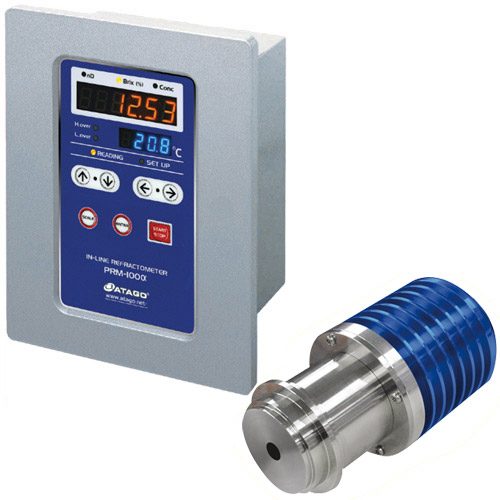

PRM-100 Alpha - Hastelloy In-line Brix Monitor
PRM-100 Alpha - Hastelloy In-line Brix Monitor is a model in which the wetted part is made of Hastelloy.
WhatsappOverview
PRM-100α-Hastelloy In-line Brix Monitor is a model in which the wetted part is made of Hastelloy, while standard model PRM-100α is made of SUS316L. Please choose the right model according to chemical resistance of liquid to be measured.
Specifications
| Model | PRM-100α-Hastelloy |
|---|---|
| Cat.No. | 3674 |
| Measurement item | Refractive Index (nD), Brix, concentration (%),temperature. |
| Range | Refractive index (nD) : 1.32000 to 1.55700 Brix : 0.00 to 100.00% |
| Resolution | Refractive index (nD) : 0.0001 or 0.00001 Brix : 0.1 or 0.01% |
| Accuracy | Refractive index : ±0.00010 Brix : ±0.05% |
| Temperature compensation | 5.0 to 100.0°C |
| Wetted parts temperature resistance | 5 to 150°C |
| High and low limit setting | High and low control limits can be set with keys. |
| Output | RS-232C, DC4 to 20mA |
| Alarm output | Open-collector output for high- and low-limit settings (alarm output). |
| Cable | Detection section - Display section (power supply 12V and RS-485) Length: standard 15m (maximum up to 200m) |
