Pipette

Overview

Calibrated micropipettes eliminate the cost and trouble of making your own micropipettes

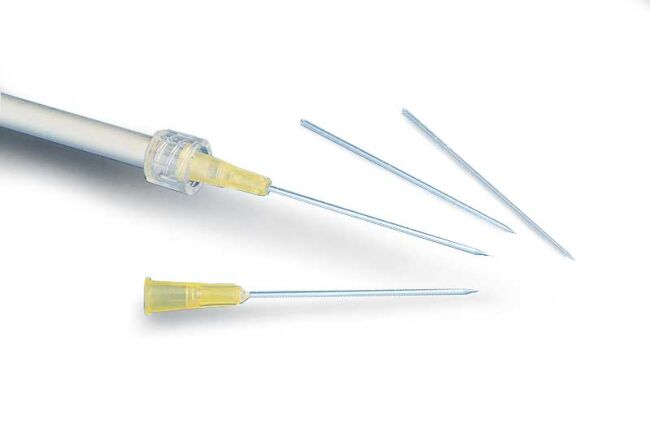

WPI can quickly supply your need for consistently sized, pre-pulled, glass, calibrated micropipettes. Tip diameters (ID) range from 0.1 to 10 µm. Silanized Tips (Luer Shank) are available. Silanization waterproofs the glass to retard water when inserting into cell. This will not let the outside fluid run down the glass pipettes and get inside so easily.These glass needles are fabricated from Schott Duran borosilicate glass.



Applications:

• CCIT (Closed Container Integrity Testing)
• Injection of dyes or proteins into cells, oocytes or other biomedical laboratory applications
• Package Integrity Testing
• Sterile Barrier Testing


Certificate of Compliance

A Certificate of Compliance is available for these MicroTips. Please request one when placing your order.

• Every glass pipette individually tested and inspected
• Schott Duran borosilicate glass pipettes
• 0.5 µm and smaller ID micropipettes include internal glass fiber for easy filling
• Tip inner diameter tolerance ±20%
• Short taper yields high strength
• Nominal length ≈ 50 mm
• OD:ID = 1.33:1
• Vacuum packed
• Luer fitting
• Glass Outside Diameter: 1.0mm thin wall
• MicroTips with an ID smaller than 1µm have a filament
• 10 per package



Glass Pipette Options

Order code	Tip ID	Glass OD	Filament	Fire Polish
TIP01TW1F	0.1µm	1.0mm Thin wall	Yes	No
TIP02TW1F	0.2 µm	1.0mm Thin wall	Yes	No
TIP03TW1F	0.3 µm	1.0mm Thin wall	Yes	No
TIP04TW1F	0.4 µm	1.0mm Thin wall	Yes	No
TIP05TW1F	0.5 µm	1.0mm Thin wall	Yes	No
TIP1TW1	1 µm	1.0mm Thin wall	No	Yes
TIP2TW1	2 µm	1.0mm Thin wall	No	Yes
TIP5TW1	5 µm	1.0mm Thin wall	No	Yes
TIP10TW1	10 µm	1.0mm Thin wall	No	Yes
TIP20TW1	20 µm	1.0mm Thin wall	No	Yes
TIP30TW1	30 µm	1.0mm Thin wall	No	Yes



Other options

Order code	Tip ID	Glass OD	Filament	Fire Polish
TIP10XV119	10 µm	1.14mm A203XV glass*	No	Yes
TIP15LT	-	1.5mm	No	Yes
TIP15FLT	-	1.5mm	Yes	Yes

*10µm ID, 1.14mm capillary pipetters are for use in WPI's Nanoliter 2010.

Benefits

• Calibrated Micropipettes can be purchased with Plain Shank or Luer Fittings

Applications

• Injection of dyes or proteins into cells, oocytes or other biomedical laboratory applications



Specifications

CTE (20 °C; 300 °C)		3.3± 0.110-6/K
Transformation temperature Tg		525 ± 15 °C
Density		2.23 ± 0.02 g/cm3
Temperature  at the viscosity	1013 dPa·s 107.6 dPa·s  104 dPa·s	560 ± 10°C 820 ± 10°C 1260 ± 20°C
Heat conductivity l at 100 °C  Specific heat CP		1.2W/(m·K) 0.8J / (g·K)
Elasicity-modulus  Poisson-ratio μ		64GPa 0.20GPa
Photoelasticity Refractive index nd		4.0·10-6 mm² / N 1.473mm² / N
Relative dielectric constant  tan d	at 1 MHz and 25 °C	4.6 10-4 37 10-4
Tk 100 (DIN 52326)		250°C
Classes of chemical stability	water  acid  alkaline solution	DIN ISO 719  DIN 12 116 DIN ISO 695
