Syringe Filter

Introduction

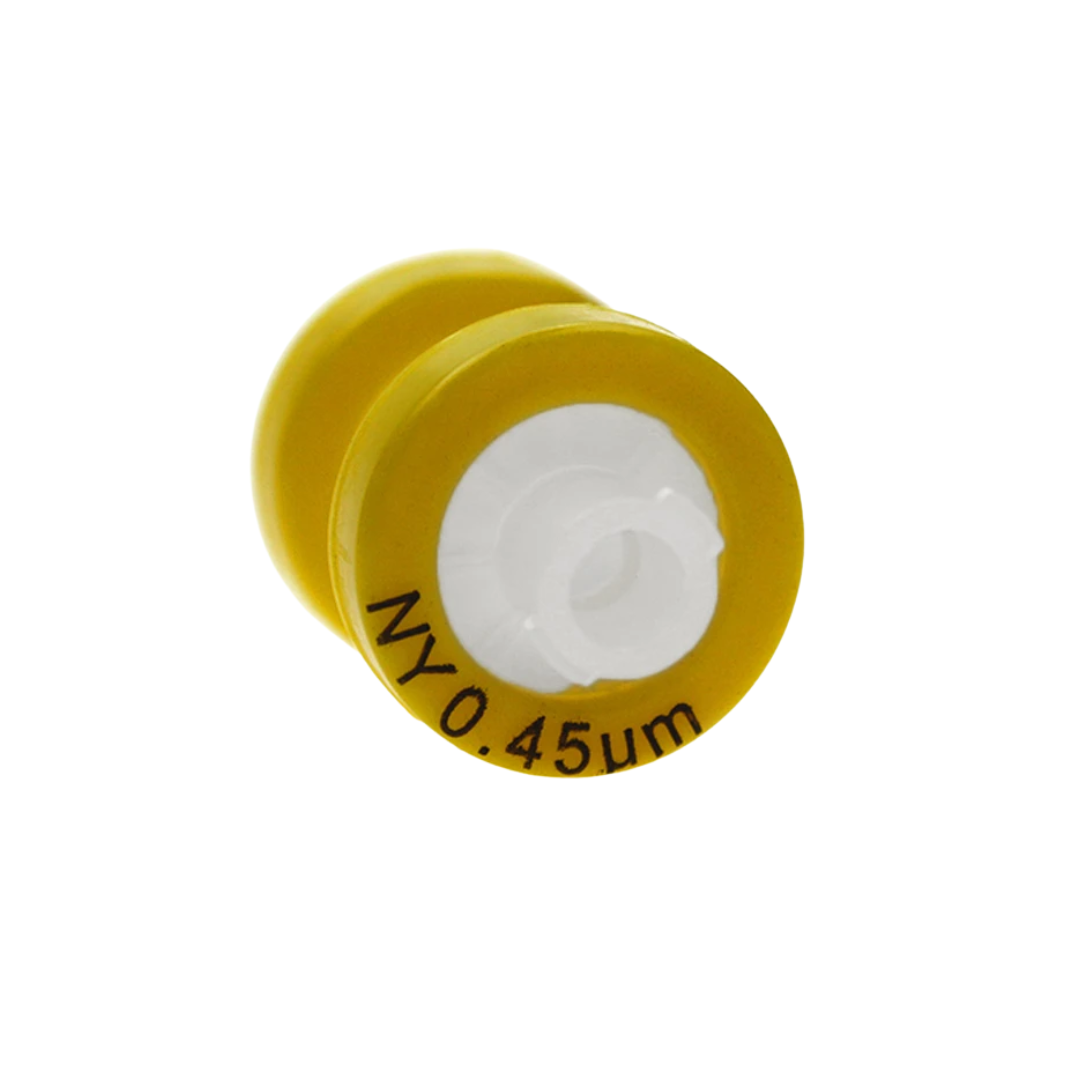

Microlab Nylon syringe filters offer universal application for analytical procedures. Hydrophilic Nylon is ideal for aqueous (non-acidic) or organic samples and HPLC, GC or dissolution sample analysis. With its excellent flow characteristics, very low extractable levels, and mechanical stability, Nylon offers the best combination of physical parameters to meet the most stringent analytical needs in 4mm, 13mm, 17mm, 25mm, and 33mm diameters. The naturally hydrophilic, high protein binding, and high dirt loading capacity of Nylon are natural advantages.



Features

• Hydrophilic property
• No need to moist beforehand
• Uniform aperture
• Strong tenacity and adsorbability
• Syringe Filters for Cell Culture provide effective filtration for a wide variety of sample types
• Designed with a Female Luer-Lok inlet and Male Luer-Slip outlets
• Sterile Nylon Syringe Filters are individually wrapped sterile, certified RNase-free, Dnase- free, and DNA –free with Non-pyrogenic



Applications

• Electric semiconductor industrial water filtration
• Chemicals filtration
• Beverage filtration



Specifications

Parameters	13mm		25mm		33mm
Membrane material/Housing Material	Nylon/PP
Wettability	Hydrophilic
Filtration area (cm2)	0.92		2.98		4.9
Inlet/Outlet	Female luer lock/Male luersilp
Normal Pore Size (μm)	0.22	0.45	0.22	0.45	0.22	0.45
Holdup volume (μl)	<10		<50		<10
Sample volume (ml)	<10		<80		<120
Maximum Operating Temperature	100°C		100°C		100°C
Maximum Operating Pressure (psi)	>87		>87		>87
Applicable pH value	3-12		3-12		3-12
