NMReady - 60PRO Benchtop NMR Spectrometers

60PRO Benchtop NMR Spectrometers is the next generation of compact 60 MHz NMR spectrometers from Nanalysis. This dual-channel benchtop NMR Spectrometers was designed to improve workflow for customers that require high performance, multinuclear spectral acquisition.

Whatsapp

Overview

The NMReady-60PRO is the next generation of compact 60 MHz NMR spectrometers from Nanalysis.  This dual-channel benchtop NMR Spectrometers was designed to improve workflow for customers that require:

  •  High performance, multinuclear spectral acquisition
  •  Advanced features and experiments
  •  Market-leading compact size and weight



Features

Superior Performance

  • 60 MHz NMR (1.4 T)

  • Standard 5mm NMR tubes

  • less than 1.0 Hz (20 ppb) @ FWHM

  • Dual mode (e.g., 1H/13C or 1H/31P)

  • Standard modifiable experiments (e.g., 1D, 1D{1H}, T1, T2, COSY, JRES, HSQC)

  • Pulse Program Control



Innovative Design

  • All-in-one compact enclosure

  • Only 55 lbs (25 kg)

  • 11.8″ x 11.0″ x 19.2″ (30x28x49 cm)

  • Large 10″ LCD display (4:3 ratio)

  • Touchscreen usable with gloves on/off

  • Standard wall outlet power

  • 2 Gauss line contained within the enclosure



Supreme Usability

  • Easy-to-use on-board acquisition and processing software

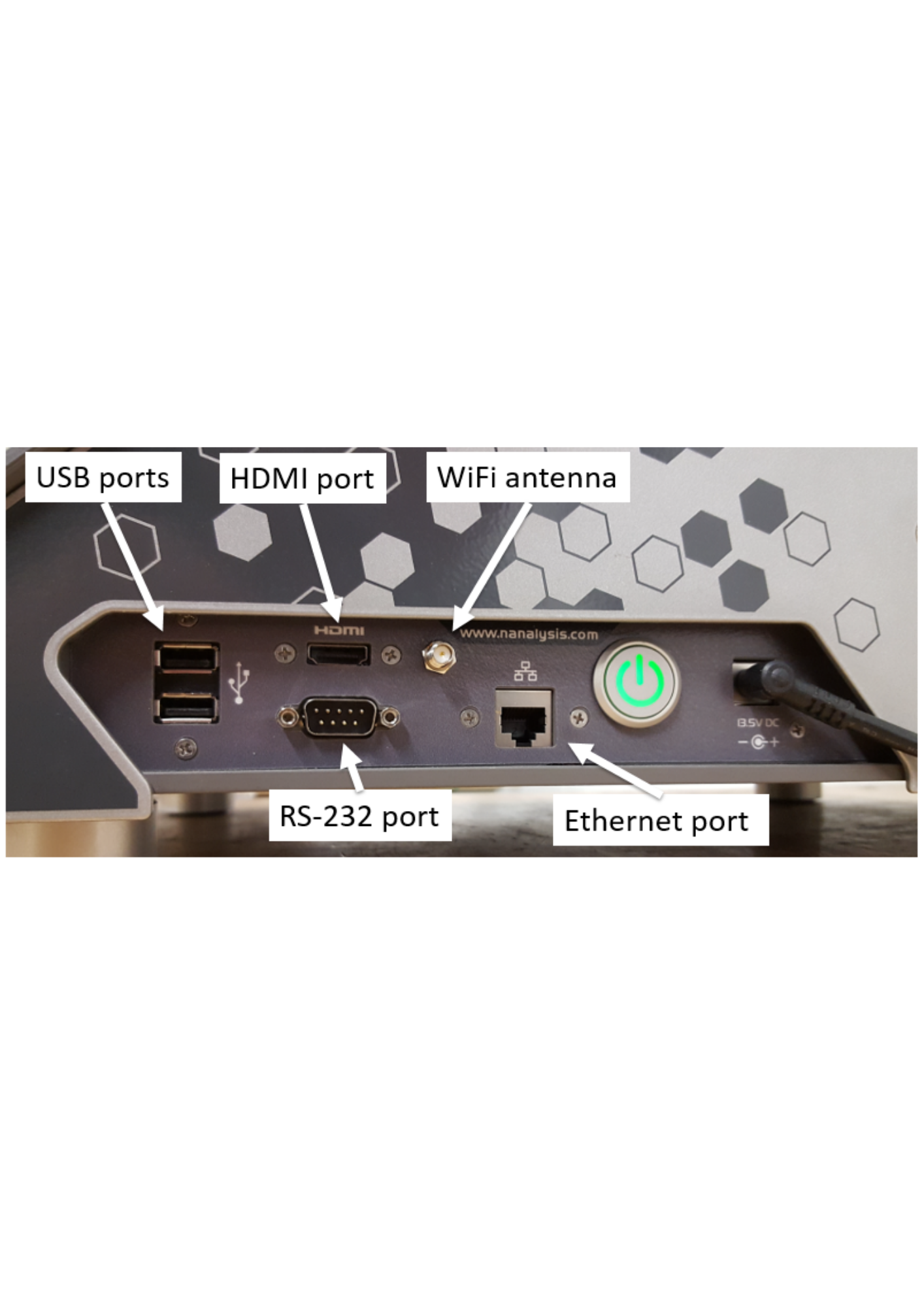

  • Good connectivity (i.e., Ethernet, Wi-Fi, USB)

  • Network access for printing, data retrieval, or Internet based customer service

  • Standard JCAMP-DX files

  • Optional Programmatic Interface (API)

  • Secure login & user profiles available



Multinuclear Capabilities

The NMReady-60PRO benchtop NMR spectrometer can be tuned to acquire spectra for two conventional spin active nuclei, as requested.  This enhances the utility for characterizing a broad range of natural and synthetic products.

Currently, the instrument’s supported nuclei are: 1H (60 MHz), 7Li (24 MHz), 11B (19 MHz), 13C (15 MHz), 19F (56 MHz), and 31P (25 MHz), inquire about others.



Optional Features

  • Kinetics package capabilities for reaction monitoring

  • Signal suppression

  • Experiment designer

  • Applications Programmatic Interface (API) for developing your own applications

  • Remote control of instrument from computer, smartphone, tablet, etc.

  • Non-deuterium lock options

  • Secure login and user profiles with custom project settings



Technical Specifications

Operating Frequency: 60 MHz (1.4 T)
Magnet: Permanent, no cryogens
User Interface: Built-in Touchscreen or Windows, Mac or Linux compatible
Nuclei: Dual-tuned: e.g., 1H/13C,1H/31P, 1H/19F, 1H/11B, 19F/7Li, please inquire for more
Lock: Deuterium with non-deuterium options
Sample: Standard 5mm NMR tubes or flow options
Output File Compatibility: JCAMP-DX, Mestrelab MNova, Bruker TopSpin, ACD/Labs, JEOL Delta, Spinworks
Monitoring Software Compatibility: LabVIEW (via NMReadyCONNECT API), Mestrelab MNova SMA
Resolution: LWFH ≤ 1.0 Hz (20 ppb)
Sensitivity (SNR): 100:1 (1% EtBz single scan)
Stray Field: 2 Gauss line contained within enclosure
Operating Temp: 18-26°C
Power: 100-240 VAC, 50-60 Hz
Dimensions: 11.8" x 11.0" x 19.2" (30 x 28 x 49 cm)
Weight: 55 lbs (25 kg)
Networking: Ethernet, Wi-Fi
