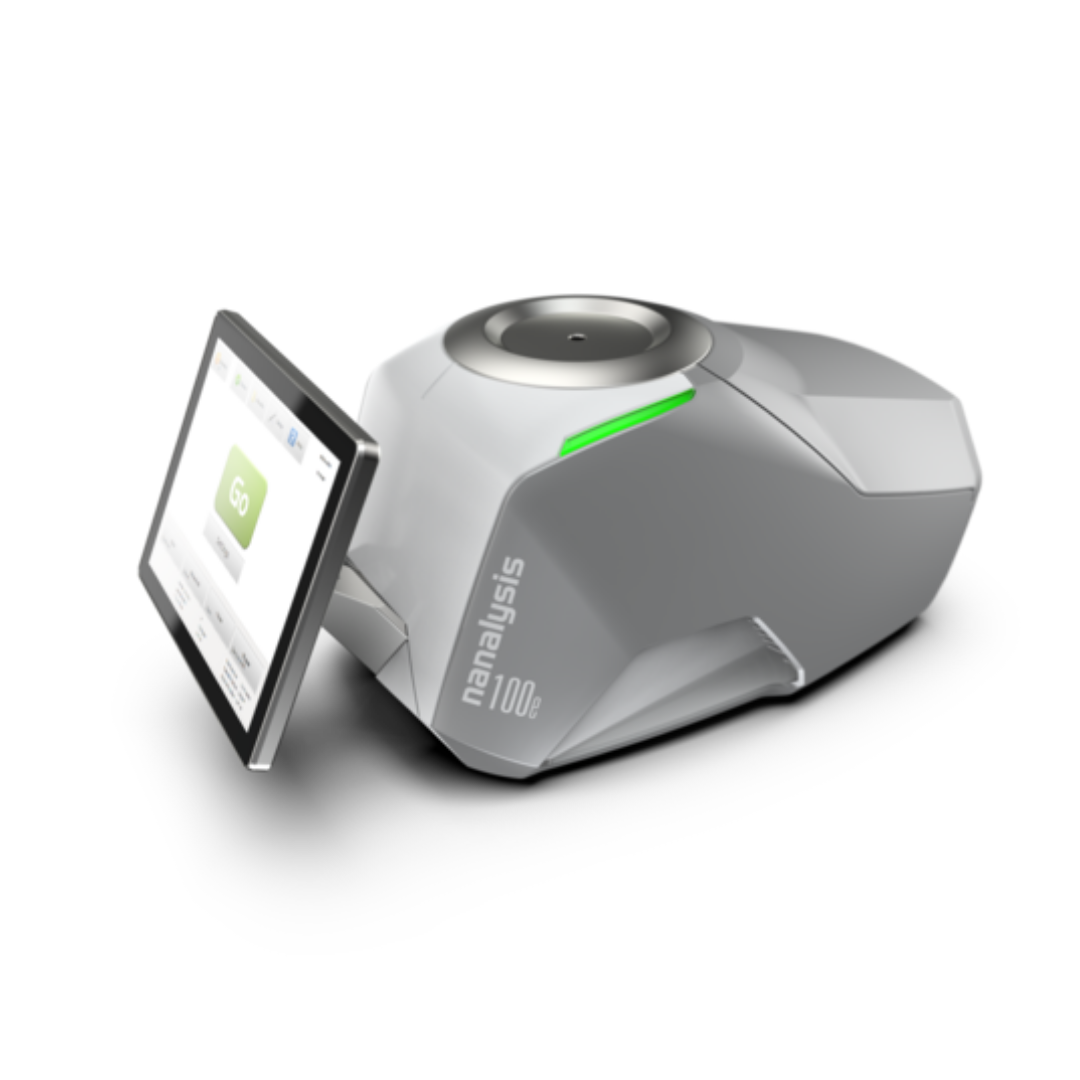

Benchtop NMR Spectrometers

The powerful 100e benchtop NMR Spectrometers is based on the world’s strongest compact NMR magnet platform - 2.35T (corresponding to 100 MHz 1H NMR!)

Single-channel 100 MHz benchtop NMR spectrometer engineered for high-performance routine screening of 1H NMR spectra.

• Unparalleled resolution - improved chemical shift dispersion
• Superior sensitivity - run samples at sub milli-molar concentrations
• Ergonomic display - large, maneuverable, user-friendly external touchscreen computer
• Unmatched stability - e.g., vibrational feet, extra thermal regulation



Optional Features

• Kinetics package capabilities for reaction monitoring

• Signal suppression

• Experiment designer to allow you to write your pulse programs

• Applications Programmatic Interface (API) for developing your own applications

• Remote control of instrument from computer, smartphone, tablet, etc.

• Deuterium lock

• Secure login and user profiles with custom project settings

• IQ/OQ/PQ Protocols



Specifications

Operating Frequency	100 MHz (2.35T)
Magnet	Permanent, no cryogens
User Interface	Integrated computer and/or remote accessibility
Nuclei	1H or 19F
Lock	Internal 1H or 2H
Sample	Standard 5mm NMR tubes
Compability	JCAMP-DX, MNova, TopSpin, ACD/Labs, Delta, Labview, Matlab
Resolution & Lineshape	< 1.0 Hz
Sensitivity	>220:1 (1% EtBz)
Operating Temperature	16 to 28°C
Power Supply	100-240 VAC, 50-60 Hz
Dimensions	37.1 x 41.1 x 65.4 cm
Weight	84 kg
