Overview

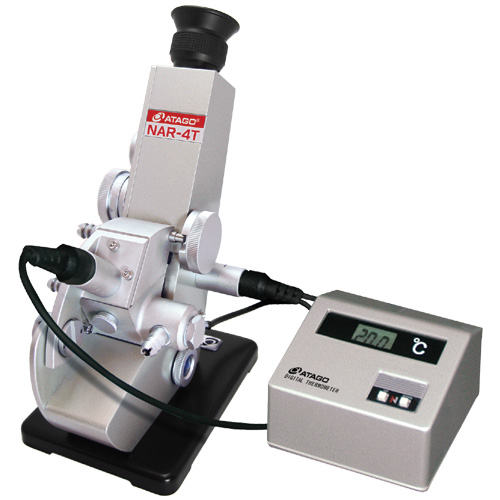

R&D on new materials for modern technologies is being actively conducted in every industry. Many of these materials (especially polymer film and related materials) are of high refractive index-often too high for the existing Abbe refractometers. But these are now covered with the nD1.4700 to 1.8700 range of the NAR-4T.
Specifications
| Model | NAR-4T |
|---|---|
| Cat.No. | 1240 |
| Range | Refractive index (nD) : 1.4700 to 1.8700 |
| Minimum Scale | 0.001 |
| Accuracy | ±0.0002 |
| Measurement Temp. | 5 to 50°C (Temperature range available of the circulating water) |
| Light source | LED (Approximating to wavelength of D-Line) |
| Dimensions & Weight | 13×18×23cm, 2.5kg (Refractometer) 10×11×7cm, 0.5kg (Thermometer) |
Special Order Option : The sample stage height can be customized.
Accessories
· Test piece A with m-naphthalene : RE-1195
· Test piece C with m-naphthalene : RE-1197
· Test piece D for measurement of film : RE-1498
· Test piece E for measurement of film : RE-1499
· Monobromona-phthalene as contact liquid : RE-1196
· Methylene iodide containing sulfur solution : RE-1199
· Contact liquid LJ : RE-99080
· Eyepiece for polarizing : RE-1146
· Desiccant (10g) : RE-8100
· Tube band : RE-8507
