Abbe Refractometer

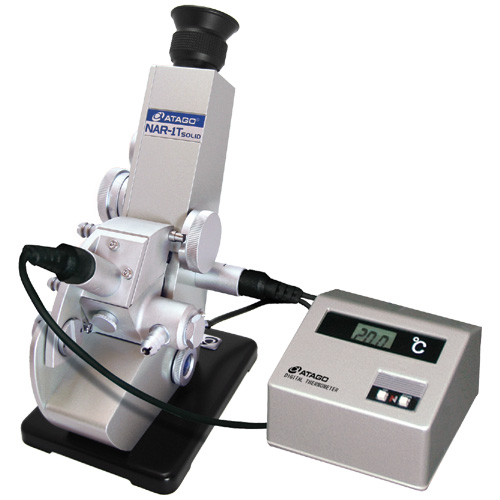

NAR-1T SOLID Abbe Refractometer is suitable to measure the Refractive Index Scale and the BRIX scale for liquid and solid samples.



Specifications

Model	NAR-1T SOLID
Cat.No.	1212
Range	Refractive index (nD) : 1.3000 to 1.7000 Brix : 0.0 to 95.0%
Minimum Scale	Refractive Index (nD) : 0.001 Brix : 0.5%
Accuracy	Refractive index (nD) : ±0.0002 Brix : ±0.1%
Average dispersion value	nF-nC (to be calculated according to conversion table)
Measurement Temp.	5 to 50°C
Light source	LED (Approximating to wavelength of D-Line)
Dimensions & Weight	13×18×23cm, 2.5kg (Refractometer) 10×11×7cm, 0.5kg (Thermometer)

Special Order Option : The sample stage height can be customized.



Accessories

· 10% Sucrose (±0.03%) : RE-110010

· 20% Sucrose (±0.03%) : RE-110020

· 30% Sucrose (±0.03%) : RE-110030

· 40% Sucrose (±0.04%) : RE-110040

· 50% Sucrose (±0.05%) : RE-110050

· 60% Sucrose (±0.05%) : RE-110060

· Test piece A with m-naphthalene : RE-1195

· Test piece C with m-naphthalene : RE-1197

· Test piece D for measurement of film : RE-1498

· Monobromona-phthalene as contact liquid : RE-1196

· Methylene iodide containing sulfur solution : RE-1199

· Eyepiece for polarizing : RE-1146

· Desiccant (10g) : RE-8100

· Tube band : RE-8507
