Microtome

Overview

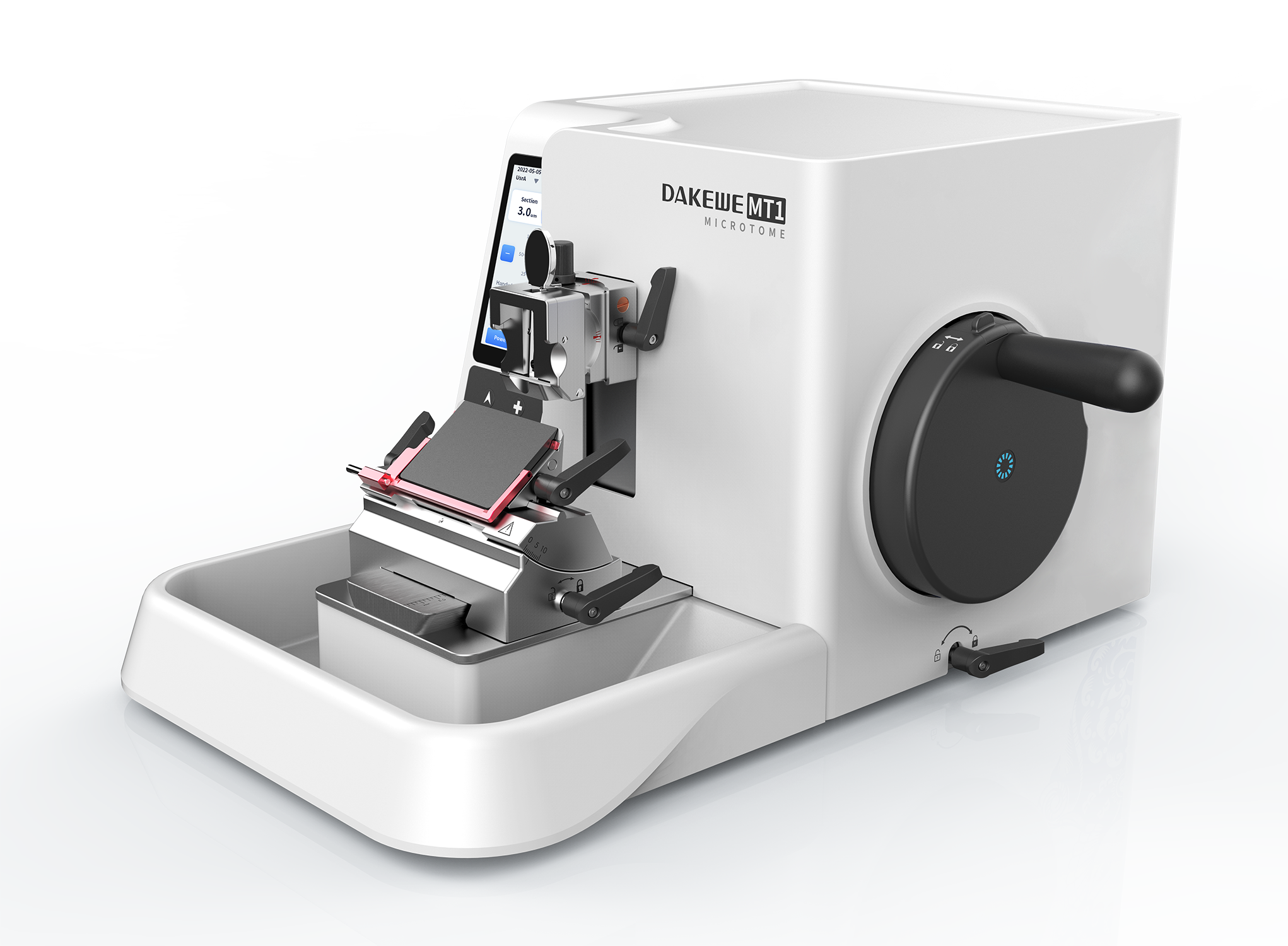

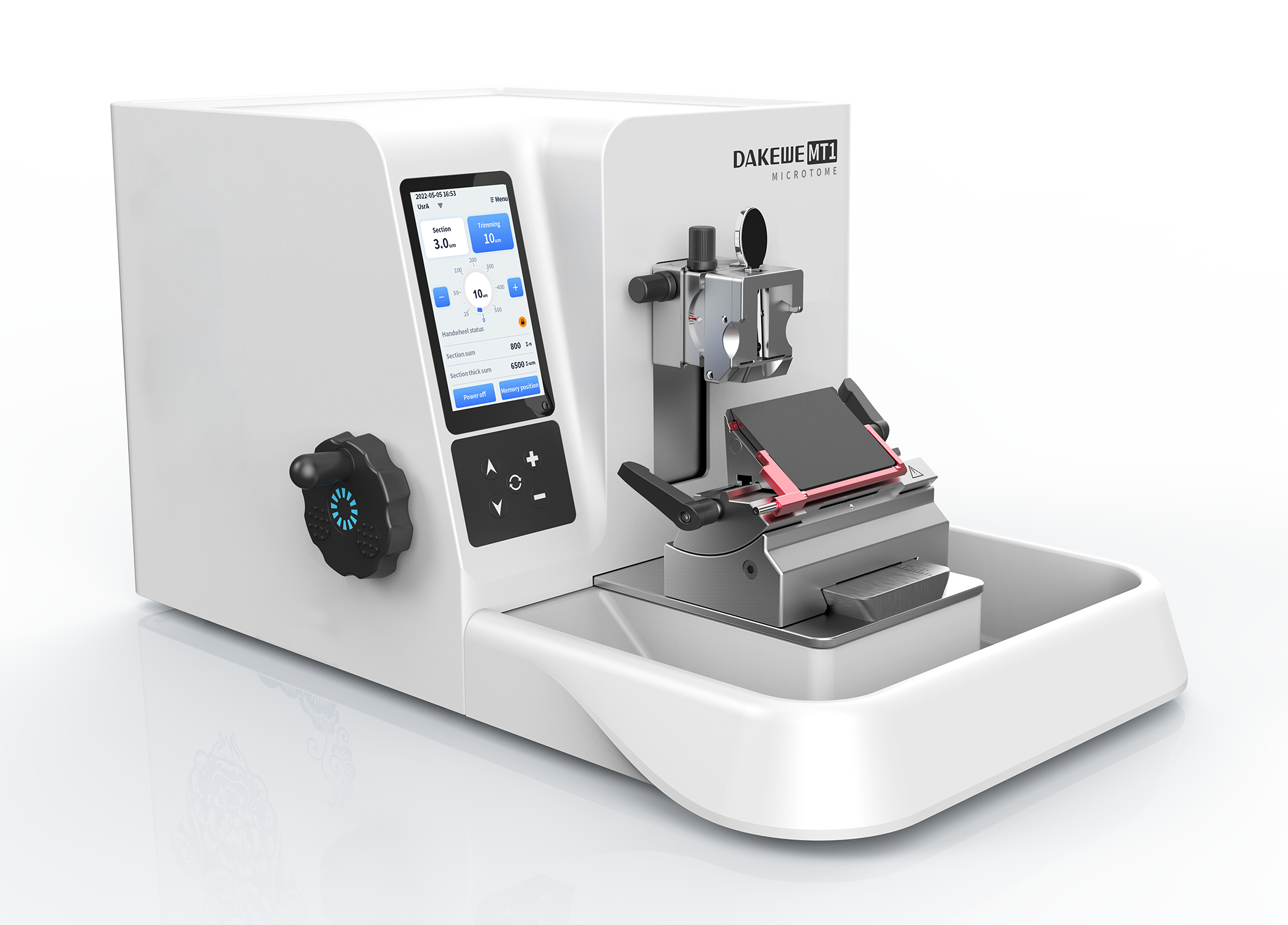

Dakewe MT1 semi-automated rotary microtome offers quality sections and effortless experience with engineered mechanism and ergonomic design, adapting to the need of every microtomists in the laboratory.



Features

Precision oriented

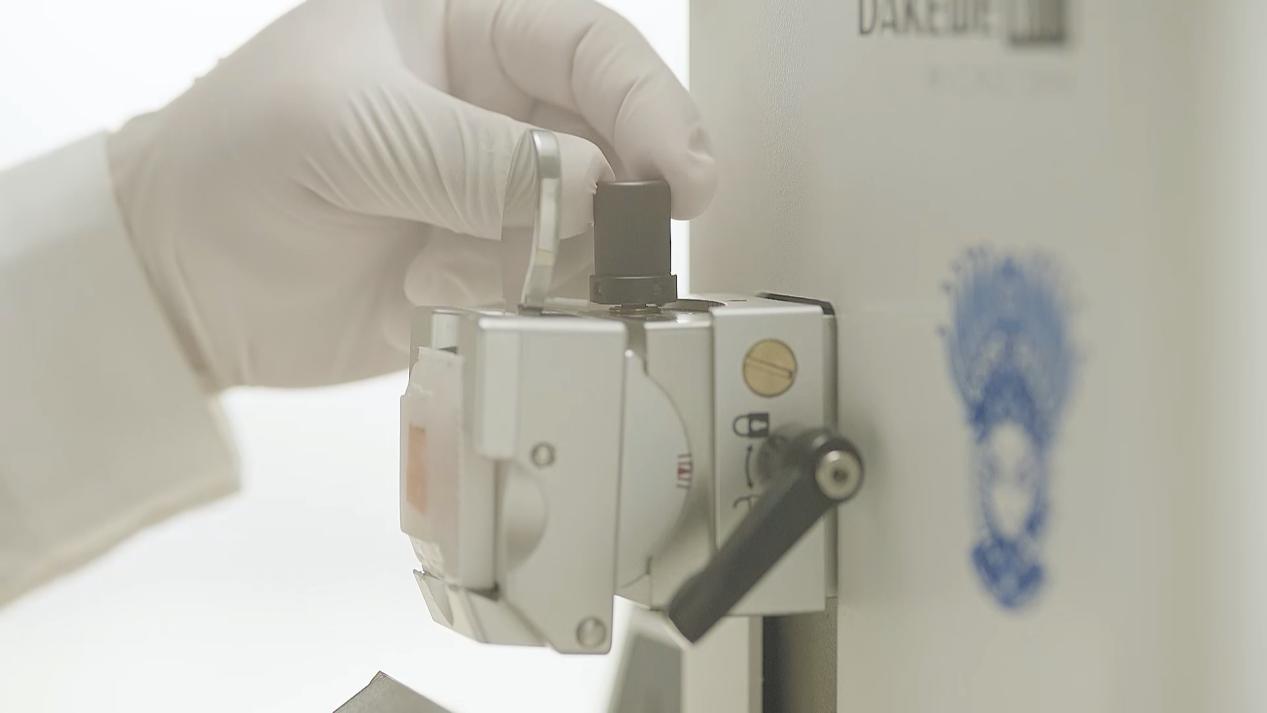

• ±8° X/Y orientation with clear graduation enables fast alignment of the specimens.

• Patented 0 position indicator with pleasant motion feedback.

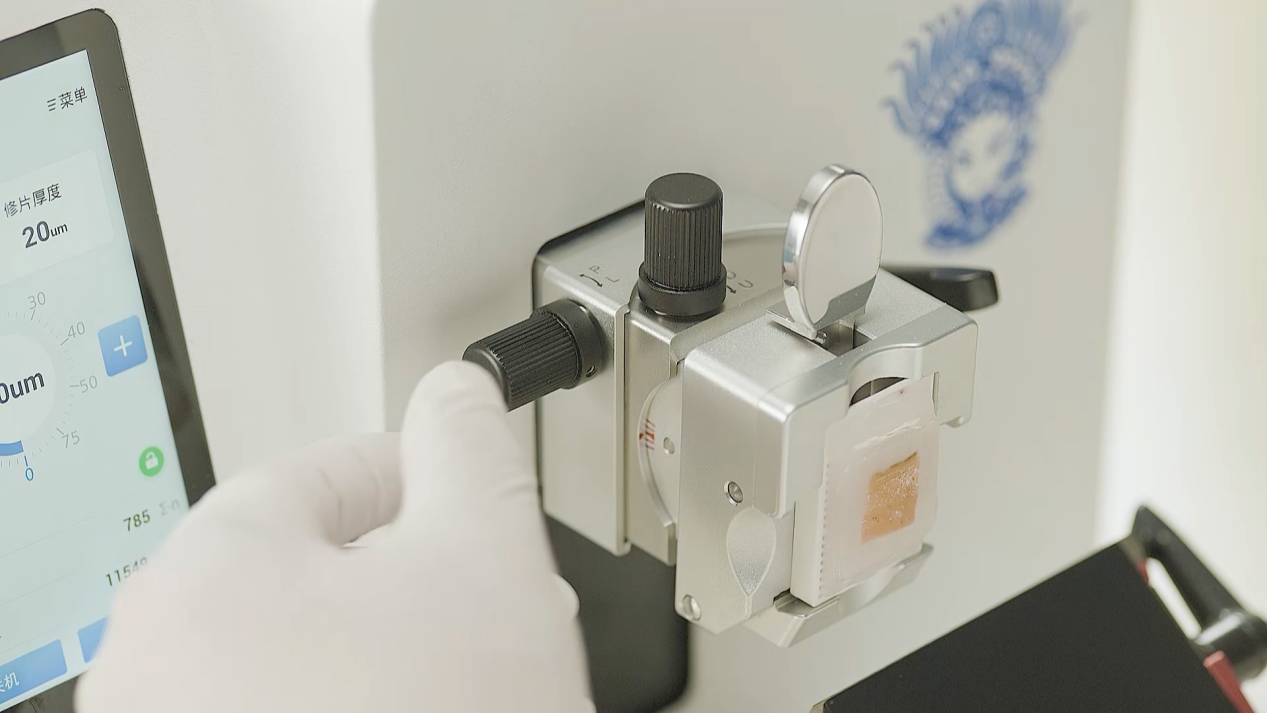

• Coarse feed wheel with pleasant motion feedback.

• Position memory function brings specimen head to desired position in one touch.

• Motorized system offers steady and even-speed movement.



Ergonomics infused

• Smooth-running and light hand wheel thanks to expertly designed force balance system.

• Thumb design on the hand wheel for the thumb to rest on amid heavy workload.

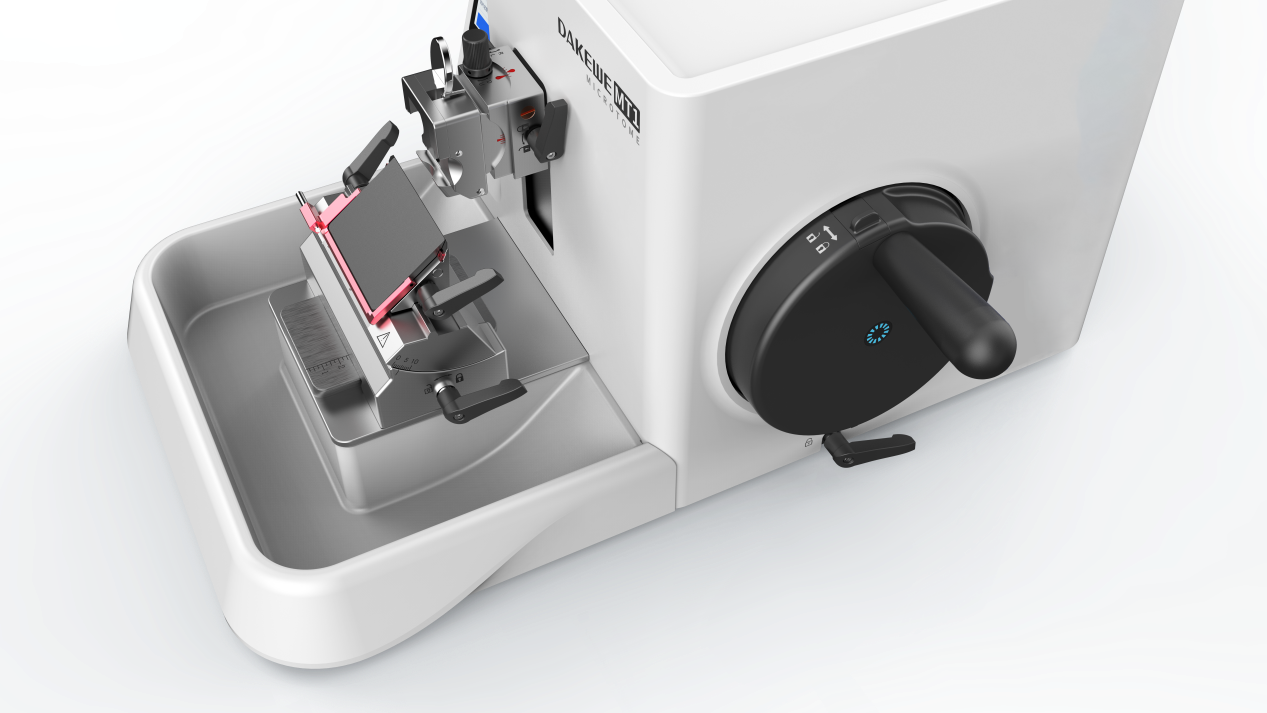

• Large volume, removable waste tray with slope interior for effortless cleaning.

• Rounded corner in every corner protects laboratory technicians.

• Bottom glider makes cleaning easier.



Adapt to users

• Rocking mode allows trimming without a full rotation of handwheel, reducing fatigue.

• Smart switch between rocking mode and sectioning.

• 3-in-1 coarse feed wheel with reversible wheel direction adapts to the microtomists’ preference.

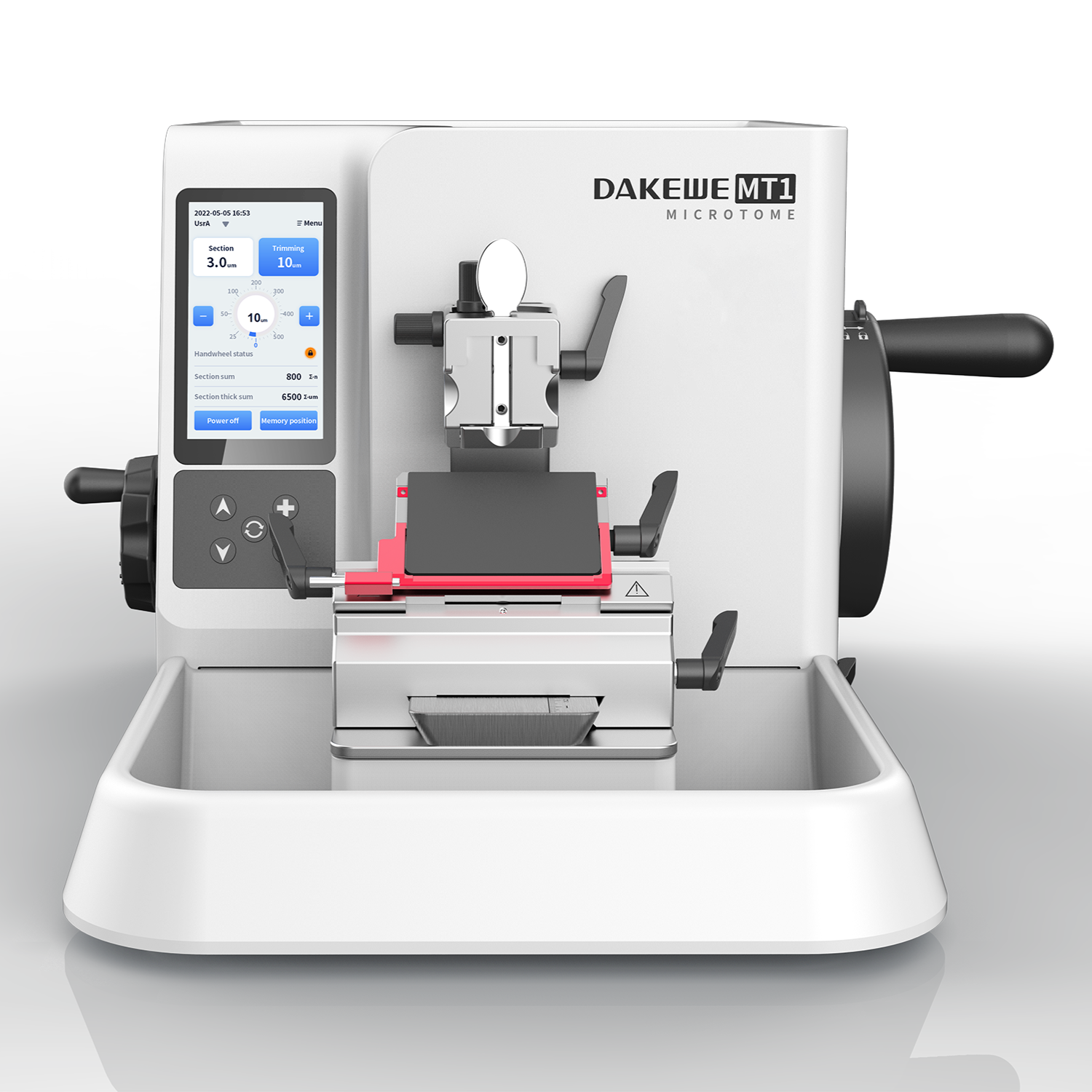

• 5 inch touch screen with concise UI and physical control panel allow intuitive control.

• 2-in-1 blade holder for high and low profile blades.



Engineered mechanisms

• Ultra-precise, sleek rail with cross roller bearings and force balance system bring ultimate sectioning

• experience and reliability

• Fine step angle stepper motor for precise sectioning

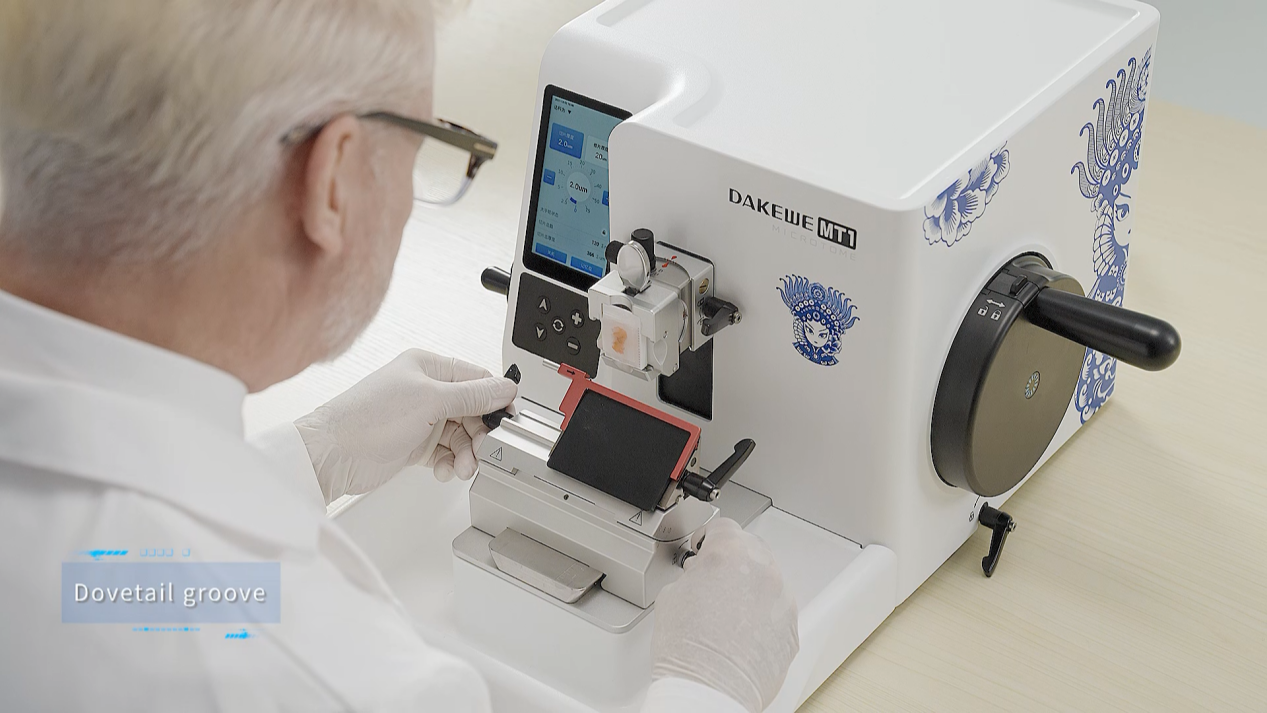

• Dovetail groove blade holder base guarantees stable, wobbling-free operation

• Double lock ensures safety



Joint effort of engineering and art

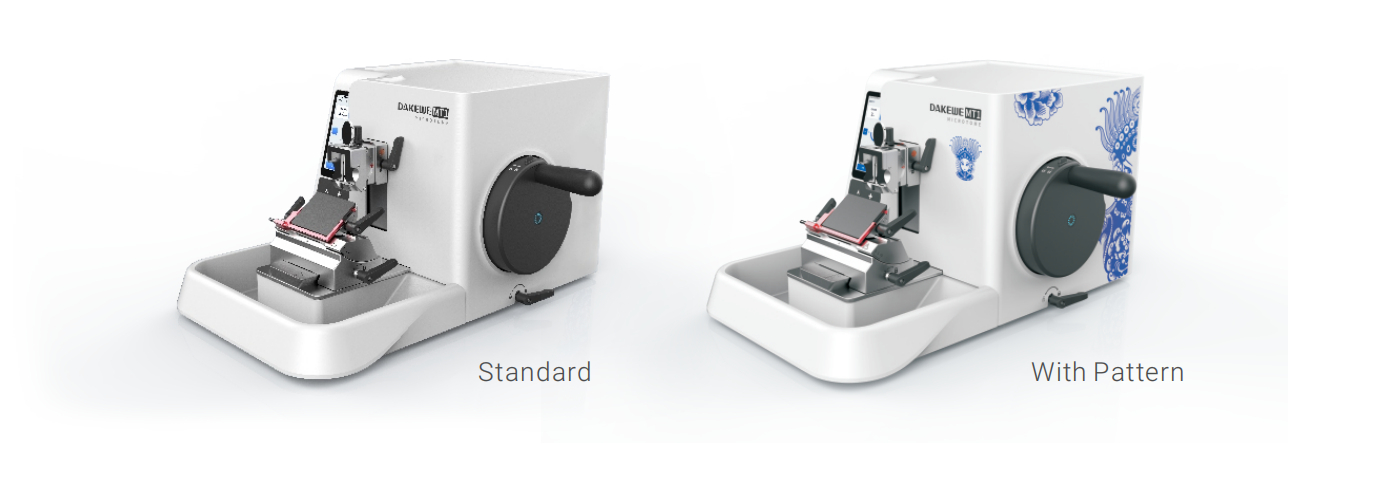

• Two appearances available

• Enlighten the laboratory with a bit of color and art



Specifications

General
Power	100 - 240 VAC, 50/60 Hz
Maximum consumption	50 VA
Dimension (W×D×H)	490 × 570 × 306 mm
Weight	5 inch color touch screen
Control panel	Yes
Watse tray	2000 mL volume, antistatic
Microtome
Section thickness range	0.5 - 100 μm
Setting values	For 0.5 - 5 μm in 0.5 μm increments For 5 - 20 μm in 1 μm increments For 20 - 60 μm in 5 μm increments For 60 - 100 μm in 10 μm increments
Trimming thickness range	1 - 600 μm
Setting values	For 1 - 10 μm in 1 μm increments For 10 - 20 μm in 2 μm increments For 20 - 50 μm in 5 μm increments For 50 - 100 μm in 10 μm increments For 100 - 600 μm in 50 μm increments
