Vacuum Evaporator

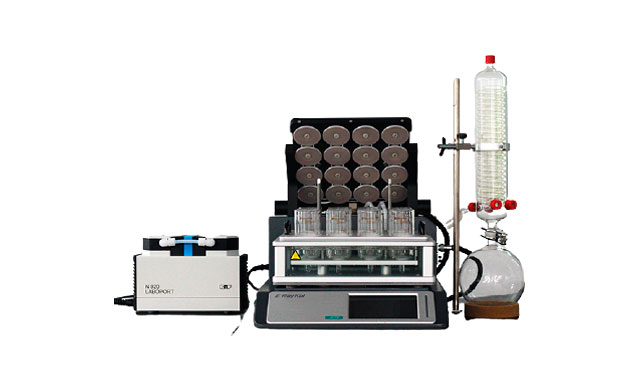

RayKol MPE High-throughput vacuum parallel evaporation system is a new automated evaporation system integrated the benefits of conventional rotary evaporation and high-throughput nitrogen evaporator. It adopts a precise digital vacuum control system based on uniform water bath heating, to ensure different samples under the same and consistent evaporating condition and avoid loss of the target compound under low vacuum, to maintain accuracy and reliability of analysis results.



Features

• Simultanueous concentration to 16 samples

• Highly efficient, minimal evaporation time

• The high recovery rate of solvents

• Transparent sink for clear observation

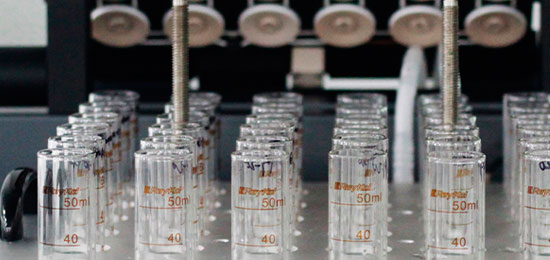

• Compatible with various sample vials

• Anti-boiling design to prevent analyte loss



Specifications

Parameter	Specification
Concentration	Vacuum negative pressure, water bath heating and oscillation
Sample capacity	16, 36
Sample vials	65mL/260mL glass tube with stem; 70mL/320mL glass tube
Temperature range of water bath	Room temperature to 80°C
Oscillation speed range	0 to 300rpm
Vacuum pump speed range	20 to 30L/min
Vacuum pump noise	<60dB
Software interface	7-inch built-in touch screen
Dimension	67cm x 44cm x 34cm
Weight	57kg
Power supply	200 to 240V, 50/60Hz
Power rate	2000W
Fume hood/ventilation	Required
Storage temperature	0 to 40°C
Storage humidity	20 to 85%
Operating temperature	10 to 40°C
Operating humidity	20 to 80%
